Tornado HI-FAN-16WMPRO-1P

4
ASSEMBLE THE FAN
1. Rear grill assembly
WARNING: Before use the fan, must assemble it by joining
every individual parts firmly together, and follow the steps
below for the work.

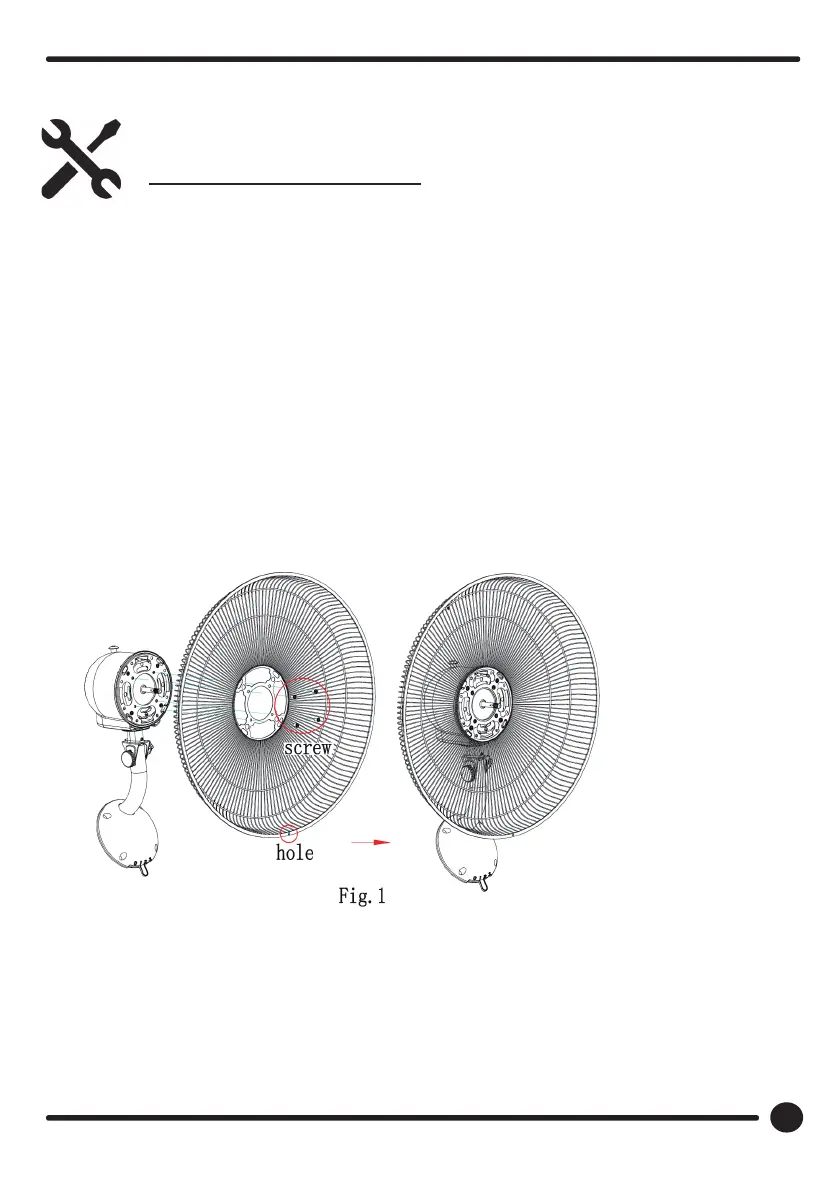

2-1. Unscrew the screw on the front of the motor (Fig. 1-A for HI-FAN-16WMPRO-1P,
Fig.1-B for HI-FAN-20WMPRO-1P).
2-2. Place the rear grill against the motor housing（Fig.1 & Fig.2）
2-3. Align the holes with the screw holes on the housing, then tighten the screw to
secure the rear grill to the motor (Fig.1 & Fig.2)
Fig.1-A for HI-FAN-16WMPRO-1P
-A
