26
Drive Engagement Control
(Model 03426 Only)

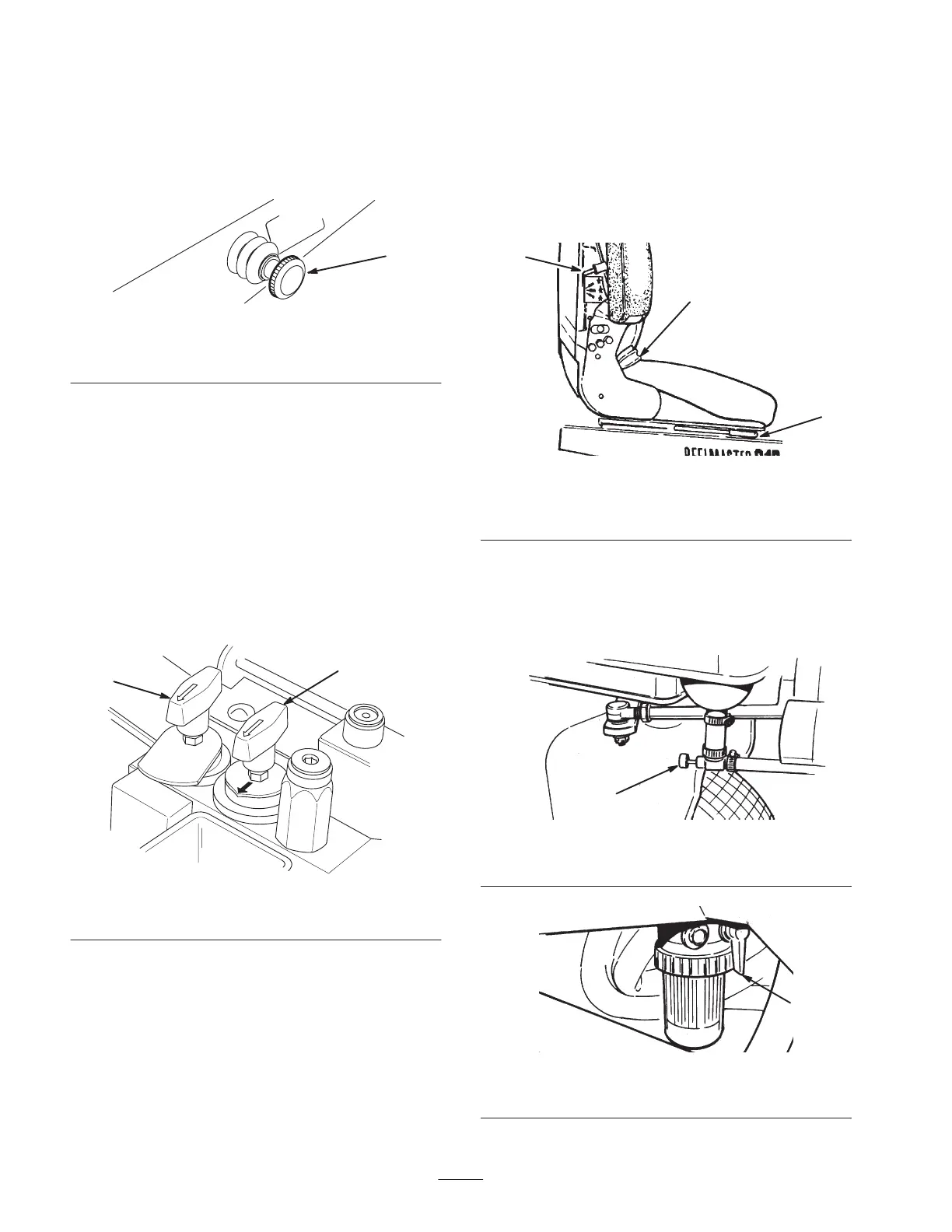

The drive engagement control is located on the lower left
side of the operator (Fig. 30). Pull the knob out for 2 wheel
drive; push the knob in for 3 wheel drive.
1
Figure 30
1. Drive engagement control—pull out for two wheel drive; push in
for three wheel drive
Reel Speed Control
To obtain the desired clip rate (reel speed), rotate the reel
speed control knob (Fig. 31) to the appropriate setting for
the height-of-cut setting and mower speed; refer to
Selecting the Clip Rate, page 29.
Backlap Control
Rotate the knob (Fig. 31) clockwise for backlapping and
counterclockwise for mowing. Do not change the knob
position when the reels are rotating.
1
2
Figure 31
1. Reel speed control 2. Backlap control
Seat Adjustments
Fore and Aft Adjustment (Fig. 32)—Move the lever on the
side of the seat outward, slide the seat to the desired
position, and release the lever to lock the seat into position.
Deluxe Seat Adjustments
Weight Adjustment (Fig. 32)—Push the lever up or down
to adjust to the operator’s weight. Lever up for a light
operator, lever in middle position for a medium weight
operator, or lever down for a heavy operator.
Inclining Backrest (Fig. 32)—Turn the handle to adjust the
angle of the backrest (Deluxe Seat only).
1
3
2
Figure 32
1. Fore and aft lever
2. Weight adjustment lever
3. Inclining backrest
Fuel Shut-Off Valves
Close the fuel shut-off valves, under the fuel tank (Fig. 33)
and on the fuel filter (Fig. 34), when storing the machine.
1
Figure 33
1. Fuel shut-off (under the fuel tank)
1
Figure 34
1. Fuel shut-off (on the fuel filter)
