44

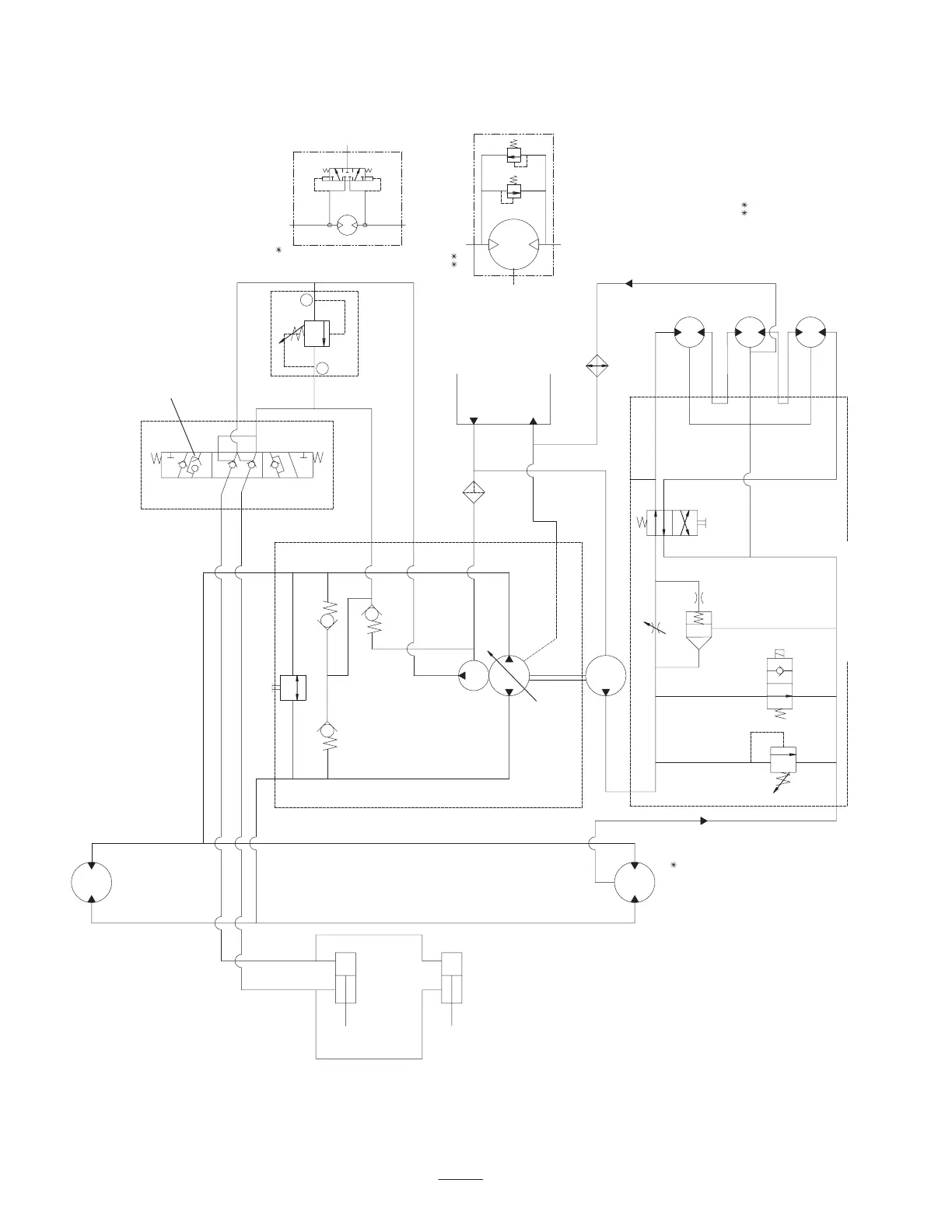

Hydraulic Schematic (Model No. 03422—2WD)
T-2438-3
TOP
BOTTOM
FRONT
WHEEL MOTOR
RIGHT
WHEEL MOTOR
LEFT
RH
CTR
LH
LIFT CYL
FRONT
LIFT CYL
REAR
VAL
VE TOP A
BOTTOM B
B-UPPER
A-LOWER
REVERSE
(FRONT
LINE)
FORWARD
(REAR
LINE)
R1
S1
LC1
LOGIC
VALVE
G1
P1
INNER
IN (FRONT)
OUT (REAR)
BOTTOM
FRONT
M2
D1
M1
M5
D3
M6
M4
D2
M3
1
2
T2
TOP
12 in3
[197cc]
TOW VAL
VE
REEL LIFT
CONTROL VAL
VE
12 in3
CHARGE RELIEF
100-150 psi
FIL
TER
10 MICRON NOM
LOW PRESSURE
COOLER
FLOW CONTROL V
AL
VE
MDI
BACKLAPPING
VALVE
REEL
RELIEF
3000 psi
REEL
ON-OFF
VALVE
REEL SPEED CONTROLLER
GEAR PUMP
.49 in3
LIFT RELIEF
475 psi
RESERVOIR
2.3 GALL
ON
[8.7 LITER]
OUTER
[197cc]
[8.0cc]
TRACTION PUMP
1.24 in3
[19.7cc]
CHARGE PUMP
.42 IN3
[6.9CC]
REEL MOTORS
1.54 in3
[25.2cc]
FCI
LEFT WHEEL MOTOR SCHEMA
TI
C
REEL MOTOR SCHEMA
TIC
CROSS-OVER RELIEF
1500 PSI
NOTE; THIS SYMBOL REPRESENTS THE CHECK V
ALVE
OPEN B
Y THE SPOOL CAM PIN
43
45
Table of Contents
Table of Contents
2
Introduction
2
Safety
3
Safe Operating Practices
3
Toro Mower Safety
4
Sound Pressure Level
5
Vibration Level
5
Safety and Instruction Decals
6
Slope Chart
9
Specifications
11
General Specifications
11
Measurements
12
Optional Equipment
12
Setup
12
Loose Parts
12
Installing the Rear Wheel
14
Installing the Seat
14
Adjusting the Rear Carrier Frame Height
15
Mounting the Carrier Frames to the Cutting Units
15
Installing the Front Lift Arms
15
Mounting the Cutting Unit Drive Motors
16
Mounting the Cutting Units
17
Installing the Counterbalance Springs
17
Adding Rear Ballast
19
Affixing the Decals
20
Activating and Charging the Battery
20
Before Operating
21
Checking the Crankcase Oil
21
Filling the Fuel Tank
21
Checking the Cooling System
22
Checking the Hydraulic System Fluid
22
Inspecting the Fuel Filter
23
Checking the Tire Pressure
24
Checking the Reel to Bedknife Contact
24
Checking the Torque of the Wheel Nuts
24
Operation
24
Controls
24
Hour Meter
25
Temperature Gauge
25
Oil Pressure Light
25
Parking Brake
25
Seat Adjustments
26
Starting and Stopping the Engine
27
Bleeding the Fuel System
27
Checking the Operation of the Interlock Switches
28
Towing the Traction Unit
28
Operating Characteristics
29
Selecting the Clip Rate (Reel Speed)
29
Training Period
30
Before Mowing
30
Transport Operation
30
Inspection and Clean-Up after Mowing
30
Maintenance
31
Recommended Maintenance Schedule
31
Daily Maintenance Checklist
32
Service Interval Chart
33
Greasing the Bearings and Bushings
33
Removing the Hood
35
General Air Cleaner Maintenance
35
Cleaning the Radiator and Screen
36
Changing the Engine Oil and Filter
36
Changing the Hydraulic System Fluid and Filter
36
Hydraulic System Test Ports
37
Replacing the Fuel Filter
37
Adjusting the Transmission for Neutral
38
Adjusting the Belts
39
Adjusting the Traction Pedal
39
Adjusting the Traction Pedal Damper
40
Adjusting the Hand Brake
40
Battery Care
40
Storing the Battery
41
Fuses
41
Backlapping
41
Electrical Schematic
43
Hydraulic Schematic (Model No. 03422-2WD)
44
Hydraulic Schematic (Model No. 03427-3WD)
45
California Emission Control System Warranty Statement
49
The Toro General Commercial Products Warranty
52
