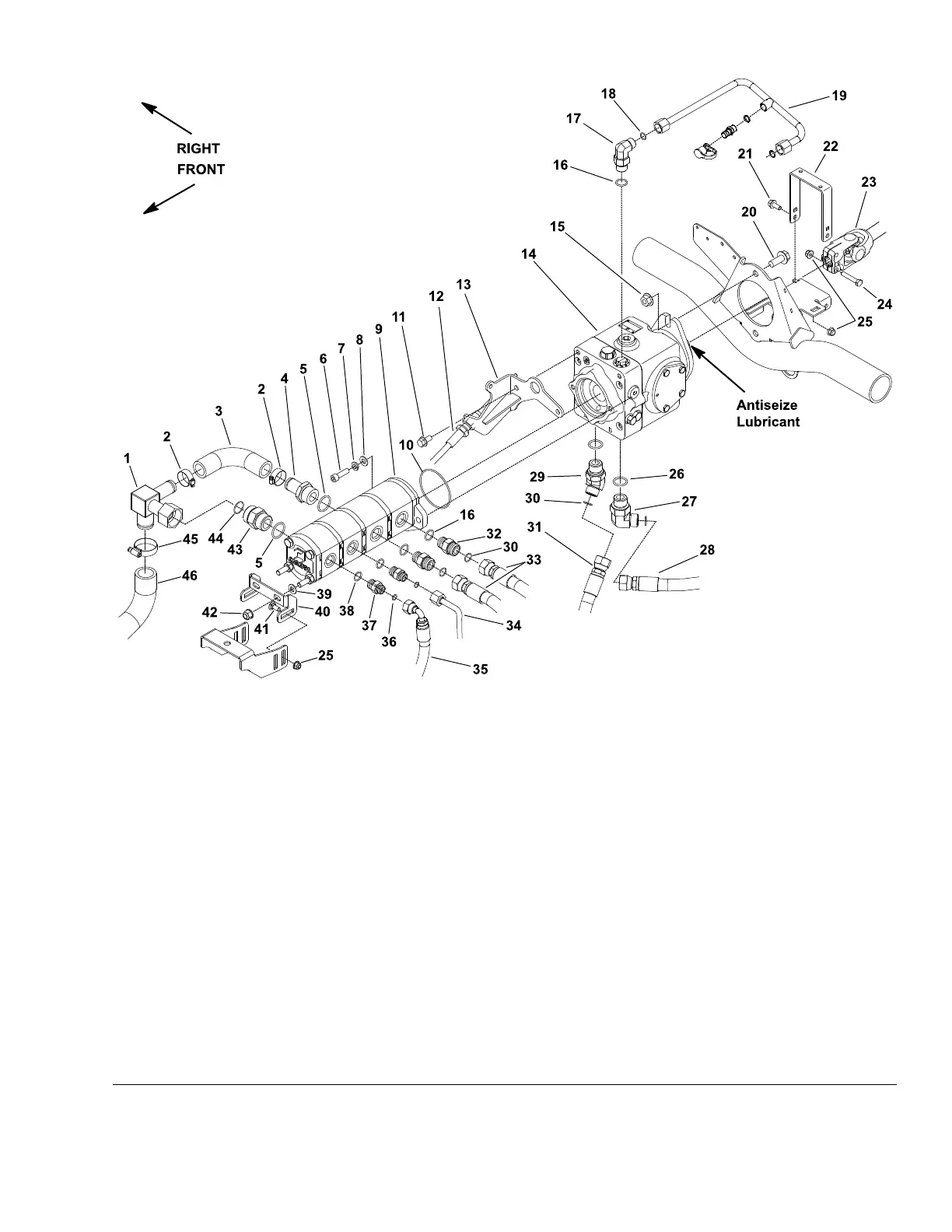

HydraulicPumpAssembly

g213693

Figure151

1.Manifoldtube17.90°hydraulictting33.Hydraulichose(2each)

2.Hoseclamp(2each)18.O-ring

34.Hydraulictube

3.Hydraulichose19.Hydraulictube35.Hydraulichose

4.Barbedtting20.Flange-headscrew(2each)36.O-ring(2each)

5.O-ring(2each)21.Flange-headscrew(2each)37.Straighttting(2each)

6.Socket-headscrew(2each)22.Guardhoop38.O-ring(2each)

7.Lockwasher(2each)23.Driveshaftassembly39.Flatwasher(2each)

8.Flatwasher(2each)24.Bolt(2each)

40.Pumpsupportbracket

9.Gearpumpassembly25.Flangenut(6each)41.Carriagescrew(2each)

10.O-ring26.O-ring(2each)42.Locknut(2each)

11.Flange-headscrew(2each)27.90°hydraulictting43.Straighttting

12.Tractioncable28.Hydraulichose

44.O-ring

13.Tractioncablebracket

29.45°hydraulictting

45.Hoseclamp

14.Piston(traction)pumpassembly30.O-ring(4each)

46.Hydraulichose

15.Flangenut(2each)

31.Hydraulichose

16.O-ring(3each)32.Straighttting(2each)

Note:Thetractionpumpandgearpumpshouldberemovedfrommachineasan

assembly.Onceremovedfromthemachine,pumpscanbeseparatedforservice.

Reelmaster

5410/5510/5610Series

Page6–163

HydraulicSystem:ServiceandRepairs

15216SLRevC
