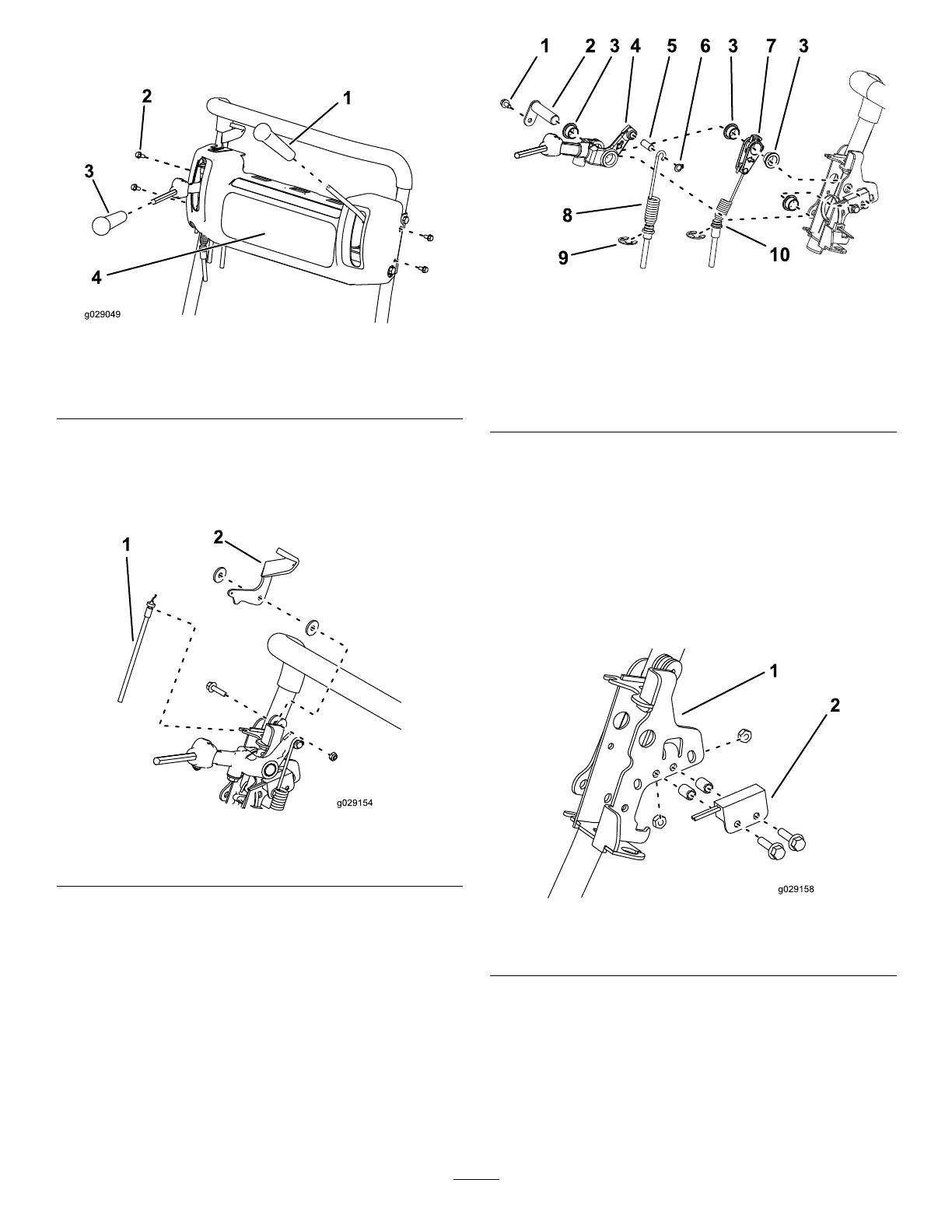

7.Removeanddiscardtheconsolecover(Figure

3).

g029049

Figure3

1.Brakelevergrip3.Tractionlevergrip

2.Bolt

4.Consolecover

8.Removeanddiscardthethrottle-controlcable

(Figure4).

9.Removeanddiscardthethrottlelever,butretain

themountinghardware(Figure4).

g029154

Figure4

1.Throttle-controlcable2.Throttlelever

10.Removethetractionleverandtractioncable

fromtheexistingtractionbracket(Figure5).

Keepallhardware.

g274782

Figure5

1.Bolt6.Retainingring

2.Reelleverpin7.Reellever

3.Bushing8.Tractioncable

4.Tractionlever9.E-clip

5.Dowelpin10.Reelcable

11.Removethehandleassemblyfromthetraction

unit;refertoyourtractionunitOperator’s

Manual.

12.Removeanddiscardtheexistingtraction

bracket,butretaintheproximityswitchand

mountinghardware(Figure6).

Note:Thetractionbracketcannotberemoved

directlyfromthehandle;slideitoffthebottomof

thehandleassembly.

g029158

Figure6

1.Tractionbracket2.Proximityswitch

13.Removetheexistingenginemountingbolts,

washers,andnuts.

14.Removetheenginefromthetractionunit.
