Greensmaster 3250--D
Page 5 -- 14
Electrical System
Seat Switch
The s eat switch is normally open and closes when the
operator is on the seat. If the neutral switch or traction
interlock switch is open when the operator raises out of
the seat, the engine will stop. The switch and its electri-
cal connector are located directly under the seat.
Testing
1. Make sure the engine is off. Remove seat from the
support assembly by removing four (4) lock nuts from
the seat bolts.
2. Disconnect wire harness connector from the seat
switch.
3. Check the continuity of the switch by connecting a
multimeter (ohms setting) across the switch connector
terminals.
4. Withnooperatorintheseat,thereshouldbeno con-
tinuity between the terminals.
5. Press directly onto the seat switch through the seat
cushion.Thereshouldbecontinuity astheseatcushion
approaches the bottom of its travel.
6. Replace seat switch if testing determines that it is
faulty.
7. When switch testing is complete, connect wire har-
ness electrical connector to switch. Reinstall seat.

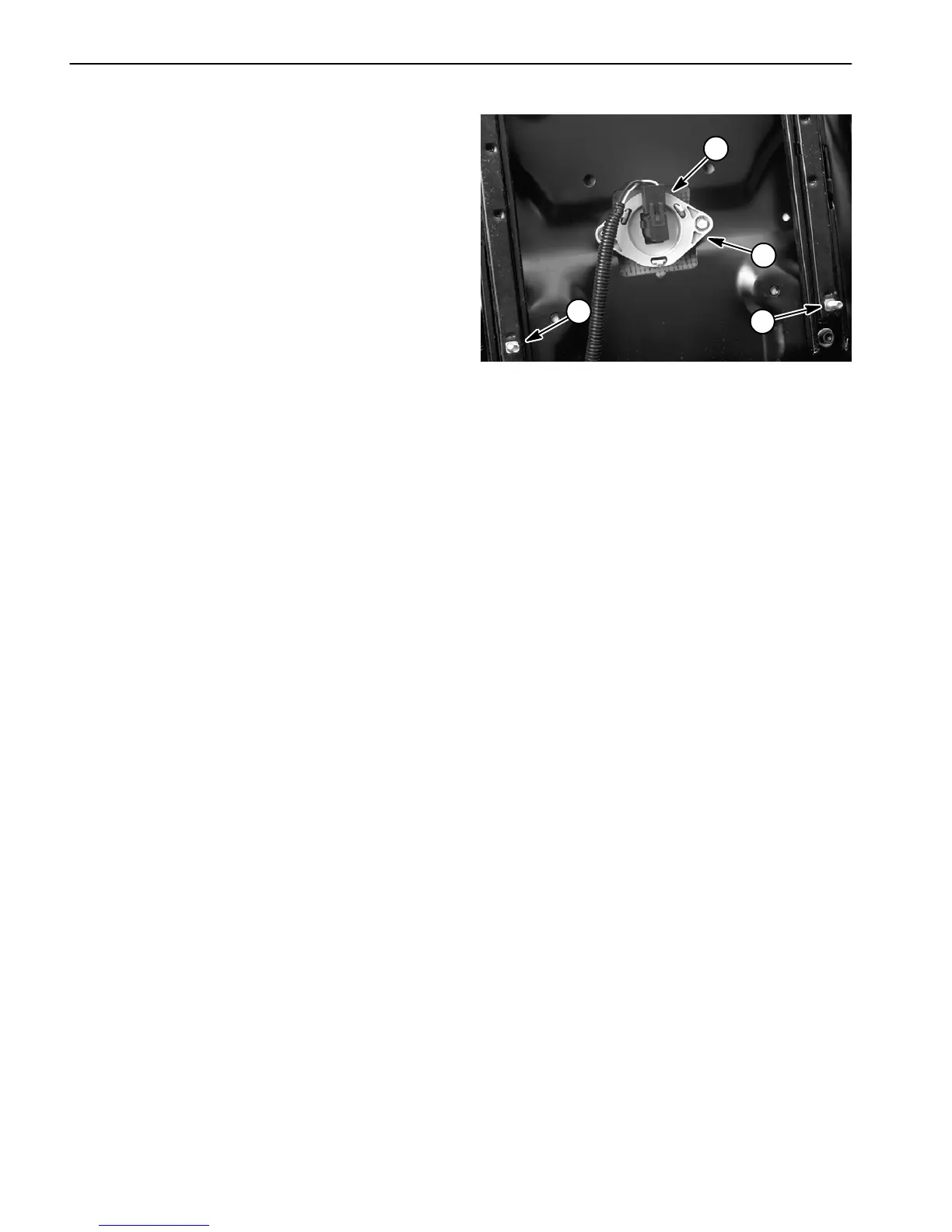

1. Seat bolts
2. Electrical connector
3. Seat switch
Figure 12
2
1
3
1
