g014968
1
2

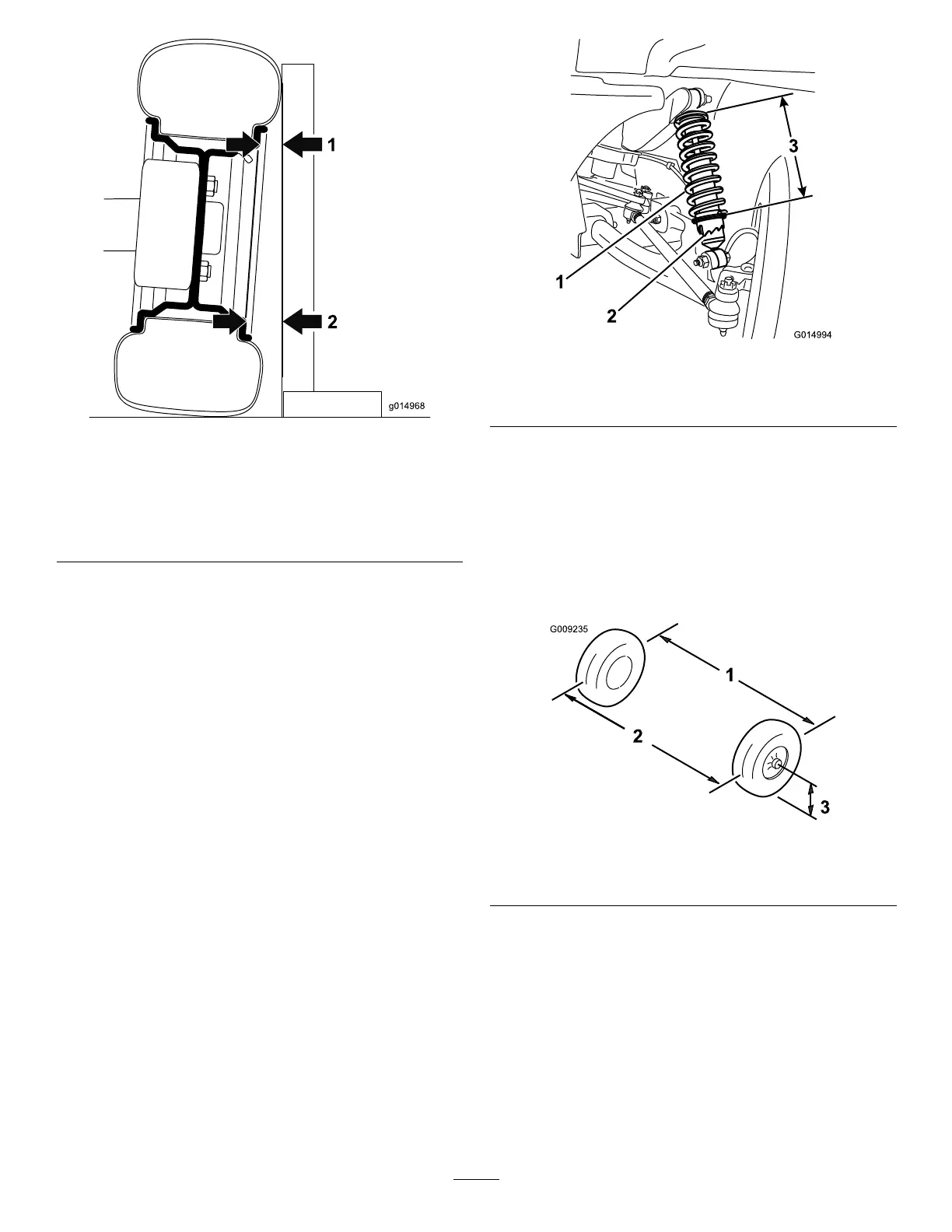

Figure32
Left,frontwheelshownfromthefront;theangleis
exaggeratedforillustrativepurposes
1.Measurehere
2.Measurehere—shouldbe2.3mm(0.09inch)largerthan
themeasurementat1
2.Measurefromthesamepartoftherimonthetopand
bottomofthetiretothesquare(Figure32).
Note:Thedistanceofthebottommeasurement
shouldbe2.3mm(0.09inch)largerthanthetop
measurement.Completethemeasurementonboth
fronttiresbeforeadjusting.
Completethefollowingprocedureforeachtirethat
needsadjusting:
3.UsingtoolTORO6010,rotatethecollarontheshock
absorbertochangethelengthofthespring(Figure33).
•Ifthebottommeasurementwastooshort,reduce
thelengthofthespring.
•Ifthebottommeasurementwastoolong,increase
thelengthofthespring.
G014994
1
2
3
Figure33
1.Shock-absorberspring3.Springlength
2.Collar
4.Onalevelsurface,rollthemachinestraightback2to3
m(6to10ft)andthenstraightforwardtotheoriginal
startingposition.
5.Repeatthisprocedure,startingwithstep1untilthe
camberissetcorrectlyforbothfrontwheels.
6.Measurethedistancebetweenbothofthefronttiresat
theaxleheightatboththefrontandrearofthefront
tires(Figure34).
G009235
1
2
3
Figure34
1.Tirecenterline—back3.Axlecenterline
2.Tirecenterline—front
7.Ifthemeasurementdoesnotfallwithin0to6mm(0
to1/4inch),loosenthejamnutsatbothendsofthe
tierods(Figure35).
