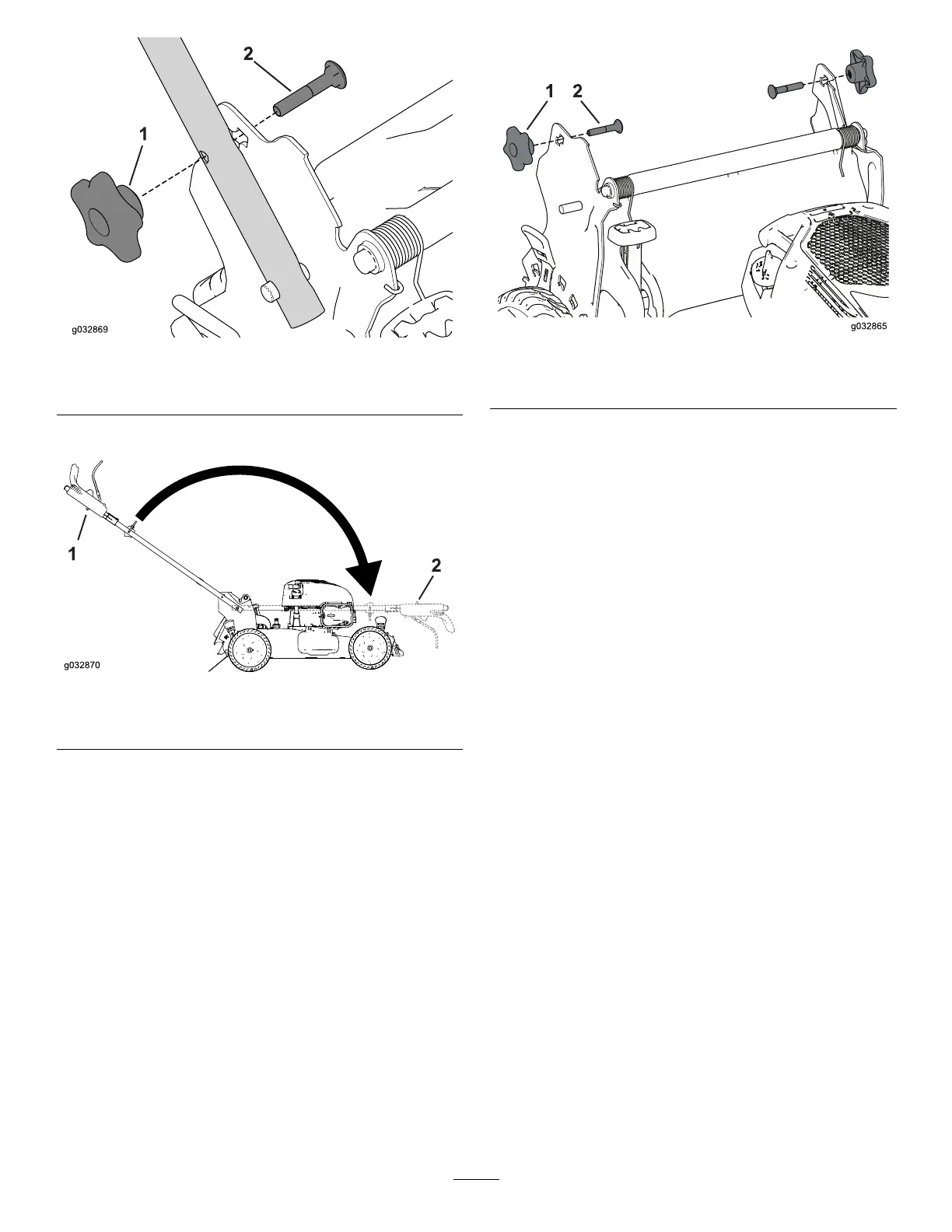

g032869
Figure23
1.Handleknob(2)2.Carriagebolt(2)
3.Foldthehandlebyrotatingitforward(Figure24).
g032870
Figure24
1.Operatingposition
2.Foldedposition
4.Insertthecarriagebolt(withtheboltheadtoward
theinside)throughthehandlebracketandthe
upperholeinthehandleend.Ensurethatthe
squareedgesofeachcarriagebolttsintothe
upperorlowersquareholeinitsrelatedhandle
bracket(Figure25).
g032865
Figure25
1.Handleknob(2)2.Carriagebolt(2)
5.Looselyinstallthehandleknobsandcarriage
boltsonthehandlebrackets.
6.Tounfoldthehandle,referto1Assemblingand
UnfoldingtheHandle(page6).
19
