Toro 22155 - Page 7

Note:Youcansetthehandleheightinoneoftwo
positions(Figure5).Setthehandletoaheightthatis
comfortableforyou.

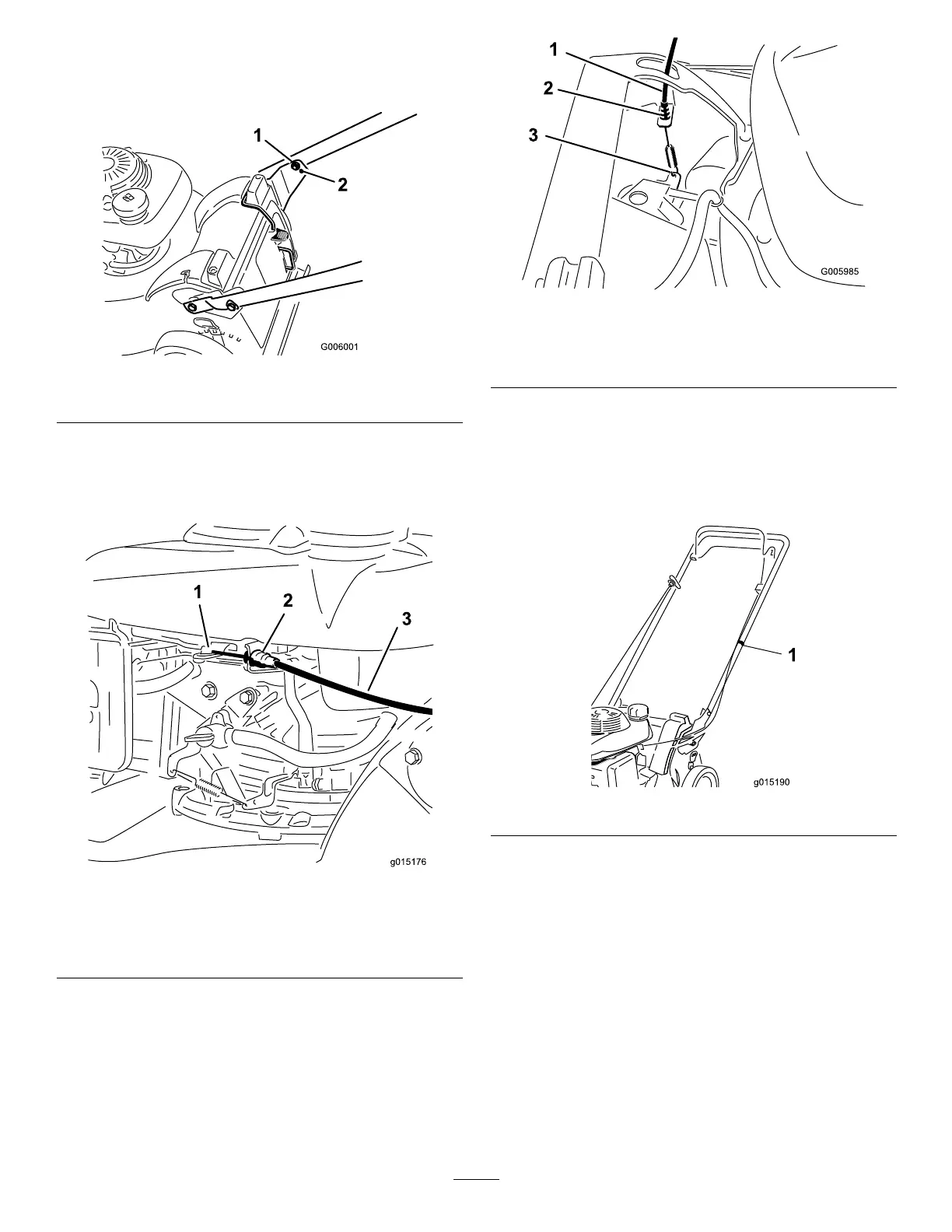

Figure5
1.Higherhandleposition2.Lowerhandleposition
Note:Torqueallboltsto120in-lb(13.6N·m).
3.Routethebladebrakecabledowntheinsideofthe
handleandattachthecableend(Figure6).
Figure6
1.AttachcableZ-ttingend
here
3.Bladebrakecable
2.Insertcablejacketend
here
4.Forself-propelmodels,routetheself-propeldrive
cabledowntheinsideofthehandle,threadthecable
throughtheopeningonthelefthandsideofthe
housing,andattachthecableend(Figure7).
Figure7
1.Self-propeldrivecable
3.Attachcableendhere
2.Insertcablejacketend
here
5.Ensurethattheself-propeldriveisproperlyadjusted.
RefertoAdjustingtheSelf-propelDriveinthe
Maintenancesection.
6.Tietheloosecablestothehandle(Figure8)using
thecabletiefromtheloosepartsbag.
Figure8
7.Installthebackcoverwiththetwoscrewsyou
removedinstep1.
