10
CAUTION
POTENTIAL HAZARD
If you leave the key in the ignition switch, someone could start the engine.
WHAT CAN HAPPEN
Accidental starting of the engine could seriously injure you or other bystanders.
HOW TO AVOID THE HAZARD
Remove the key from the ignition switch before you do any maintenance.

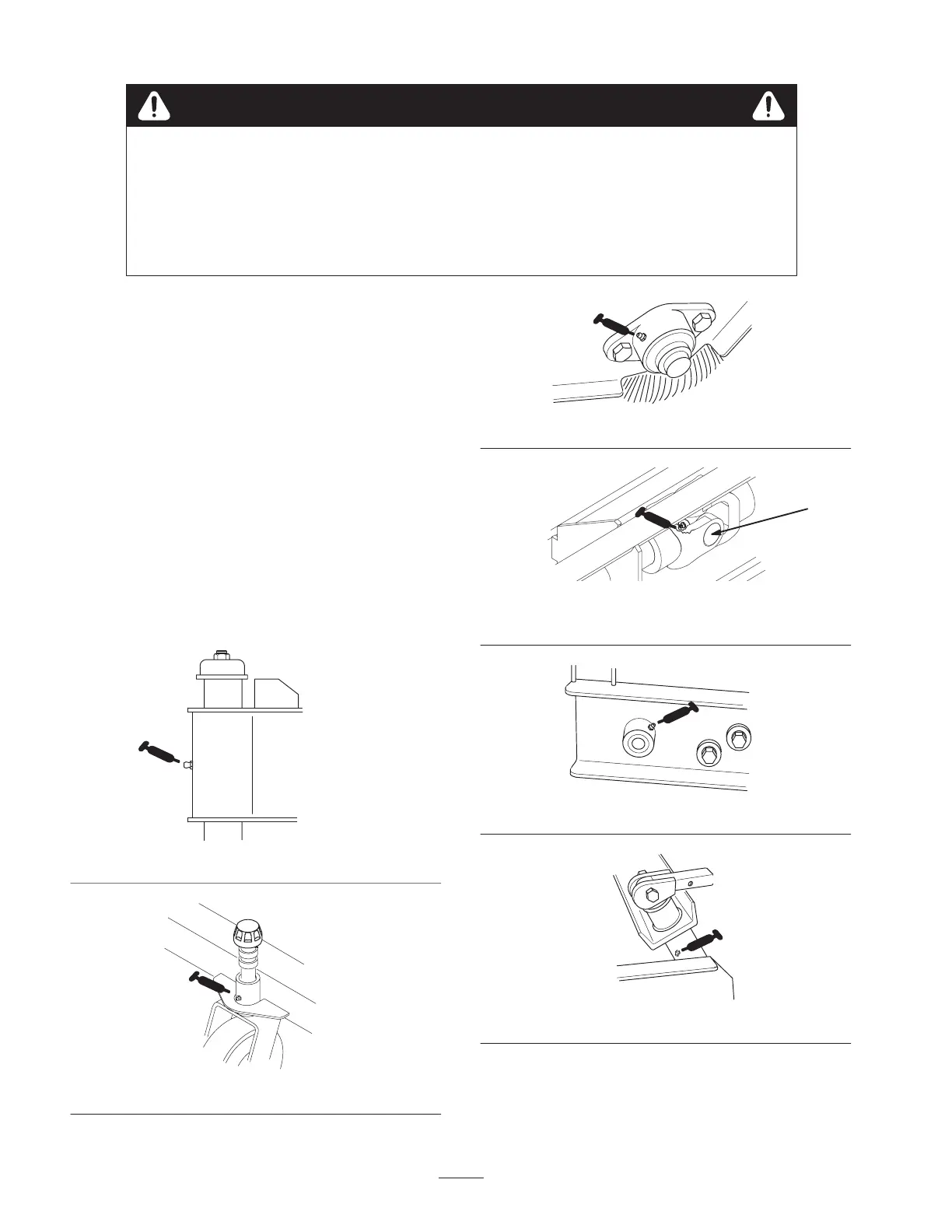

Greasing and Lubrication
Service Interval/Specification
Grease one fitting on the broom pivot shaft (Fig. 13) with
a corrosion resistant, calcium-sulphonate based grease
before each use. Grease 8 other fittings, located on each
castor shaft (Fig. 14, only one side shown), on the right of
the the axle (Fig. 15), on the motor/axle linkage (Fig. 16),
on the right and left arms (Fig. 17, only one side shown),
and on the loader arm clamps (Fig. 8, only one side
shown), every 8 operating hours. Grease all fittings
immediately after every washing.
Grease Type: corrosion resistant, calcium-sulphonate
based grease (pivot shaft only) and general-purpose grease
(all other fittings).
Fitting Locations
m–4132
Figure 13
Figure 14
m–4134
Figure 15
m–4180
1
Figure 16
1. Knuckle joint inside the broom axle
m–4133
Figure 17
m–4130
Figure 18
How to Grease
1. Lower the broom/loader arms and stop the engine.
Remove the key.
