7
m–4139
1

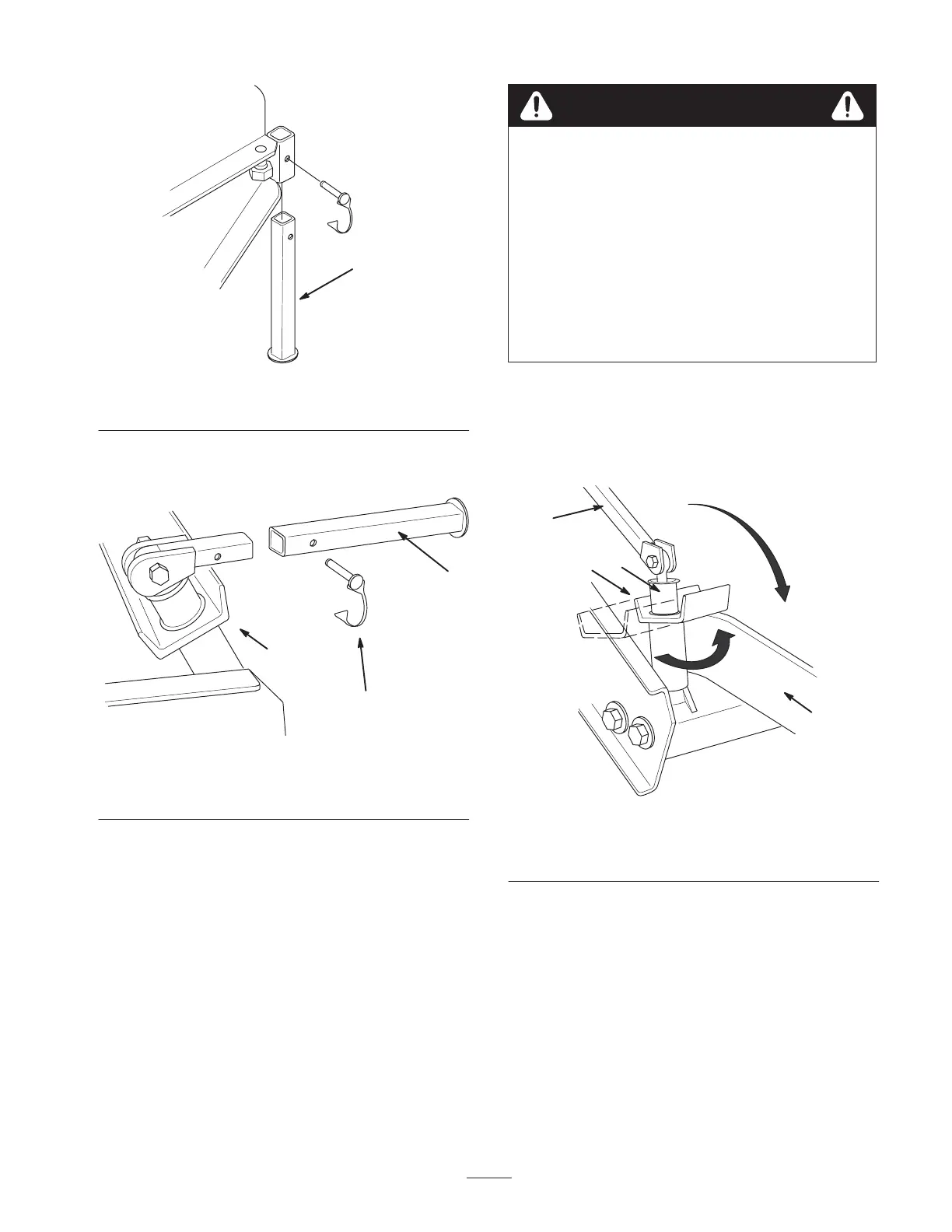

Figure 7
1. Front leg/clamp lever
8. Install the clamp levers on the loader arm clamps and
secure them with latch pins (Fig. 8).
m–4130
1
2
3
Figure 8
1. Loader arm clamp
2. Clamp lever
3. Latch pin
9. If necessary, release the loader arm clamps by
swinging the clamp levers up and over the clamps.
WARNING
POTENTIAL HAZARD
• The loader arm clamps are spring loaded and
can propel the clamp levers up and forward at
great speeds when released.
WHAT CAN HAPPEN
• The clamp lever could strike you or a
bystander causing severe injury.
HOW TO AVOID THE HAZARD
• Ensure that you do not stand in the path of the
clamp lever and that all bystanders are clear of
the area.
10. Swing the loader arm clamps over the loader arms and
secure them by pulling the clamp levers down and
back (Fig. 9).
Note: Ensure that the rubber spring is compressed
approximately 1/4 in. (0.6 cm) when the clamp is secured.
m–4131
2
1
3
4
Figure 9
1. Loader arm clamp
2. Loader arm
3. Clamp lever
4. Rubber spring
11. Connect the hydraulic hoses; refer to you traction unit
manual for more information.
