TUFF TORQ TRANSAXLE
3 - 8 260 Series Tractor Service Manual

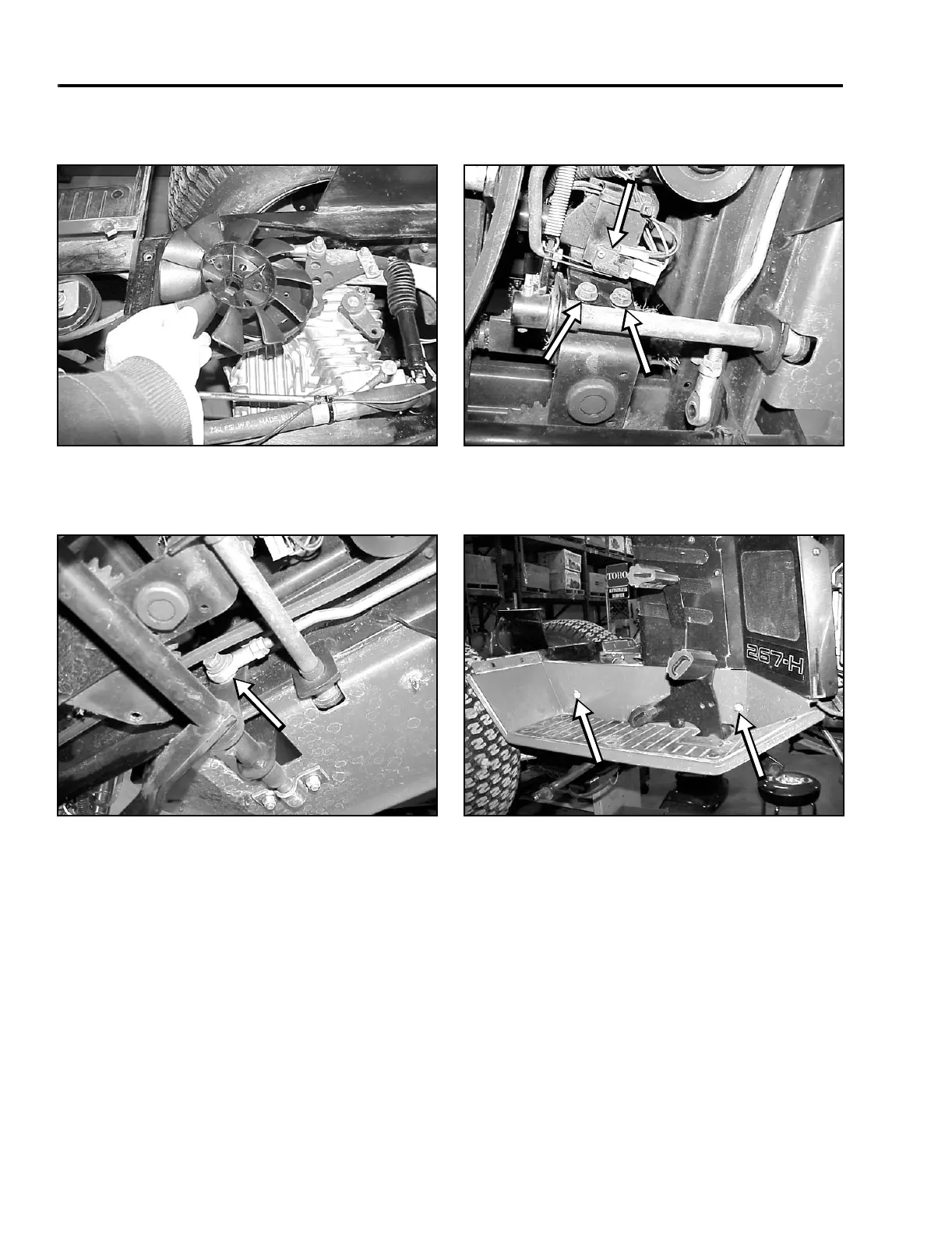

6. Remove the 3 screws retaining the transaxle fan
to the input pulley (Figure 88).
Figure 88
MVC-344X
7. Unbolt the hydrostatic control rod from the
forward/reverse control pedal (Figure 89).
Figure 89
MVC-345X
8. Remove the 2 bolts holding the safety neutral
switch bracket (Figure 90).
Figure 90
MVC-346X
9. Remove the 2 carriage bolts holding the right-
hand footrest to the frame (Figure 91).
Figure 91
MVC-350X
