Fuses

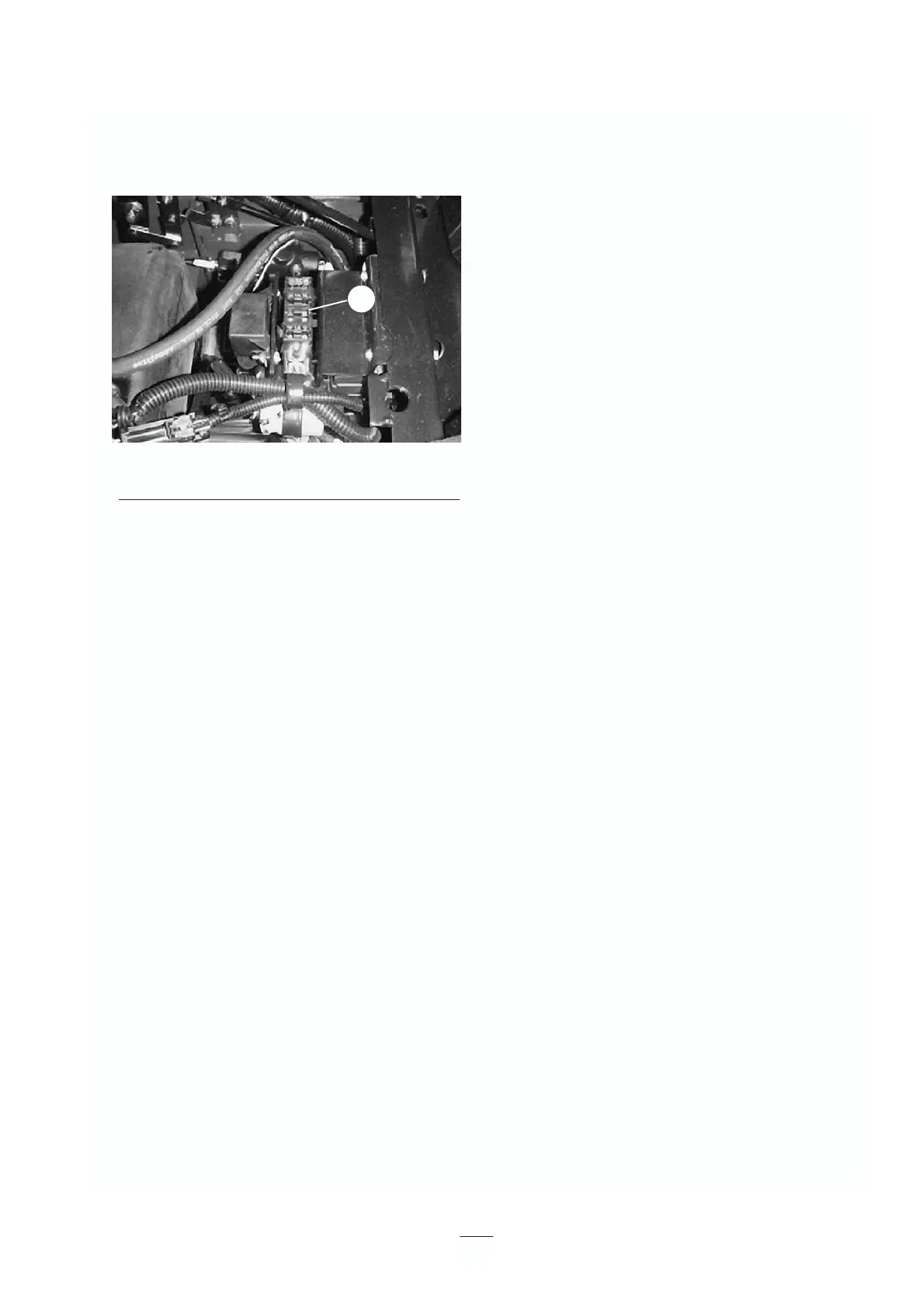

Fuses are accessible under the seat plate (Fig. 40).
Figure 40
1. Fuse block
Storage
Traction Unit
1. Thoroughly clean the traction unit, cutting unit
and the engine, paying special attention to these
areas:
• Radiator and radiator screen
• Underneath the cutting unit
• Under the cutting unit belt covers
• Counterbalance springs
• Power take-off shaft assembly
• All grease fittings and pivot points
• Remove control panel and clean the inside
of the control box
• Beneath the seat plate and the top of
transmission
2. Check the tire pressure. Inflate all traction unit
tires to 138 kPa.
3. Remove, sharpen and balance the cutting unit’s
blades. Reinstall the blades and torque the blade
fasteners to 85-110 ft-lb (115-149 N m).
4. Check all fasteners for looseness; tighten as
necessary.
5. Grease or oil all grease fittings, pivot points, and
transmission by-pass valve pins. Wipe off any
excess lubricant.
6. Lightly sand and use touch up the paint on where
paint is scratched, chipped or rusted. Repair any
dents in the metal body.
7. Service the battery and cables as follows:
A. Remove the battery terminals from the
battery posts.
B. Clean the battery, terminals and posts with a
wire brush and baking soda solution.
C. Coat the cable terminals and battery posts
with Grafo 112X skin-over grease (Toro Part
No. 505-47), or petroleum jelly to prevent
corrosion.
D. Slowly recharge the battery for 24 hours
every 60 days to prevent lead sulfation of
the battery.
Engine
1. Drain the engine oil from the oil pan and replace
the drain plug.
2. Remove and discard the oil filter. Install a new
filter.
3. Refill the engine with 4 quarts (3.8 l) of
recommended motor oil. Refer to Changing the
Engine Oil and Filter, page 29..
4. Start the engine and run it at idle speed for two
minutes.
5. Drain diesel fuel from the fuel tank, fuel lines,
pump, filter and separator. Flush the fuel tank
with clean diesel fuel and connect all fuel lines.
6. Thoroughly clean and service the air cleaner
assembly.
7. Seal the air cleaner inlet and the exhaust outlet
with weather-proof masking tape.
