Index Service Part # File Name
Description
Qty
1 A00-0001 DLP-HANDLE Outside Push Button Handle 1
2 A00-0003 RIGHT-LATCH Suicide Door Right Latch 1
3 A00-0013 TEKT-0009 5MM Bushing 17
4 A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB 3
5 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB 1
6 A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB 4
7 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 10
8 A00-0022 FLANGE_BOLT_M6X25 Flange Bolt, M6x25, YD 1
9 A00-0040 REID-RST-160-RST-163 Grab Handle 1
10 A00-0041 TEKTITE-DECAL Tektite Cab Decal - Solid White 1
11 A00-0042 TEKT-ASM-001R Right Cab Door Hinge Weldment, Upper 1
12 A00-0118 FLANGE_BOLT_1-4X1 Flange Bolt, 1/4" x 1", YD 2
13 A00-0177 TEKT-0068 Handle Washer Spacer 1
14 A00-0229 TEKT-ASM-029R Right Door Hinge Weldment, Lower 1
15 T02-0001 TOG4000-012 Door Glass 1
16 T02-0008 TOG4000-037 Door Weatherseal 1
17 T02-0012 TOG4000-ASM-010R Right Door Frame Weldment 1

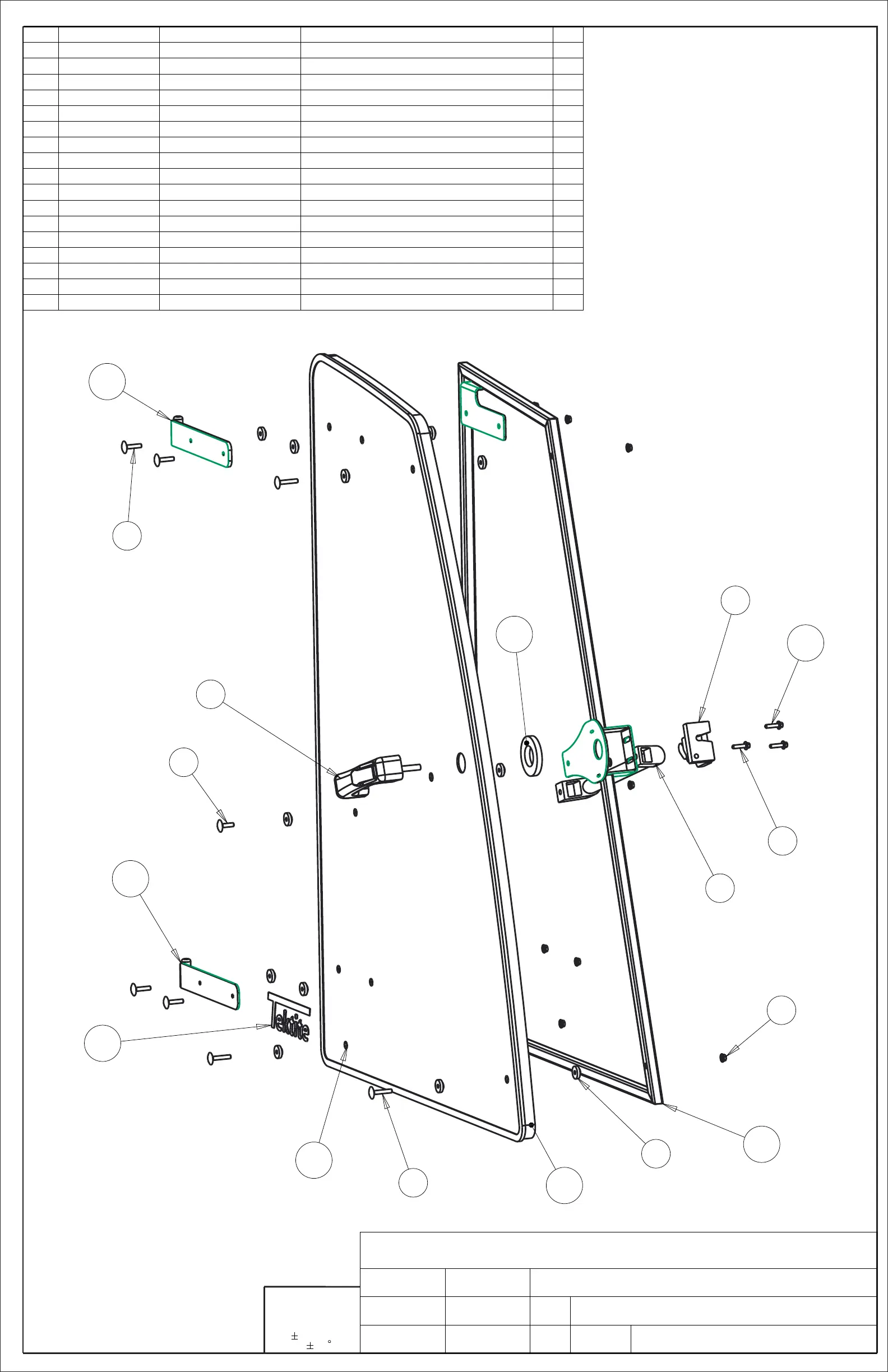

Right Door Assembly
Daryl Furkalo
2014-04-02 Imp.
TOG4000-ASM-008-DOOR-RT-OP
B
SCALE 0.180
1
2
3
4
5
6
7
8
12
9
10
14
15
17
11
16
13
