Index Service Part #File Name
Description
Qty
1 A00-0166 TEKT-0103 Condensor Fan 2
2 A00-0220 TEKT-0101 Base Condenser Coil 1
3 A00-0221 TEKT-0102 Condensor Assembly Steel Shroud 1

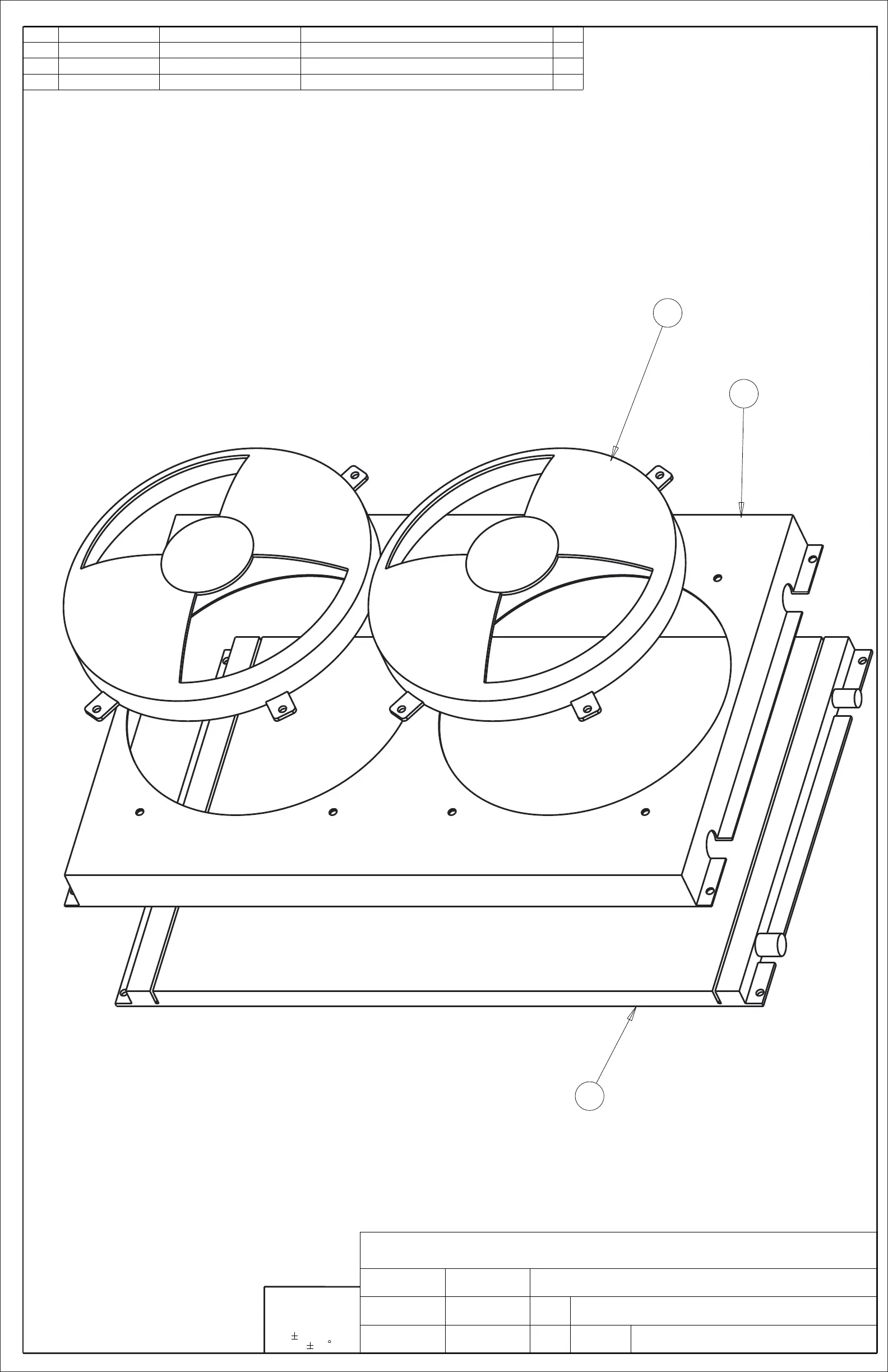

Condensor Assembly Breakdown
Daryl Furkalo
2013-07-04 Imp.
TEKT-ASM-026
B
SCALE 0.400
1
3
2
