Toro 30609 - Page 184

Groundsmaster 4000--D/4010--DHydraulic System Page 4 -- 138

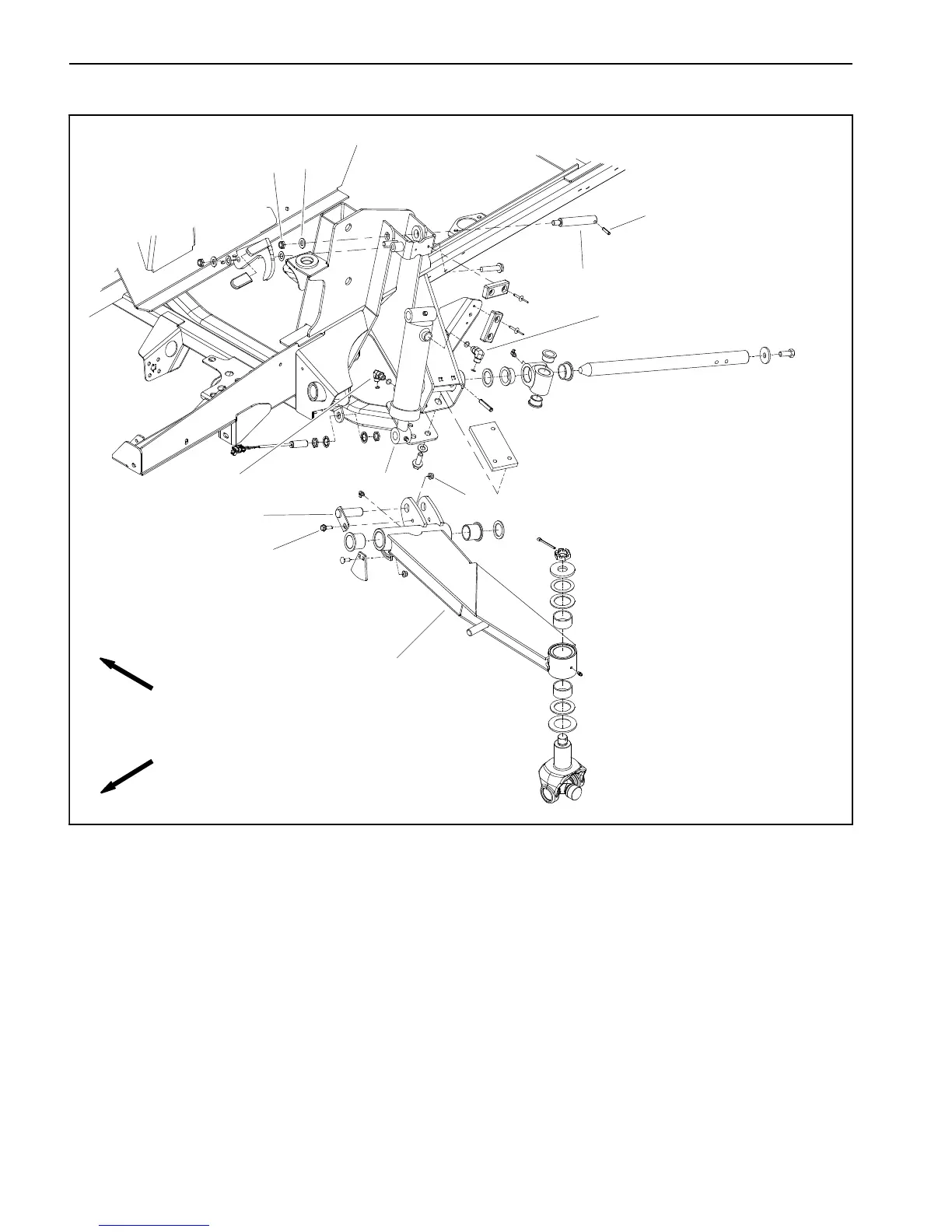

Side Deck Lift Cylinders
1. Lift arm assembly (LH shown)
2. Shoulder screw
3. Flange nut
4. Pin assembly
5. Lock nut
6. Flat washer
7. Cylinder pin
8. Spring pin
9. Lift cylinder
10. 90
o
hydraulic fitting
11. 90
o
hydraulic fitting
Figure 105
FRONT
RIGHT
2
3
6
8
9
10
11
1
5
7
4
