Page 10 -- 11
Groundsmaster 4000--D/4010--D

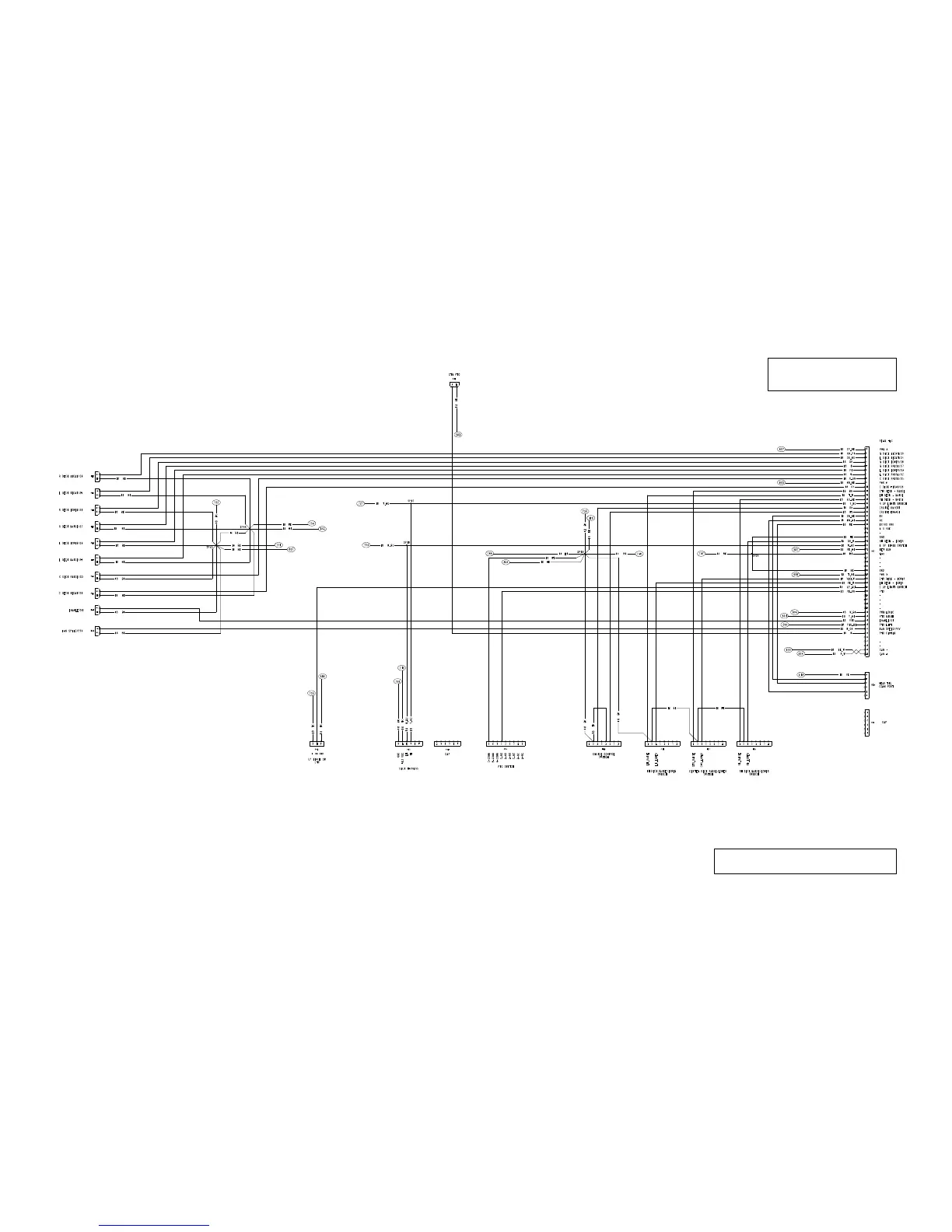

Platform Wire Harness Diagram
Sheet 2 of 2
REFERENCE NUMBER WILL BE IDENTIFIED.
NOTE: THE PLATFORM WIRE HARNESS DIAGRAM IS SHOWN ON TWO (2)
SHEETS. WHEN A CONDUCTOR CONTINUES ON ANOTHER SHEET, A
DRAWING DESIGNATIONS IN THIS CHAPTER
NOTE: THIS DRAWING IDENTIFIES WIRE GAUGE
SIZE AND WIRE COLOR. REFER TO ELECTRICAL
FOR ADDITIONAL INFORMATION.
To Next Page
