2.Placetheaircleanerassemblyontotheaircleaner
baseandsecureitwiththe2wingnuts(Figure24).
3.Placetheaircleanercoverintopositionandtighten
thecoverknob(Figure24).
ServicingtheEngineOil
ServiceInterval/Specication
Changetheengineoilasfollows:
•Aftertherst8operatinghours
•Afterevery100operatinghours
Note:Changetheoilmorefrequentlywhenthe
operatingconditionsareextremelydustyorsandy.
OilType:Detergentoil(APIserviceSF,SG,SH,
orSJ)
CrankcaseCapacity:58ounces(1.7liter)withthe
lterremoved;51ounces(1.5liter)withoutthelter
removed

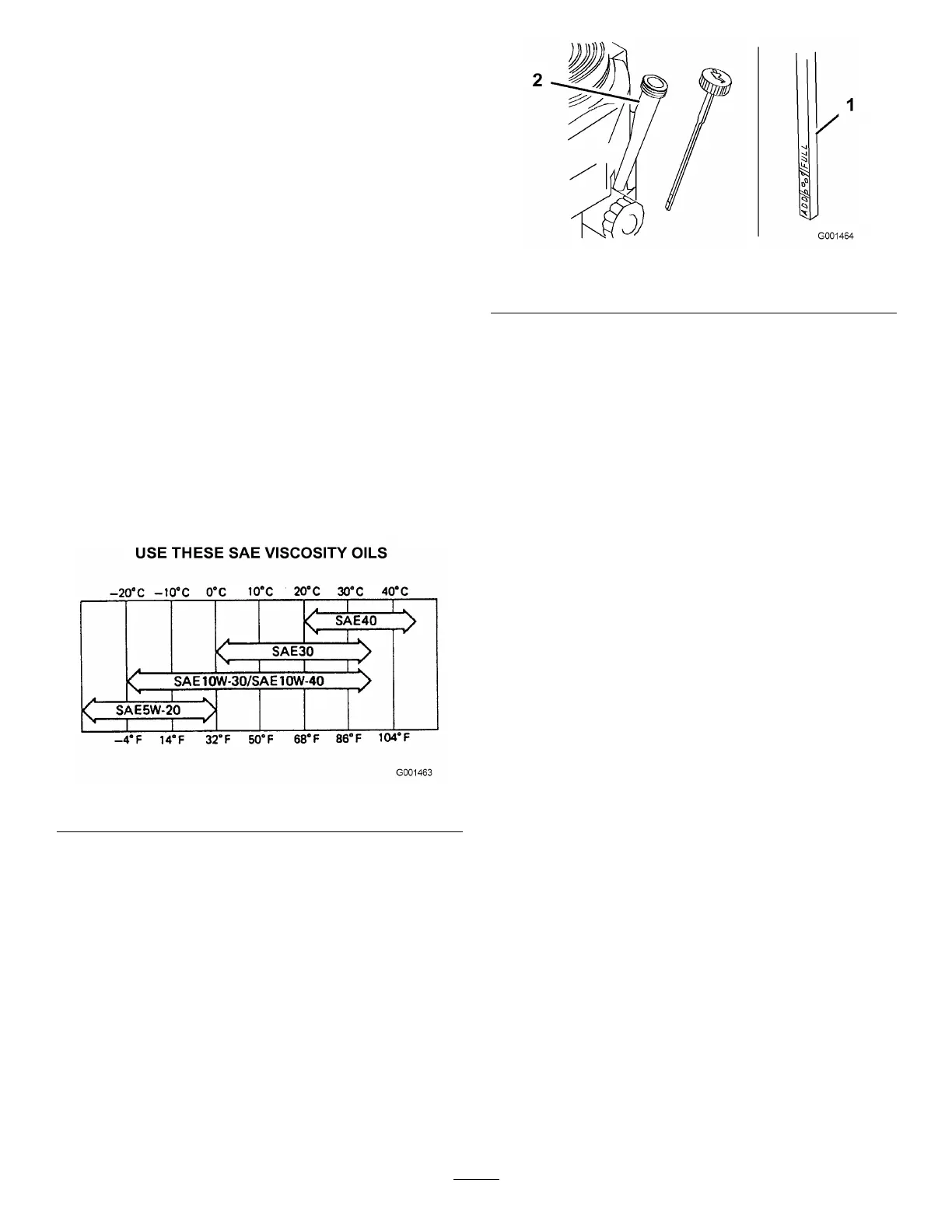

Viscosity:Refertothetablein(
Figure25).
Figure25
CheckingtheEngineOilLevel
1.Parkthemachineonalevelsurface.
2.DisengagethePTOandsettheparkingbrake.
3.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
4.Cleanaroundtheoildipstick(Figure26)sothatdirt
cannotfallintothellerholeanddamagetheengine.
Figure26
1.Oildipstick
2.Fillertube
5.Unscrewtheoildipstickandwipetheendclean
(Figure26).
6.Slidetheoildipstickfullyintothellertube,butdo
notthreadontotube(Figure26).
7.Pullthedipstickoutandlookattheend.Iftheoil
levelislow,slowlypouronlyenoughoilintotheller
tubetoraisetheleveltotheFullmark.
Important:Donotoverllthecrankcasewith
oilandruntheengine;enginedamagecan
result.
ChangingtheOil
1.Starttheengineandletitrunveminutes.This
warmstheoilsoitdrainsbetter.
2.Parkthemachinesothatthedrainsideisslightly
lowerthantheoppositesidetoassuretheoildrains
completely.
3.DisengagethePTOandsettheparkingbrake.
4.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
5.Slidethedrainhoseovertheoildrainvalve.
6.Placeapanbelowthedrainhose.Rotateoildrain
valvetoallowoiltodrain(Figure27).
7.Whenoilhasdrainedcompletely,closethedrain
valve.
8.Removethedrainhose(Figure27).
Note:Disposeoftheusedoilatarecyclingcenter.
