Throttle operation
Cutting of foot
PowerShift operation
Belt routing
Assembly
Note: Determine the left and right sides of the snowthrower by standing in the normal operating position.
Loose Parts
DESCRIPTION QTY. USE
Short spacer
Long spacer
Pushnuts
Wheels
1
1
2
2

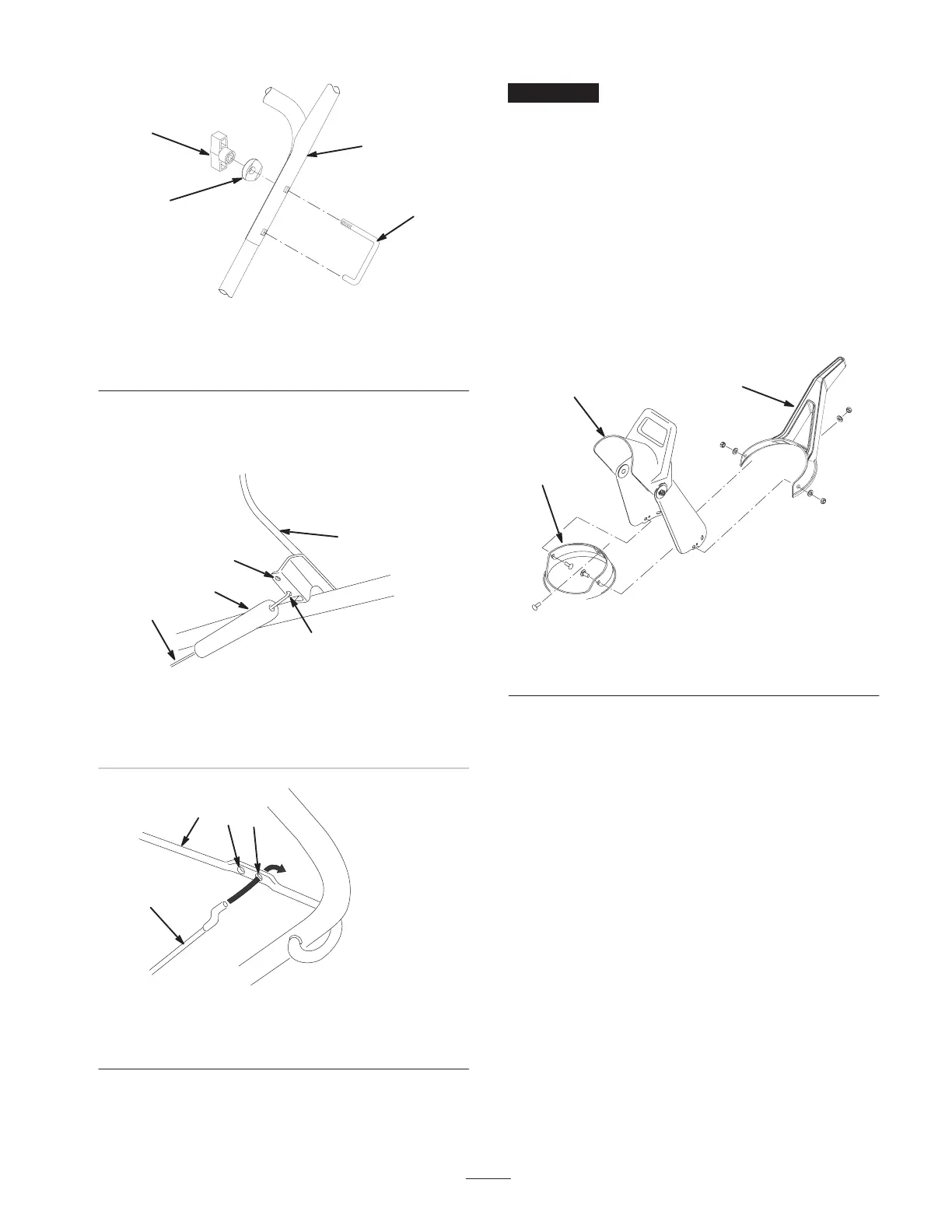

Installing the wheels
Carriage bolts
Locknuts
Discharge chute
Chute handle (Models 38428 and 38429 only)
3
3
1
1
Installing the discharge chute
Plastic bushing
Capscrews
Locknuts
Chute crank and mounting bracket
1
2
2
1
Installing the chute crank (Models 38441 and
38442 only)
