Toro 38757 - Engaging;Disengaging Blades, Shutting Off Engine; Adjusting Discharge Chute and Deflector

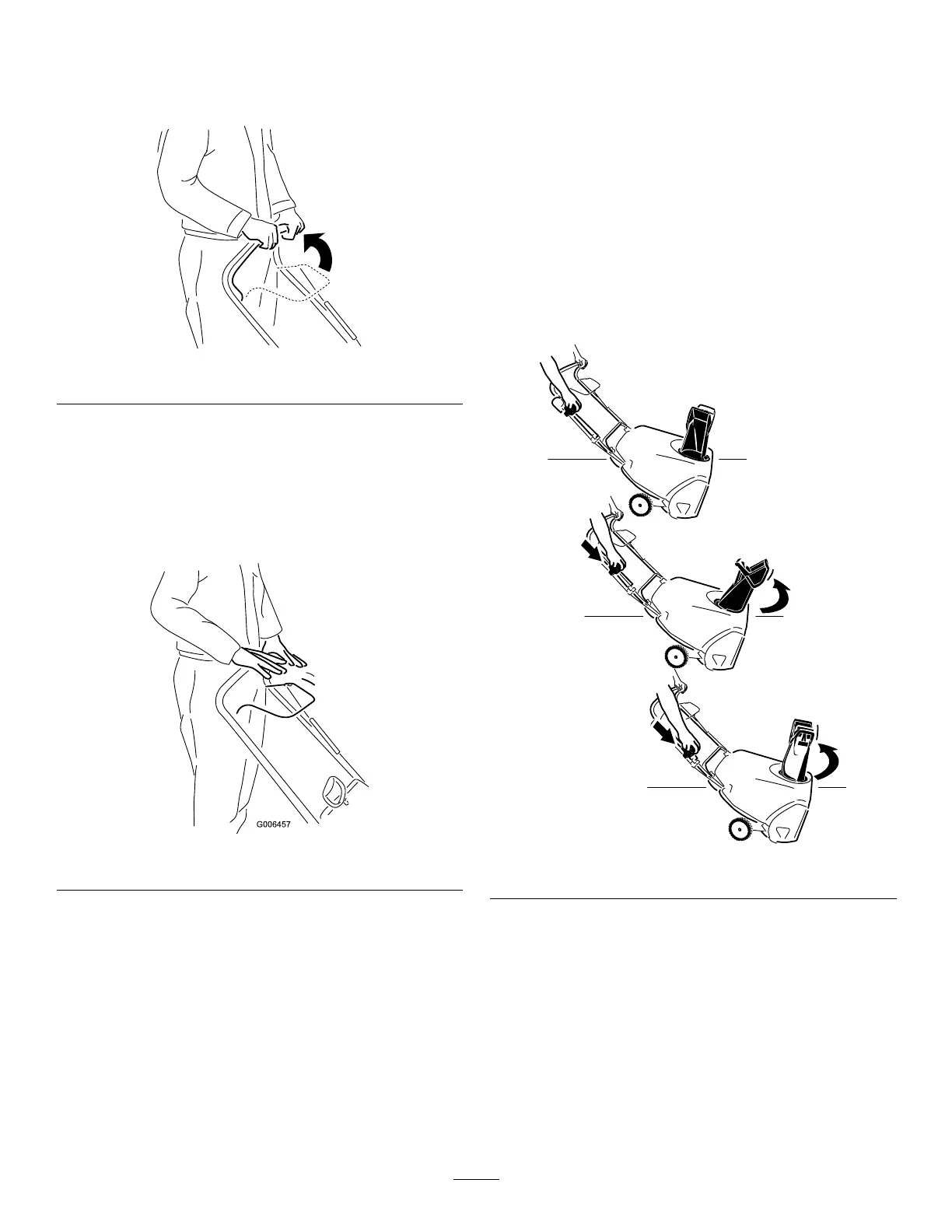

EngagingtheRotorBlades
Toengagetherotorblades,holdthecontrolbar
againstthehandle(Figure14).
g216251
Figure14
DisengagingtheRotor
Blades
Todisengagetherotorblades,releasethecontrolbar
(Figure15).
g006457
Figure15
ShuttingOfftheEngine
Toshutofftheengine,removethekeyfromthe
ignition.
AdjustingtheDischarge
ChuteandChuteDeector
Toadjustthedischargechute,pressthetriggerofthe
QuickShoot™controlontherightsideofthehandle
andmoveitupordownalongthehandle.Movingthe
controldownthehandlerotatesthedischargechute
totheleft;movingthecontrolupthehandlerotates
thedischargechutetotheright(Figure16).
g280416
Figure16
Toraiseorlowertheangleofthechutedeector,
pressthetriggeronthechutedeectorandmovethe
chutedeectorupordown(Figure17).
13
