g008238

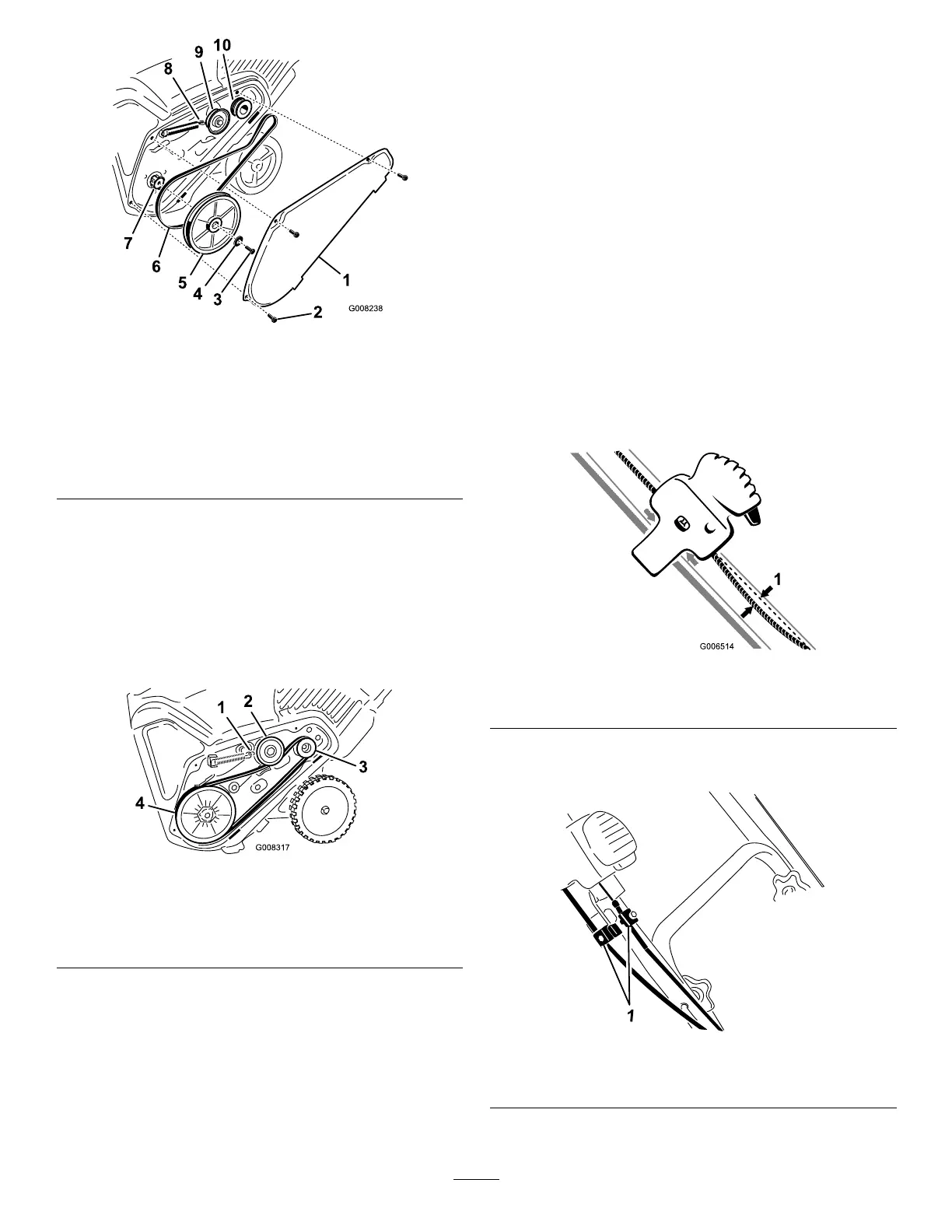

Figure28
1.Drive-beltcover6.Drivebelt
2.Bolt(3)7.Rotorshaft
3.Rotor-pulleybolt
8.Brakespring(unhookfrom
idlerarmhere)
4.Curvedwasher
9.Idlerpulley
5.Rotorpulley10.Enginepulley
2.Unhookthebrakespringfromtheidlerarmto
releasethebelttension(Figure28).
3.Removethescrewandcurvedwasherthat
holdstherotorpulley(Figure28).
4.Removetherotorpulleyandthedrivebelt
(Figure28).
5.Installthenewdrivebelt,routingitasshownin
Figure29.
g008317
Figure29
1.Brakespring(installon
idlerarmhere)
3.Enginepulley
2.Idlerpulley4.Rotorpulley
Note:Routethenewdrivebeltrstaroundthe
enginepulley,thentheidlerpulley,andnally
aroundthelooserotorpulleypositionedjust
abovetherotorshaft(Figure28).
6.Installtherotorpulleyontotherotorshaft(Figure
28).
7.Installthecurvedwasherandtherotor-pulley
boltandtightenthemsecurely(Figure28).
Note:Theconcavesideofthecurvedwasher
goesagainsttheoutsideofthepulley.
8.Installthebrakespringontotheidlerarm(Figure
29).
9.Installthedrive-beltcoverwiththeboltsthatyou
removedinstep1.
Note:Ensurethatthedrivebeltisproperly
adjustedandoperating;refertoCheckingthe
ControlCable(page15)andAdjustingthe
ControlCable(page16).
AdjustingtheQuickShoot
Control
Ifthereismorethan13mm(1/2inch)ofslackinthe
QuickShootcable(Figure30)orthedischargechute
doesnotrotateleftandrightinequalangles,adjust
theQuickShootcontrolcables.
g006514
Figure30
1.13mm(1/2inch)maximumslack
1.Loosenthe2QuickShootcontrol-cableclamps
(Figure31).
g286559
Figure31
1.Cableclamps
