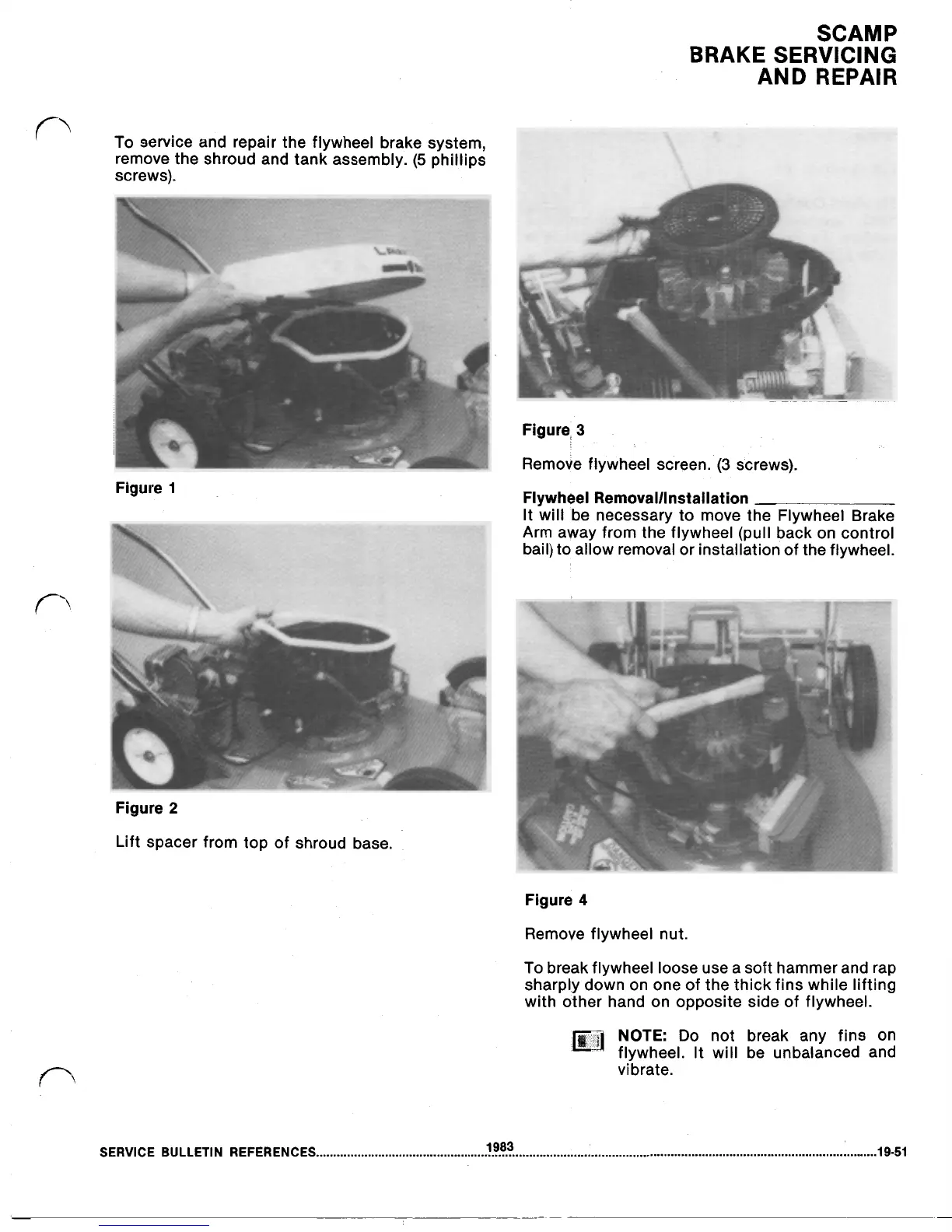

SCAMP
BRAKE SERVICING
AND REPAIR
To
service and repair the flywheel brake system,
remove the shroud and tank assembly.
(5
Phillips
screws).
Figure
1
Figure
2
Lift spacer from top of shroud base.
Figure,
3
Remove flywheel screen.
(3
screws).
Flywheel Removal/Installation
It will be necessary to move the Flywheel Brake
Arm away from the flywheel (pull back on control
bail) to allow removal or installation of the flywheel.
Figure
4
Remove flywheel nut.
To
break flywheel loose use a soft hammer and rap
sharply down on one of the thick fins while lifting
with other hand on opposite side of flywheel.
NOTE:
Do
not break any fins on
flywheel. It will be unbalanced and
vibrate.
SERVICE BULLETIN REFERENCES 19-51
1983
