Toro 500 EFI - Page 75

73
FI671A
FI670

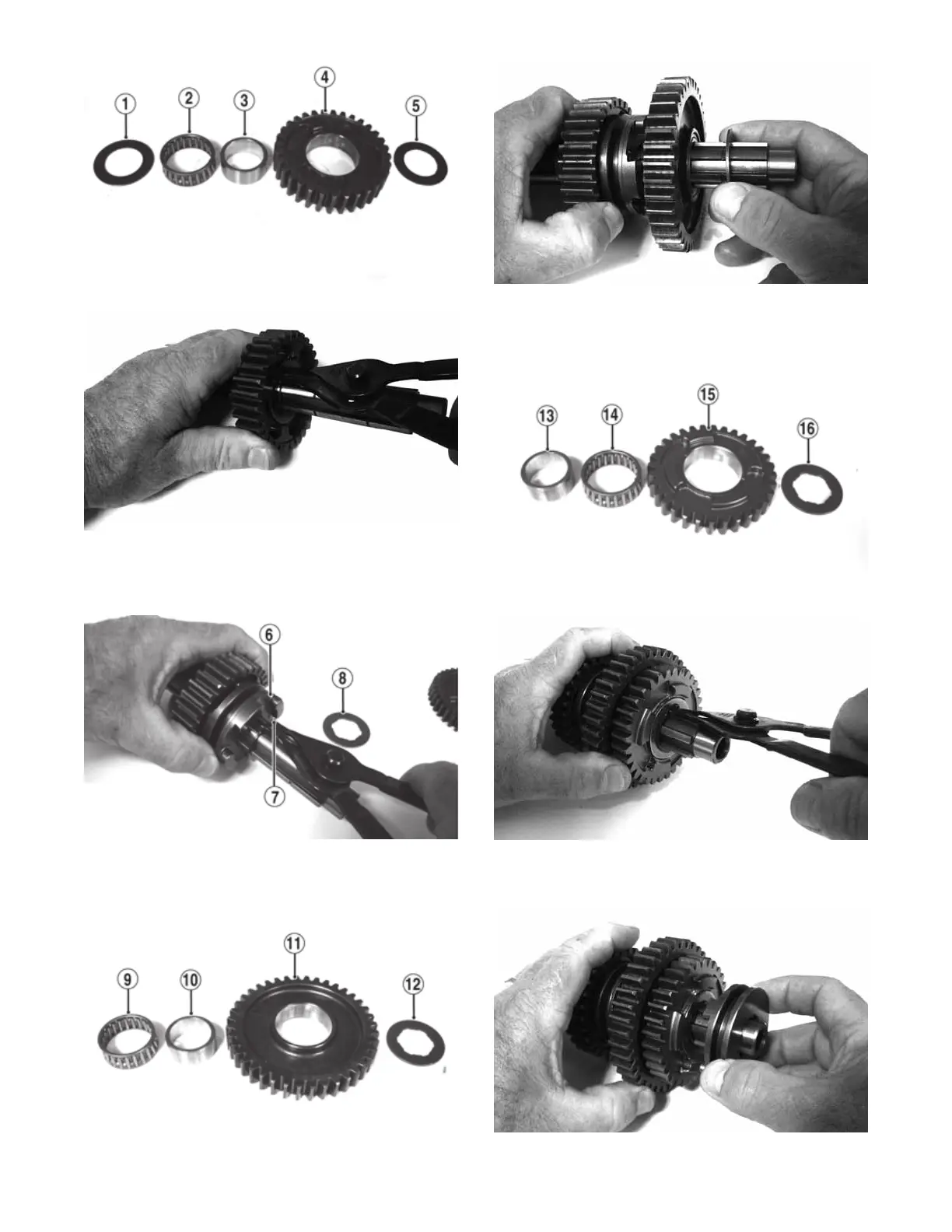

2. Install the high/low shift dog (6) on the countershaft
and secure with snap-ring (7); then install the splined
washer (8).
FI668A
3. Install the low driven bushing (10), bearing (9), and
gear (11) on the countershaft; then install splined
washer (12).
FI667A
FI666
4. Place the reverse driven bushing (13) onto the shaft;
then install the bearing (14), gear (15), and splined
washer (16). Secure with a snap-ring.
FI665A
FI664
5. Install the reverse dog on the shaft; then place the
shift forks and shift shaft into position.
FI663
