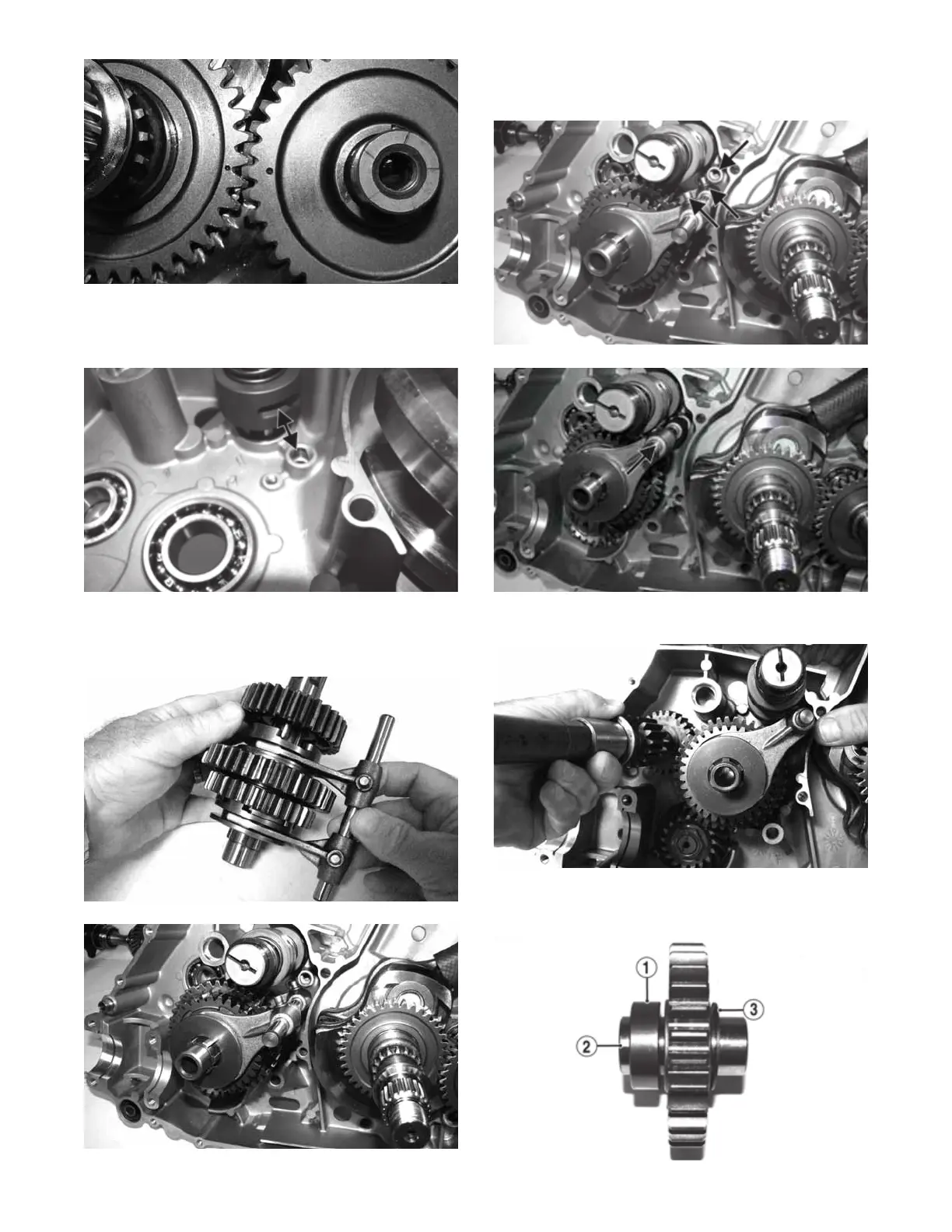

6. Align the shift cam fork slots with the shift fork shaft
locating boss and with a washer on each end, install
in the crankcase.
FI652A
7. Place the shift forks into position on the assembled
countershaft and install into the crankshaft as an
assembly.
FI662
FI653
8. Align the shift forks to allo w engagement with the shift
cam; then engage the shift forks and slide the shift fork
shaft into the locating boss in the crankcase.
FI653A
FI655A
9. Install the input driveshaft.
FI646
10. Install the spacer (1), shaft (2), reverse idler gear, and
washer (3).
FI641A
