Maintenance
35
1
m–3422

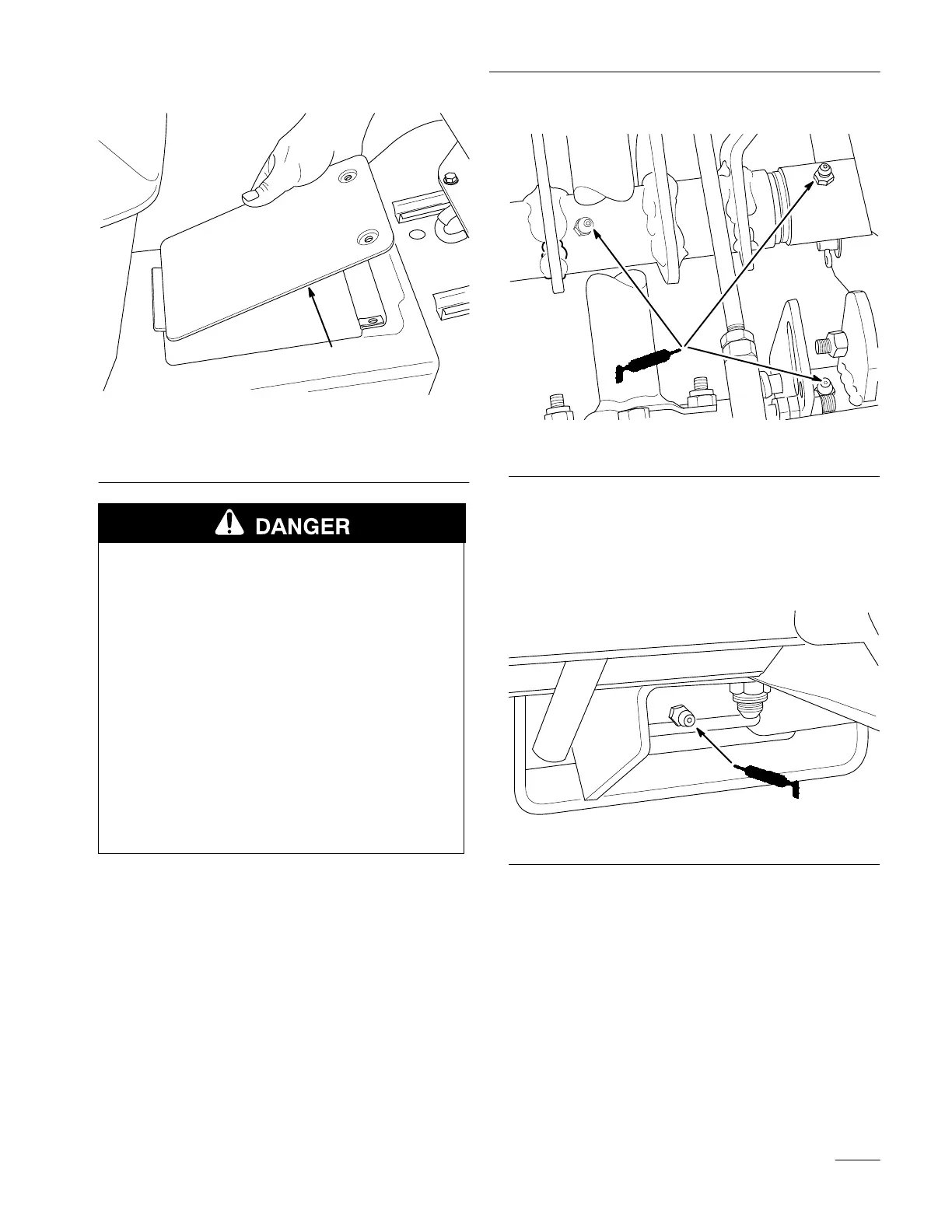

Figure 33
1. Drive
shaft maintenance
cover
POTENTIAL
HAZARD
• Rotating shaft or cooling fan can cause
injury.
WHAT CAN HAPPEN
• Fingers, hands, feet, hair, etc. can get
caught by shaft or fan.
• Loose clothing can get caught by shaft.
HOW TO AV
OID THE HAZARD
• Do not operate the tractor without the drive
shaft cover in place.
• Keep hands and arms clear of rotating
shaft or fan.
4. Lubricate the three grease fittings (Fig. 34)
m–3419
Figure 34
).
5. Replace and secure the cover.
6. Grease the fitting on the brake pedal (Fig. 35).
m–3420
Figure 35
7. Put one pump of grease into the steering housing
(from underneath the frame) (Fig. 36) every 50
hours.
