Adjusting the Anti-Scalp
Rollers
Whenever you change the height-of-cut, adjust the
height of the anti-scalp rollers.
1. Park the machine on a level surface, disengage
the blade-control switch, and engage the parking
brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.

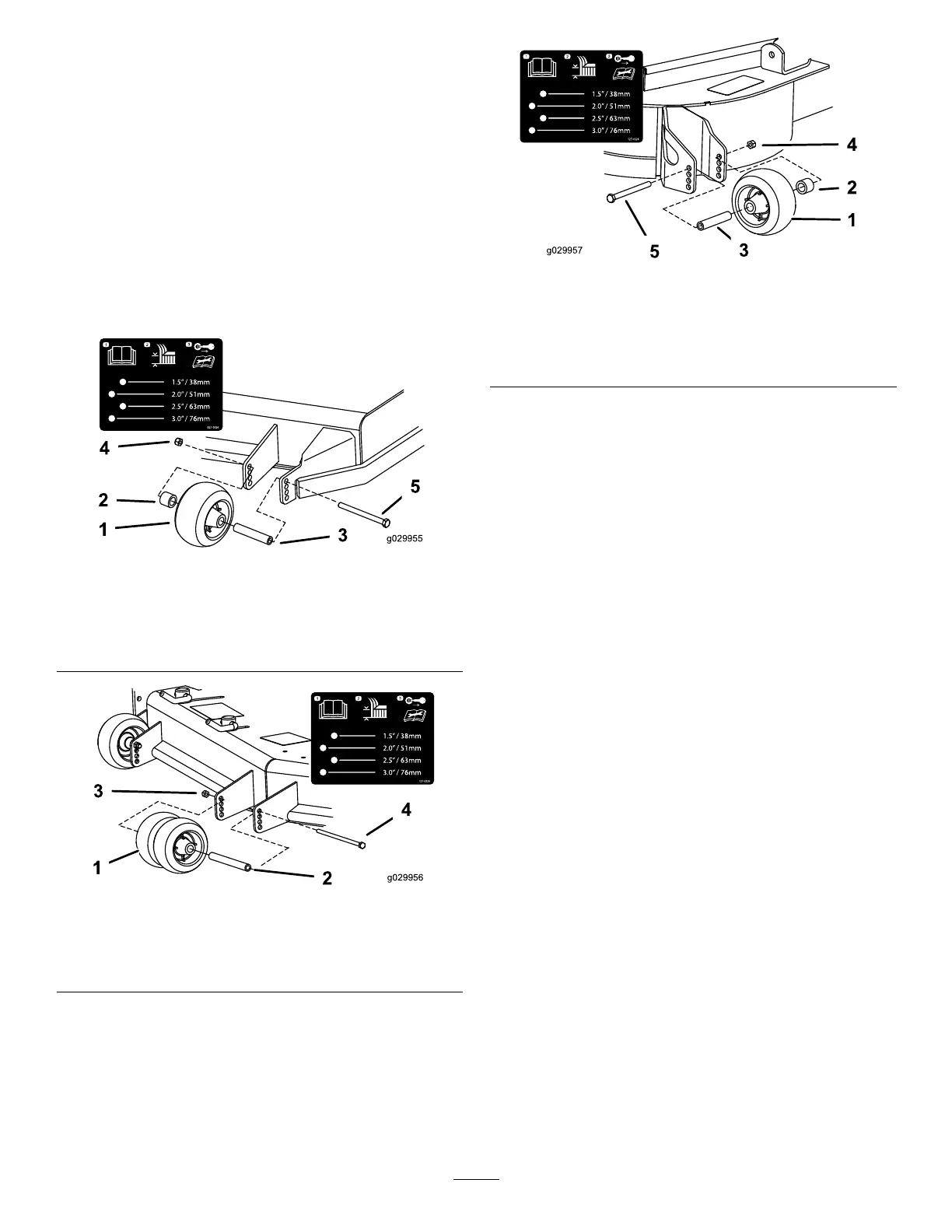

3. Adjust the anti-scalp rollers as shown in Figure
34 , Figure 35 , and Figure 36 .
g029955
Figure 34
1. Anti-scalp roller 4. Flange nut
2. Spacer
5. Bolt
3. Bushing
g029956
Figure 35
1. Anti-scalp roller 3. Flange nut
2. Bushing 4. Bolt
g029957
Figure 36
1. Anti-scalp roller 4. Flange nut
2. Spacer
5. Bolt
3. Bushing
