For Machines with ZT 5400 Hydros
The drive-wheel release valves are located on the left
and right sides underneath the engine deck.
1. Park the machine on a level surface, disengage
the blade-control switch, and engage the parking
brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Using a at-head screwdriver , rotate both cams
to the B YPASS position ( Figure 39 ).
4. Disengage the parking brake before pushing
the machine.
5. T o run the machine, rotate both cams to the R UN
position ( Figure 39 ).

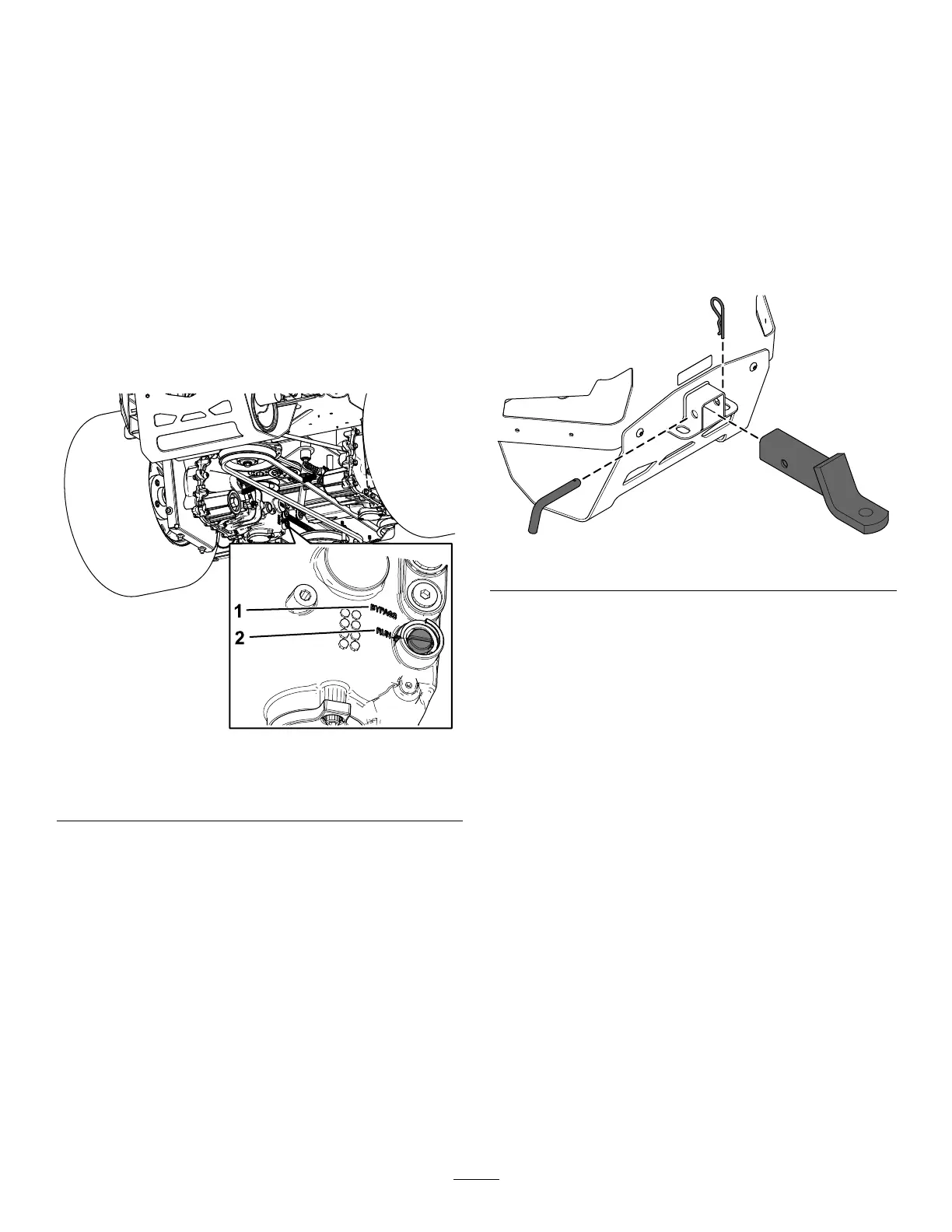

g332789
Figure 39
1. Rotate the cam to the
B YPASS position.
2. Rotate the cam to the R UN
position.
T owing a T railer
The machine is capable of pulling trailers and
attachments. Contact your authorized T oro distributor
for the available tow hitches.
Y our machine can tow trailers with a maximum gross
trailer weight (GTW) up to 1 13 kg (250 lb).
Do not exceed 22 kg (49 lb) of tongue weight on the
tow hitch of the machine.
When hauling cargo or towing a trailer , do not overload
the machine or trailer . Overloading can cause poor
performance or damage to the hydraulic-drive units,
tires, and frame.
1. Park the machine on a level surface, disengage
the blade-control switch (PT O), and engage the
parking brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Insert the hitch ball mount into the receiver
located at the rear of the machine.
4. Insert the hitch pin through the hole in the
receiver and the hitch ball mount.
5. Secure the hitch using the hairpin cotter .
g414986
Figure 40
34
