Operation
24
Parking Brake
Always set the parking brake when you stop the
machine or leave it unattended.
IMPORTANT: Do not park on slopes unless
wheels ar
e chocked or blocked.

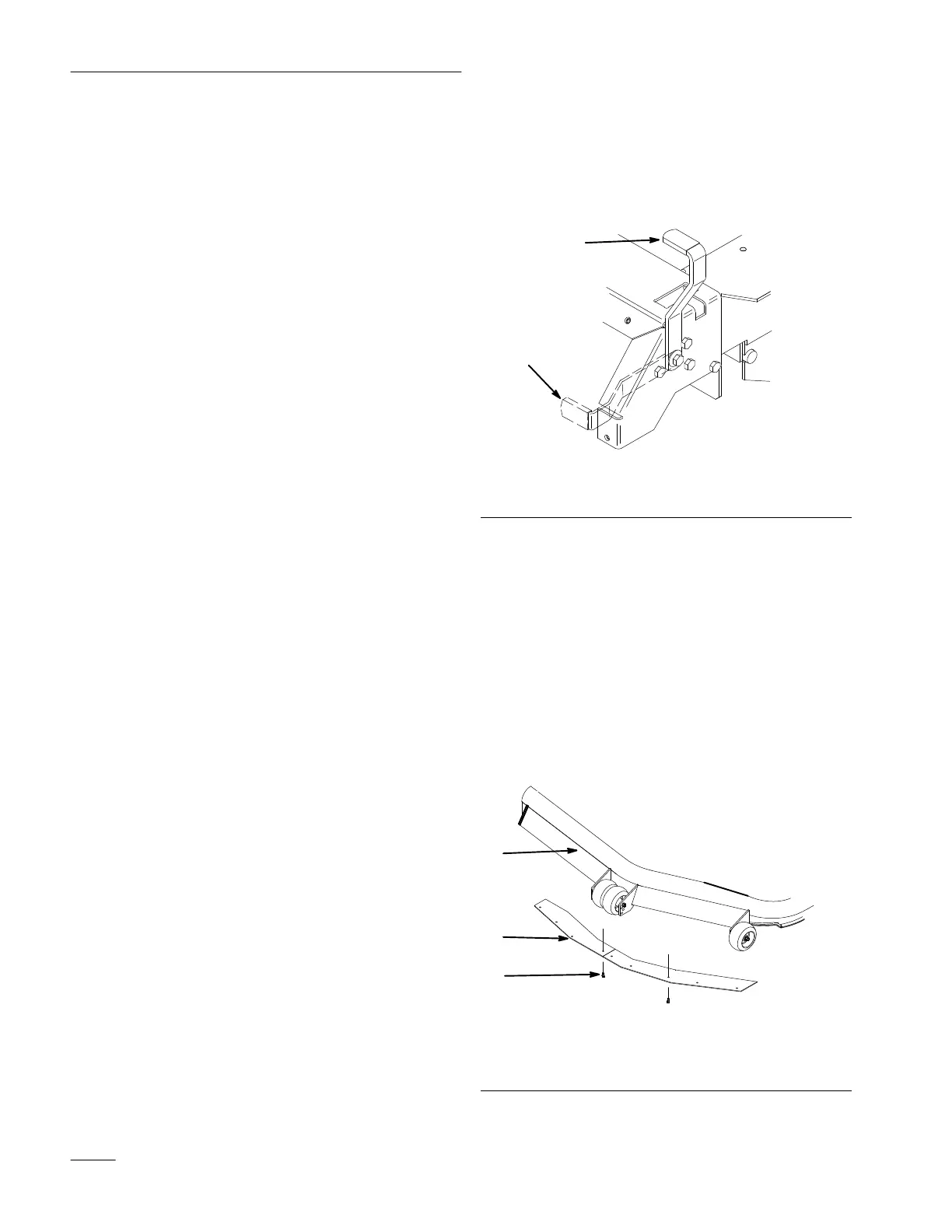

Setting the Parking Brake
1. Move the motion control levers (Fig. 1) out to
the neutral lock position.
2. Pull back and up on the parking brake lever to
set the parking brake (Fig. 2). The parking brake
lever should stay firmly in the “ENGAGED”
position.
Releasing the Parking Brake
1. Push forward and down on the parking brake
lever to release the parking brake (Fig. 2). The
parking brake is “DISENGAGED”.
1
2
m–4121
Figure 2
1. Parking
brake-ON
2.
Parking brake-OFF
Blowout
Baffles
Blowout baffles are used when in side discharge
mode only.
IMPORTANT: Do not use blowout baffles
while in recycling mode.
1. To install or remove blowout baffles, install or
remove bolts as shown in figure 3.
2
3
1
Figure 3
1. Bolts
2. Front
of Deck
3. Baffles
