Maintenance
35
Fuse
Service Interval/Specification
The electrical system is protected by fuses. It requires
no maintenance, however, if a fuse blows check
component/circuit for malfunction or short.
Fuse: Main F1–30 amp, blade-type
Alternator F2–25 amp, blade-type
Safety Interlock and Clutch F3–15 amp,
blade-type
1. Remove dash panel screws to gain access to fuse
holder (Fig. 35).
2. To replace fuses pull out on the fuse to remove it
(Fig. 35).
m–3223
3
2
1
4

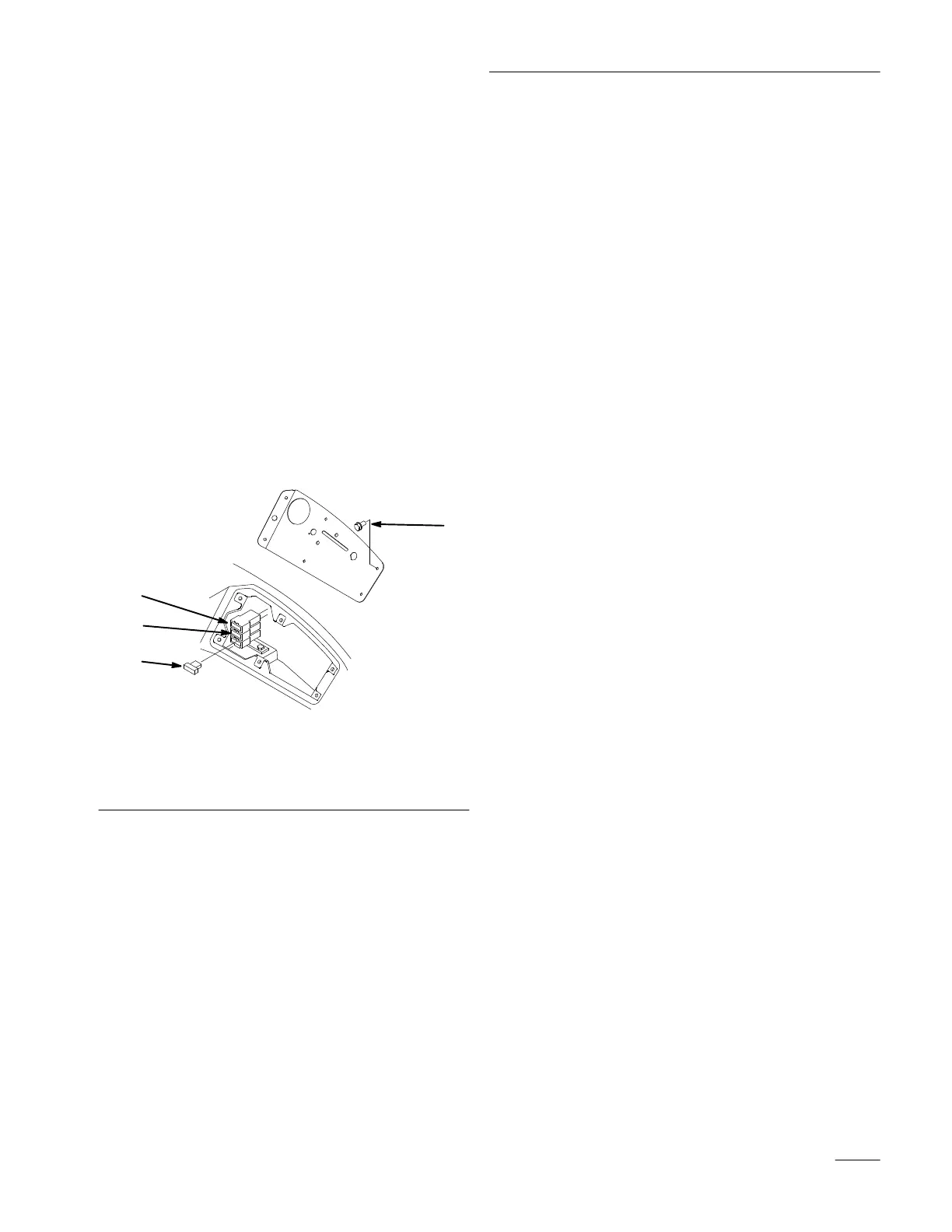

Figure 35
1. Main-30 amp
2. Alternator-25 amp
3. Safety interlock and
clutch-15 Amp
4. Screw
