Mid-Mount Z Service Manual 7 - 35
ELECTRICAL SYSTEMS

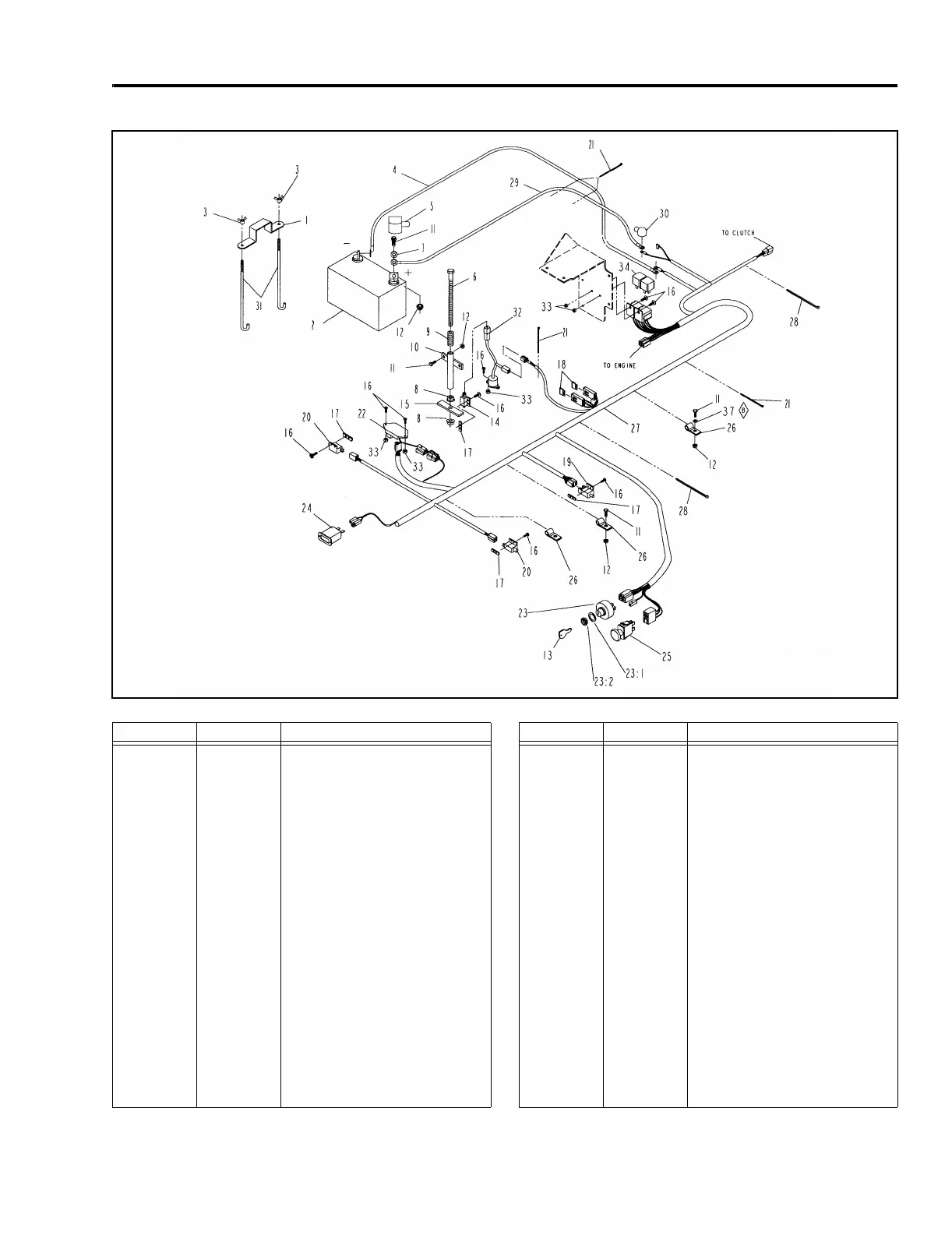

Wiring Harness, Typical
Ref. No. Qty. Description Ref. No. Qty. Description
1 1 Battery Holddown Strap 19 1 Switch
2 1 230 CCA Battery 20 2 Normally Open Switch
3 2 Wing Nut 21 5 Plastic Tie
4 1 Ground Wire 22 1 Seat Delay Module
5 1 Battery Insulator 23 1 Key Switch ASM
6 1 HH Screw 24 1 Hourmeter
7 2 Flat Washer 25 1 Delta Switch
8 2 HF Nut 26 3 Loom Clip
9 1 Seat Switch Spring 27 1 Wire Harness
10 1 Seat Spring Mount 28 2 Plastic Tie
11 6 HH Screw 29 1 Starter Wire
12 6 HF Nut 30 1 Solenoid Insulator
13 2 Ignition Key 31 2 Holddown Bolt
14 1 Normally Closed Switch 32 1 Tilt Switch
15 1 Seat Switch Plate 33 6 Lock Nut
16 14 PPH Screw 34 2 Relay
17 4 Tapped Plate 37 1 Flat Washer
18 2 Blade Type Fuse
