Mid-Mount Z Service Manual 5 - 9
CHASSIS

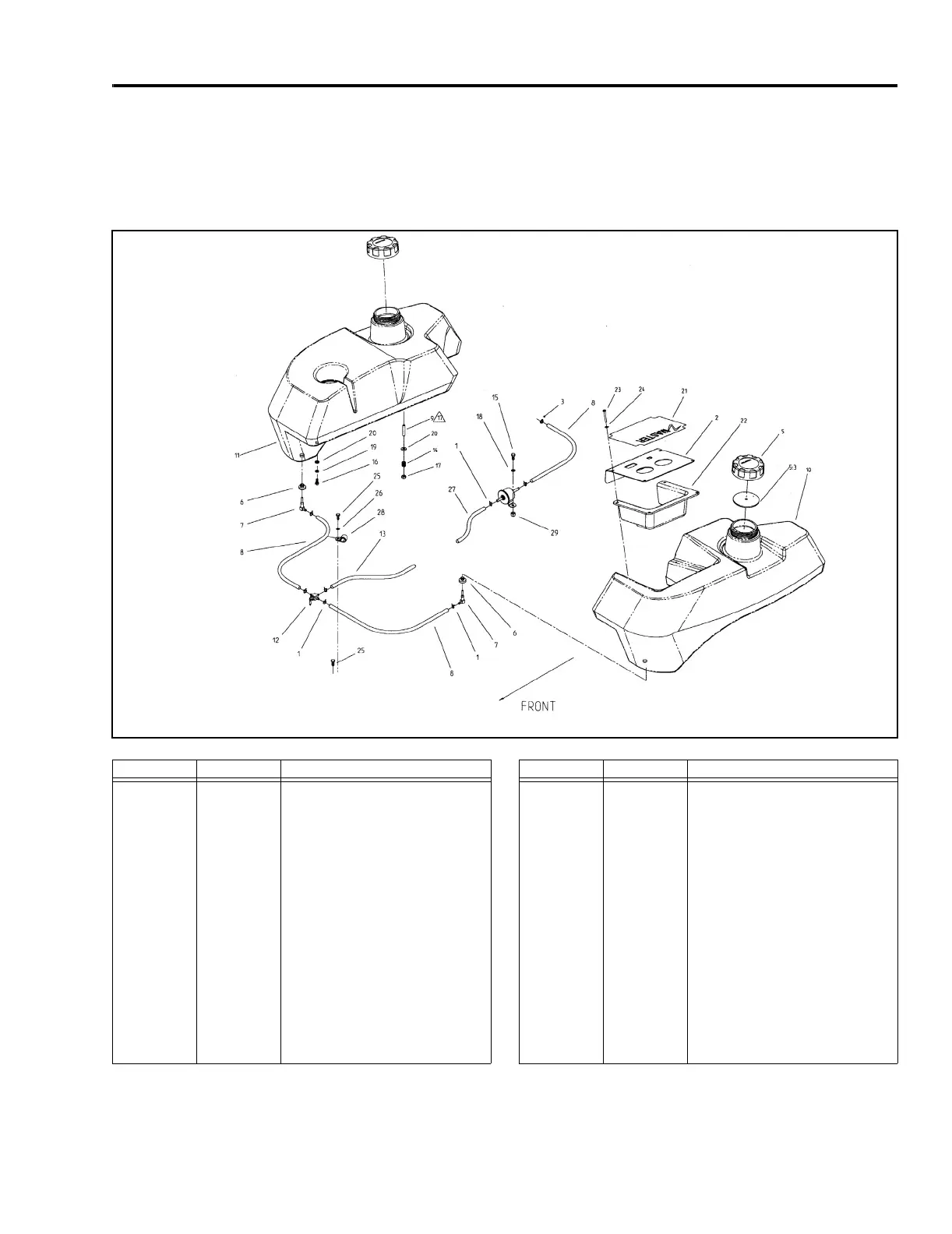

Description - Fuel System
The Z Master fuel system consists of dual fuel tanks with a total capacity of 12 gallon for the 200 Series and 10
gallons for the 100 Series. Fuel is routed to a 3 position selector valve, then to a fuel filter and the engine fuel
pump. The left fuel tank houses an electrical panel containing the key switch, PTO switch, and temperature gauge
on liquid-cooled models.
Ref. No. Qty. Description Ref. No. Qty. Description
1 9 Fuel Line Clamp 16 2 HH Screw
2 1 Control Panel 17 6 Lock Nut
3 1 Hose Clamp 18 2 Flat Washer
5 2 Gas Cap ASM 19 2 Lock Washer
6 2 Fuel Valve Bushing 20 8 Flat Washer
8 3 Fuel Hose 21 1 Control Panel Decal
8 2 Fuel Hose 22 1 Control Panel Shield
96Stud 234Screw
10 1 LH Fuel Tank 24 4 Spring Washer
11 1 RH Fuel Tank 25 2 HH Screw
12 1 Fuel Valve 27 1 Fuel Hose
13 1 Fuel Line Hose 28 1 Loom Clip
14 6 Fuel Tank Spring 29 2 HF Nut
15 2 HH Screw 99 1 Fuel Hose
To Next Page
