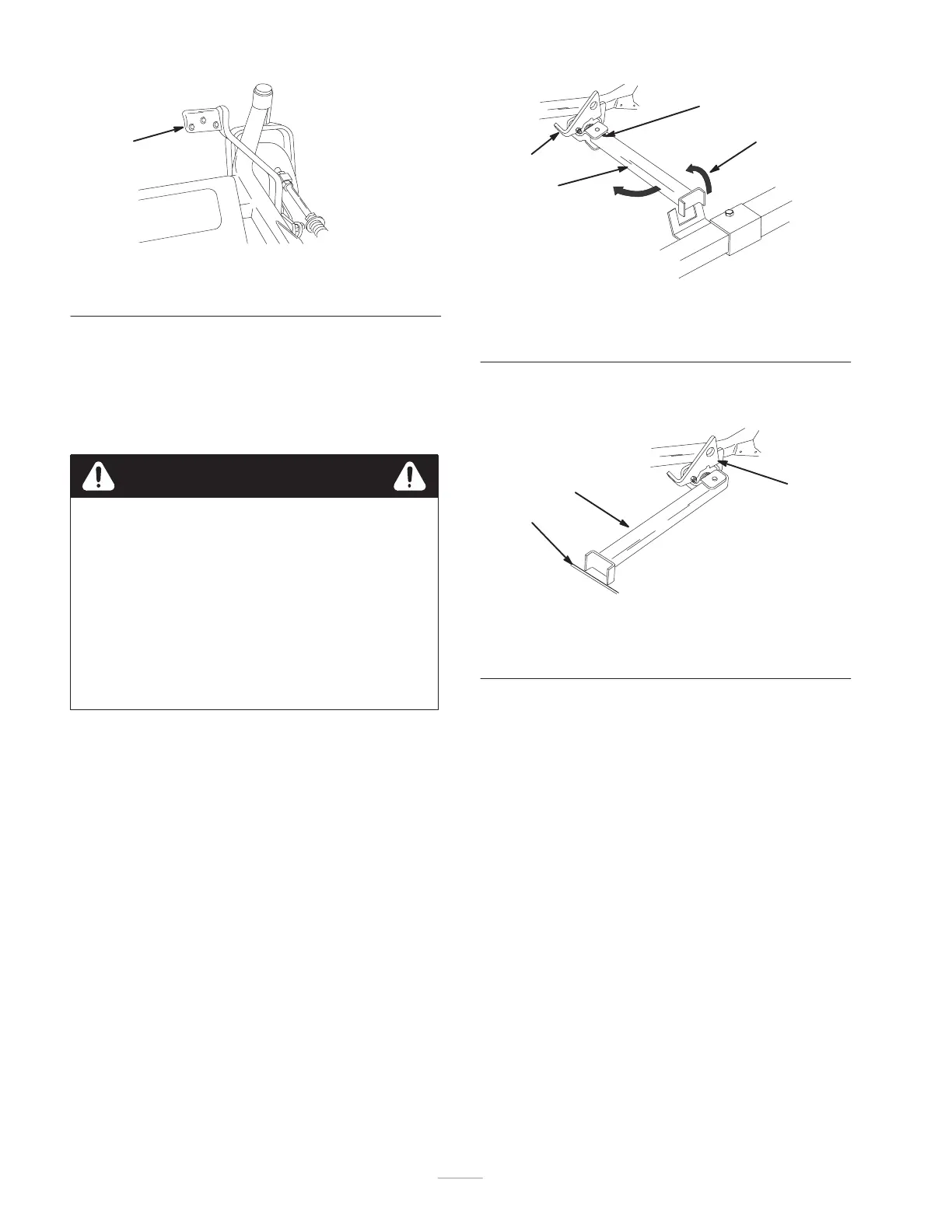

Figure 14
1. Lift Assist Lever
Using the Z–Stand

The Z–Stand is used for raising the front end of the
machine. This allows for cleaning of the deck and
removal of the blades.
Unit could fall onto someone and cause serious
injury or death.
• Use extreme caution when operating unit on
Z–Stand.
• Use only for cleaning deck and removing
blades.
• Do not keep unit on Z–Stand for extended
periods of time.
• Always shut engine off and set parking brake
before performing any maintenance to deck.
Warning
Driving up onto the Z–Stand
1. Raise deck to transport position.
2. Raise latch. Lift stand foot and twist out of its rest
position (Fig. 15).
3
1
m-5022
2
4
Figure 15
1. Z–Stand (rest position)
2. Latch
3. Raise up and twist
4. Bottom of slot
3. Swing stand foot out front and slide stand towad
machine, into the bottom of slot (Fig. 15).
1
2
m-5023
3
Figure 16
1. Z–Stand (Positioned in
slot)
2. Crack in side walk or turf
3. Latch resting on pivot tab
4. Set foot of stand on ground and rest latch on pivot tab
(Fig. 16).
5. Start engine and put at half throttle.
Note: For best results, place foot of stand into seams in
sidewalks or into turf (Fig. 16).
6. Drive onto stand. Stop when latch drops over tab into
locked postion (Fig. 17). Once onto stand, engage
parking brake. Shut off engine.
7. Chock or block the drive wheels.
