36
Important Make sure cutting unit spindles are full of
grease weekly.
1. Disengage the PTO, move the motion control levers to
the neutral locked position and set the parking brake.
2. Stop the engine, remove the key, and wait for all
moving parts to stop before leaving the operating
position.

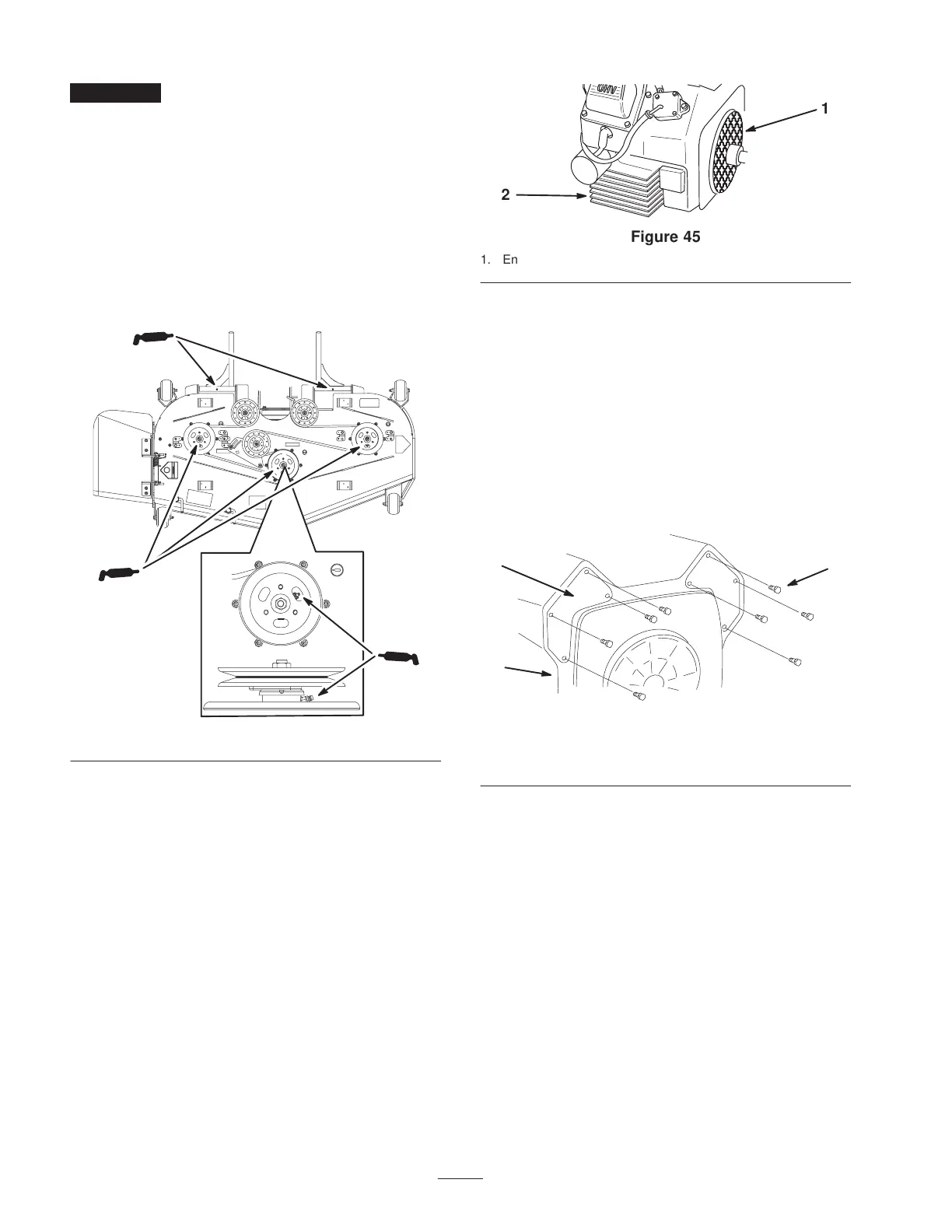

3. Grease the three spindle bearings under the pulleys
until grease comes out the lower seals (Fig. 44).
4. Grease the fittings on the push arms (Fig. 44).
m–6822
Figure 44
Cleaning the Cooling Systems
Cleaning the Engine Screen and the Oil
Cooler
Before each use, check and clean engine screen and oil
cooler. Remove any build–up of grass, dirt or other debris
from the oil cooler and engine air intake screen (Fig. 45).
m–3801
1
2
Figure 45
1. Engine screen 2. Oil cooler
Cleaning the Engine Fins
Every 100 hours clean engine cylinder and cylinder head
cooling fins. Also clean around carburetor, governor
levers and linkage. This will make sure adequate cooling
to hydraulic pumps, motors and engine and will reduce the
possibility of overheating and mechanical damage.
1. Remove the panels from the engine shroud.
2. Clean the engine cooling fins.
3. Install the panels onto the engine shroud.
m–5616
1
2
3
Figure 46
1. Panel
2. Engine shroud
3. Screws
