Toro 74247 - Cleaning under the Mower; Inspecting the Belts

47

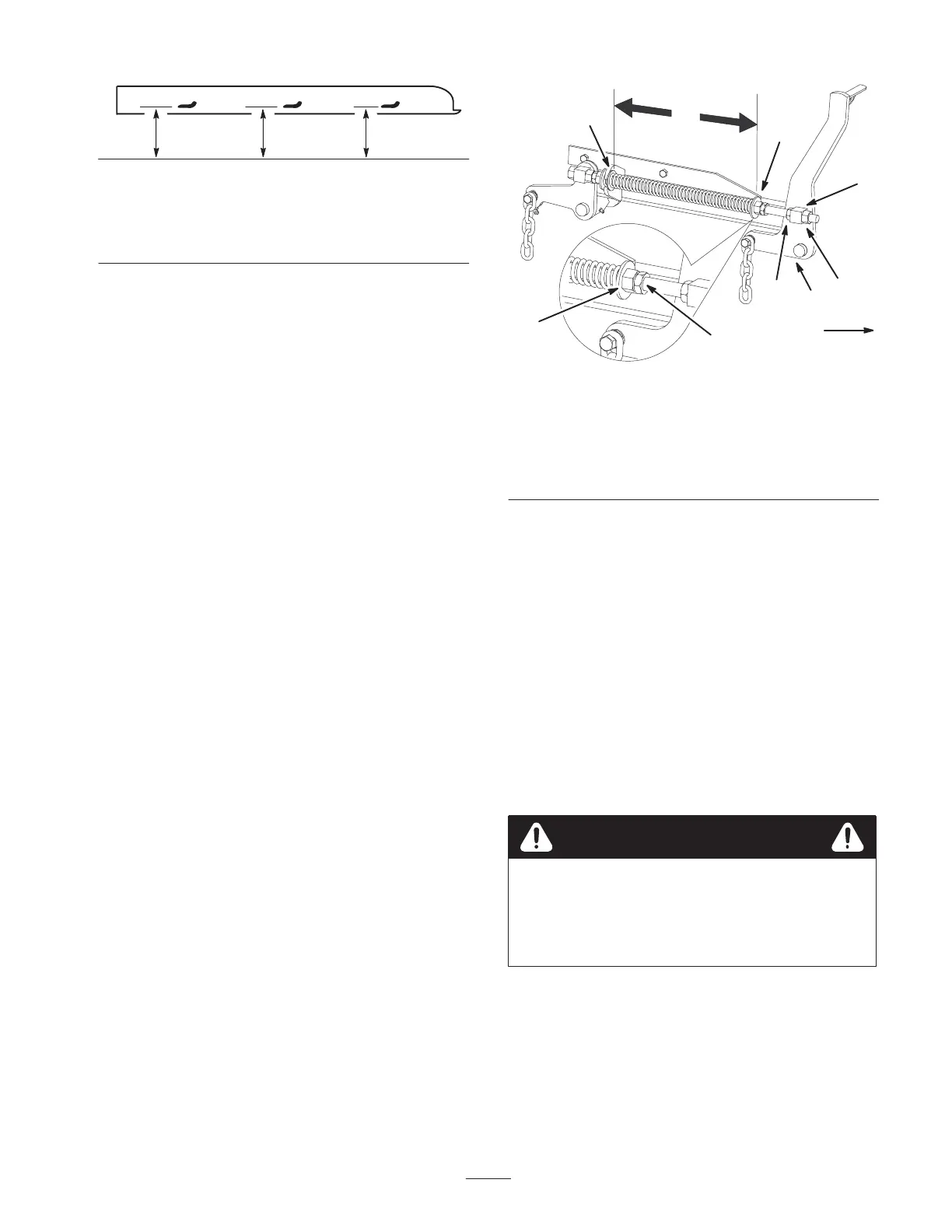

MEASURE FROM
CUTTING EDGE TO
A LEVEL SURFACE
m–2539
Figure 67
Note: Both of the front swivels need to be adjusted the
same amount to maintain equal chain tension.
7. Loosen the front swivel jam nuts, at the front of the
right and left swivels, approximately a 1/2 inch
(13 mm) (Fig. 68).
8. Adjust the lift nuts on both the left and the right side of
the machine to achieve 1/4 to 3/8 inch (6 to 10 mm)
lower in front at A than in the rear at B (Fig. 68).
9. Tighten both swivel jam nuts against the front swivel
to lock the height.
10. Check to make sure there is equal tension on the
chains and adjust again if needed.
Adjusting the Compression Spring
1. Raise the mower lift lever to the transport position
(Fig. 16).
2. Check the distance between the two large washers, it
needs to be 11–1/2 inches (29.2 cm) (Fig. 68).
3. Adjust this distance, by loosening the spring jam nut
and turning the nut in front of each spring (Fig. 68).
Turning the nut clockwise will shorten the spring;
counter–clockwise will lengthen the spring.
4. Lock the nut into position by tightening the spring jam
nut (Fig. 68).
Front
2
m–6831
1
3
4
5
7
6
8
8
Figure 68
1. 11–1/2 inch (29.2 cm)
between the large
washers
2. Front nut
3. Spring jam nut
4. Front swivel
5. Swivel jam nut
6. Lift nut
7. Front support arm
8. Large washer
Cleaning Under the Mower
Remove the grass buildup under the mower daily.
1. Position the mower on a flat surface.
2. Disengage the PTO, move the motion control levers to
the neutral locked position and set the parking brake.
3. Stop the engine, remove the key, and wait for all
moving parts to stop before leaving the operating
position.
4. Raise the mower to the transport position.
5. Lift the front of the machine and support the machine
using jack stands.
Mechanical or hydraulic jacks may fail to support
the machine and cause a serious injury.
• Use jack stands when supporting the machine.
• Do not use hydraulic jacks.
Warning
Inspecting the Belts
Inspect all belts every 100 hours.
1. Check belts for cracks, frayed edges, burn marks or
any other damage. Replace damaged belts.
