Children or bystanders may be injured if they
move or attempt to operate the mower while it is
unattended.
Always remove the ignition key and move the
motion control levers to the brake position when
leaving the machine unattended, even if just for a
few minutes.
Warning
Adjusting the Height of Cut
The height of cut is adjusted from 1-1/2 to 4-1/2 inch (38 to
114 mm) in 1/2 inch (13 mm) increments by moving the
height-of-cut lever in different locations.
1. Raise the height-of-cut lever to the transport position
(also the 4-1/2 inch (114 mm) cutting height position)
(Fig. 10).
2. To adjust, pull up on the height-of-cut lever and move it
to the desired position (Fig. 10).
m–7869
2 inch (51 mm)
2–1/2 inch (64 mm)
3 inch (76 mm)
3–1/2 inch (89 mm)
4 inch (102 mm)
4–1/2 inch (114 mm)
1–1/2 inch (38 mm)

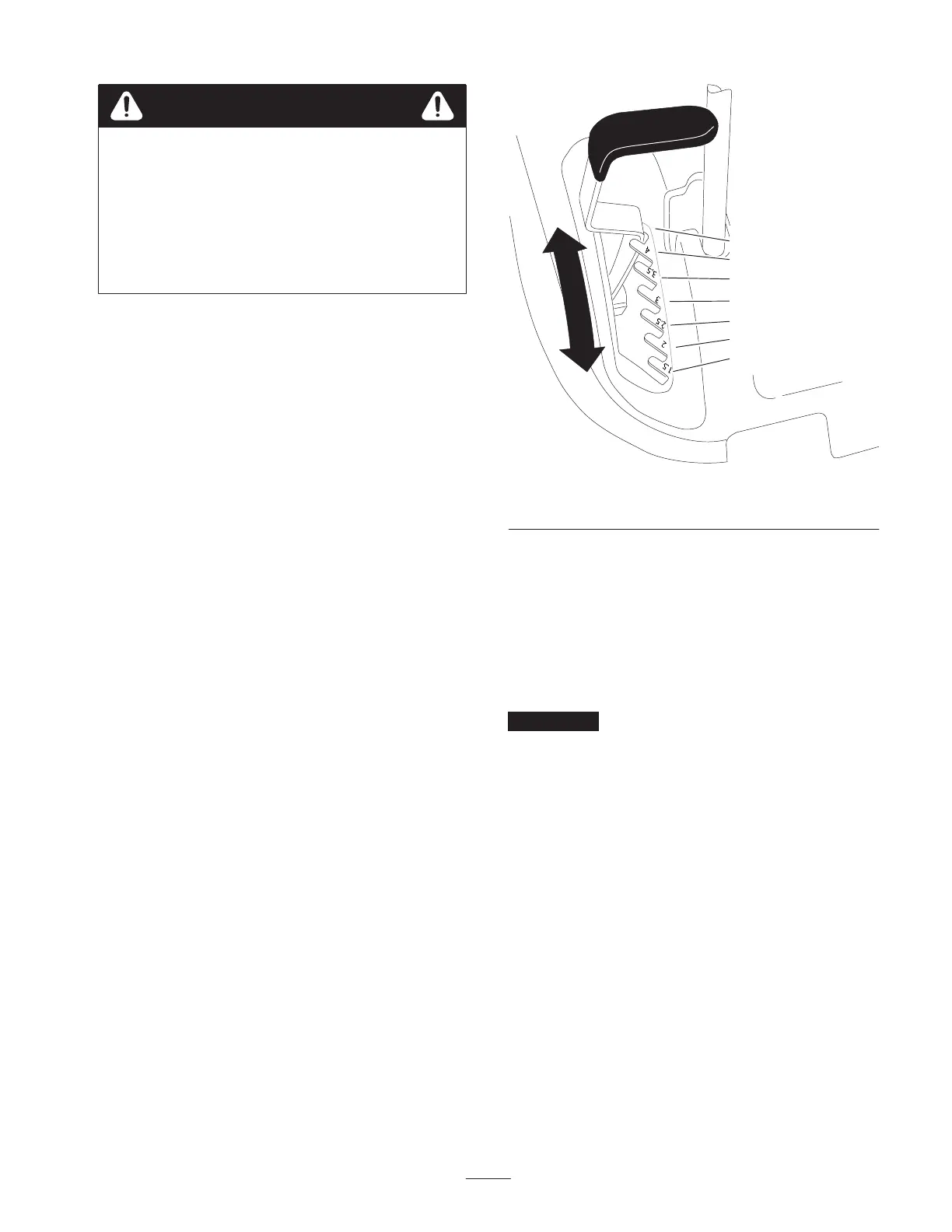

Figure 10
1. Height-of-cut lever 2. Height-of-cut positions
Positioning the Seat
The seat can move forward and backward. Position the seat
where you have the best control of the machine and are
most comfortable.
1. Raise the seat and loosen the adjustment knobs enough
to move the seat (Fig. 11).
Important Make sure that the spacers stay in place
when loosening the knobs to move the seat. Loss of the
spacers can result in damage to the seat.
2. Move the seat to the desired position and tighten the
knobs.
