Name: Toro 74413
Brand: Toro
Rating: 4 (1 reviews)

To Next Page

To Previous Page

110-0439

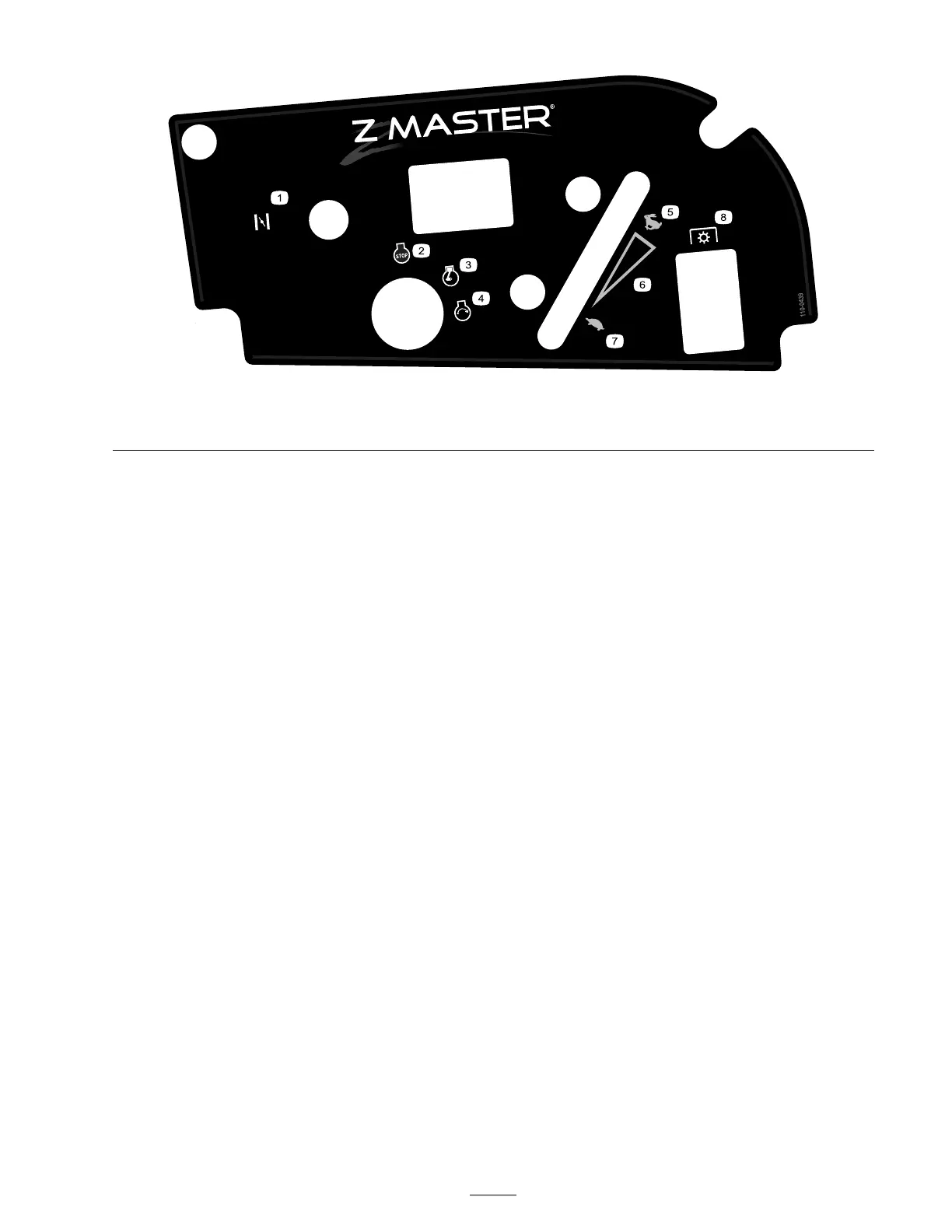

1. Choke

3. Engine—run

5. Fast

7. Slow

2. Engine—stop 4. Engine—start

6. Continuous variable setting

8. Power take-off (PTO)
