Product Overview

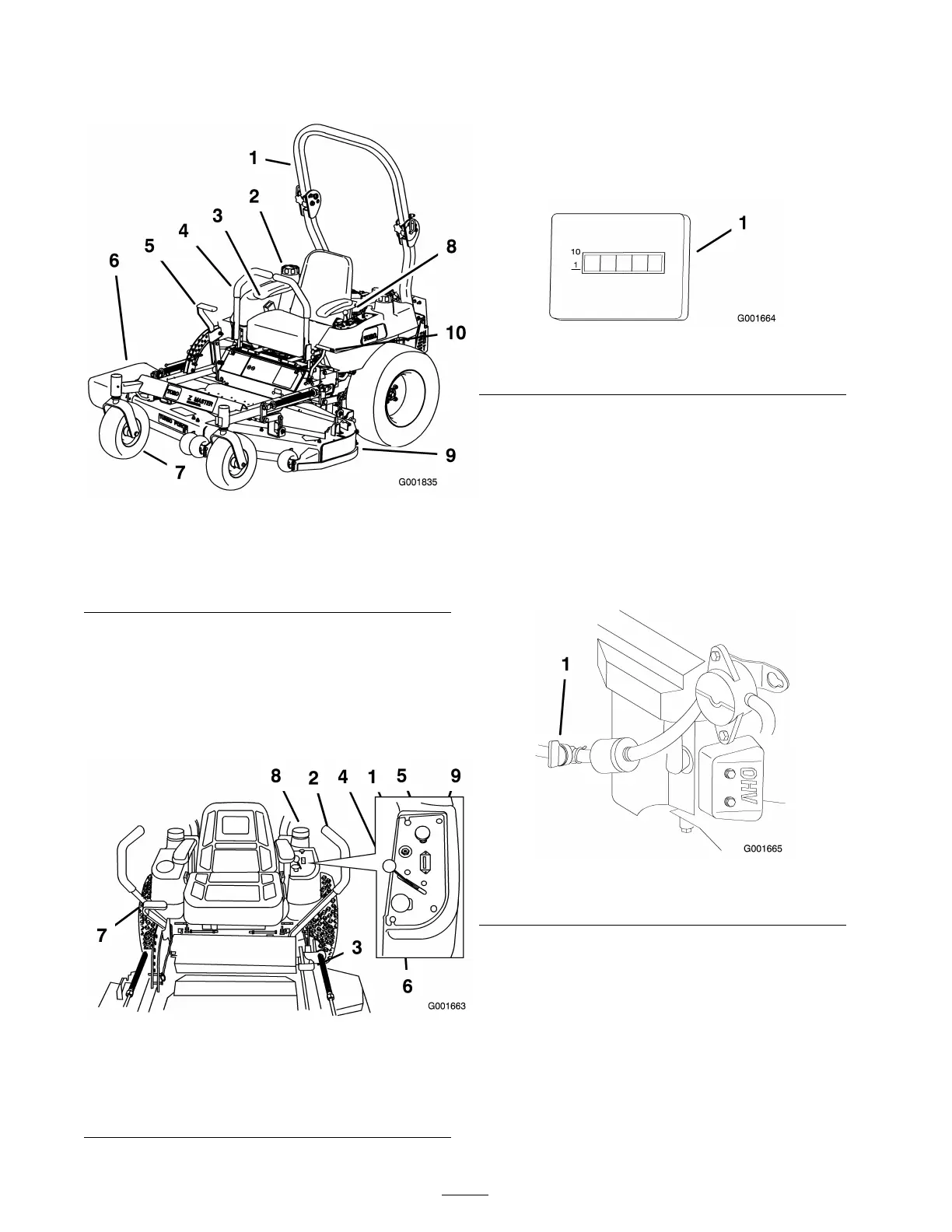

Figure 3
1. Rollbar 6. Side discharge
2. Fuel cap (both sides)
7. Front caster wheel
3. Seat belt 8. Controls
4. Motion control lever 9. Mower deck
5. Height-of-cut lever 10. Parking brake lever
Controls
Become familiar with all the controls before y ou
star t the engine and operate the mac hine ( Figure 3
and Figure 4 ).
Figure 4
1. Hour meter
6. Throttle control
2. Ignition switch 7. PTO Switch
3. Glow plug switch 8. Audible alarm
4. Glow plug light 9. Fuel selector valve
5. Engine Temperature light
Using the Hour Meter
T he hour meter ( Figure 5 ) records the n umber
of hours the engine has operated. It operates
when the engine is r unning . Use these times for
sc heduling regular maintenance .
Figure 5
1. Hour meter
Using the Fuel Shutoff Valve
T he mac hine has 2 fuel tanks , one on the left side
and the other on the right side . Eac h tank connects
to a c hec k v alv e and then to a tee . F rom there a
common fuel line leads to the engine ( Figure 6 ).
Close the fuel shutoff v alv e before transpor ting
or storing the mac hine .
Figure 6
1. Fuel shutoff valve
14
