Toro 74480 User Manual
4
of 1
of 1 rating
88 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

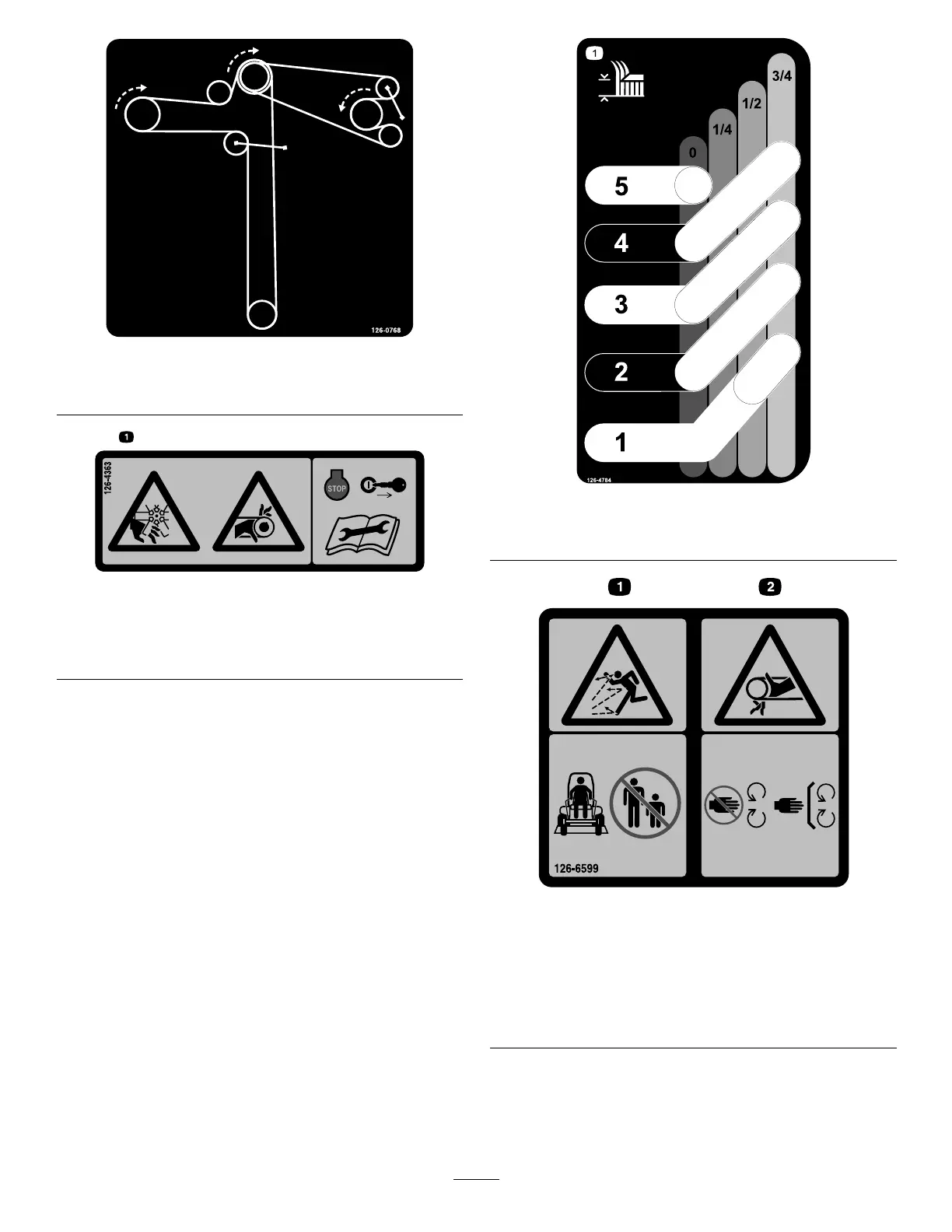

decal126-0768
126-0768
Rear
Discharge
Units
Only
decal126-4363
126-4363
1.
Cutting/dismemberment
hazard,
fan
and
entanglement
hazard,
belt.
Shut
off
the
engine
and
remove
the
key
before
adjusting,
servicing
or
cleaning
the
machine.
decal126-4784
126-4784
1.
Height
of
cut
decal126-6599
126-6599
Rear
Discharge
Units
1.
Thrown
objects
hazard—keep
bystanders
a
safe
distance
away
from
the
machine.
2.
Cutting/dismemberment
of
hand—stay
away
from
moving
parts;
keep
all
guards
and
shields
in
place.
9
8
10
Table of Contents
Table of Contents
3
Safety
4
General Safety
4
Slope Indicator
5
Safety and Instructional Decals
6
Product Overview
15
Controls
15
Specifications
17
Before Operation
18
Before Operation Safety
18
Adding Fuel
18
Performing Daily Maintenance
20
Breaking in a New Machine
20
Using the Rollover-Protection System
20
(Rops)
20
Using the Safety-Interlock System
21
Positioning the Seat
22
Changing the Seat Suspension
22
Adjusting the Myride™ Suspension System
23
Using Attachments and Accessories
24
During Operation
24
During Operation Safety
24
Entering the Operator's Position
26
Operating the Parking Brake
26
Operating the Mower Blade-Control Switch (PTO)
26
Operating the Throttle
27
Operating the Choke
27
Starting the Engine
28
Shutting off the Engine
28
Using the Motion-Control Levers
30
Driving the Machine
30
Adjusting the Height of Cut
31
Adjusting the Anti-Scalp Rollers
32
Adjusting the Side Bumpers
33
Using the Side Discharge
33
Operating Tips
33
After Operation
34
After Operation Safety
34
Using the Fuel-Shutoff Valve
34
Using the Drive-Wheel Release Valves
35
Transporting the Machine
36
Maintenance
38
Recommended Maintenance Schedule(S)
38
Pre-Maintenance Procedures
39
Maintenance Safety
39
Lubrication
40
Greasing the Machine
40
Lubricating the Caster-Wheel Hubs
41
Engine Maintenance
42
Identifying the Engine
42
Engine Safety
42
Servicing a Kawasaki ® Engine
42
Servicing a Kohler Engine
47
Disengage the Blade-Control Switch (PTO) and Engage the Parking Brake
49
Shut off the Engine, Remove the Key, and Wait for All Moving Parts to Stop before Leaving the Operating Position
49
Servicing a Toro Engine
52
Drain the Oil from the Engine
55
(Figure 51)
55
Oil into the Filler Tube and Slowly Add the Additional Oil to Bring It to the Full Mark
56
Checking the Spark Arrester
57
Replacing the Emissions-Air Intake Filter
58
Fuel System Maintenance
58
Replacing the Fuel Filter
58
Servicing the Fuel Tank
59
Electrical System Maintenance
59
Electrical System Safety
59
Servicing the Battery
59
Servicing the Fuses
61
Drive System Maintenance
62
Checking the Seat Belt
62
Checking the Roll-Bar Knobs
62
Adjusting the Tracking
63
Checking the Tire Pressure
63
Checking the Wheel Lug Nuts
63
Cooling System Maintenance
64
Cleaning the Engine Screen
64
Brake Maintenance
64
Adjusting the Parking Brake
64
Belt Maintenance
66
Inspecting the Belts
66
Replacing the Mower Belt for Side-Discharge Mower Decks
66
Replacing the Mower Belt for Rear-Discharge Mower Decks
67
Replacing the Hydraulic Pump-Drive Belt
69
Controls System Maintenance
70
Adjusting the Control-Handle Position
70
Adjusting the Motion-Control Linkage
71
Hydraulic System Maintenance
72
Hydraulic System Safety
72
Servicing the Hydraulic System
72
Mower Deck Maintenance
74
Servicing the Cutting Blades
74
Leveling the Mower Deck
78
Removing the Mower Deck
80
Replacing the Grass Deflector
80
Cleaning
81
Cleaning under the Mower Deck
81
Cleaning the Suspension System
81
Disposing of Waste
81
Storage
82
Storage Safety
82
Cleaning and Storage
82
Troubleshooting
83
Schematics
85
