Toro 74626 - Product Overview

ProductOverview
G020182
12

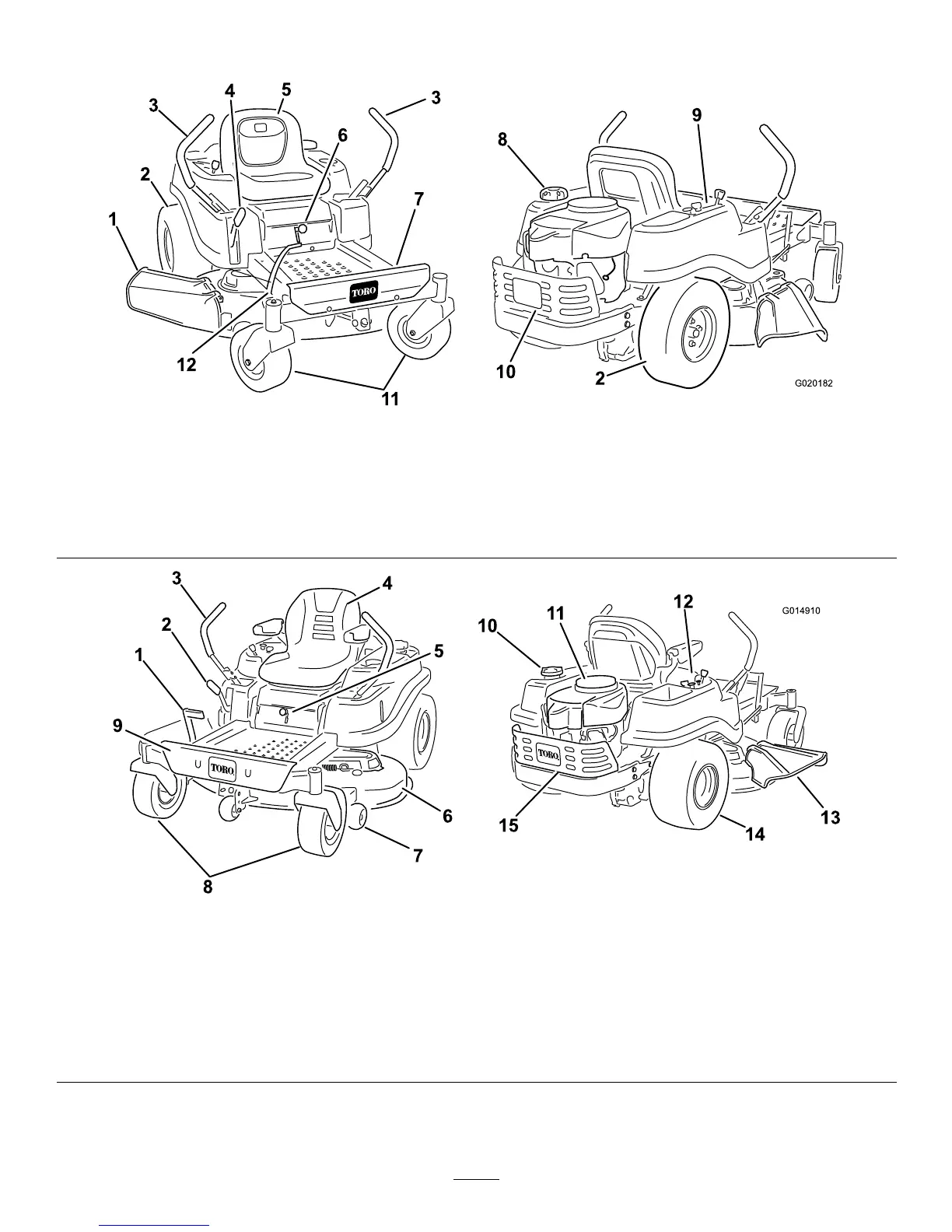

Figure5
Models74625and74626
1.Deector4.Heightofcutlever
7.Footrest10.Engineguard
2.Reardrivewheel
5.Operatorseat
8.Fueltankcap11.Frontcasterwheel
3.Motioncontrollevers
6.SmartSpeed™lever9.Controlpanel12.Footassistlever(certain
modelsonly)
G014910
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Figure6
Models74631,and74632
1.Footassistlever(certain
modelsonly)
5.SmartSpeed™lever
9.Footrest
13.Deector
2.Heightofcutlever
6.Mowerdeck
10.Gastankcap
14.Reardrivewheel
3.Motioncontrollevers7.Anti-scalproller11.Engine15.Engineguard
4.Operatorseat(armrests
optional)
8.Frontcasterwheel
12.Controlpanel
24
