Lubrication
GreasingtheBearings
ServiceInterval:Every25hours—Greaseallthe
lubricationpoints.
GreaseType:No.2lithiumgrease
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake;refertoParkPosition(page15).
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Cleanthegreasettings(Figure39andFigure
40)witharag.
Note:Scrapeanypaintoffthefrontofthe
tting(s).

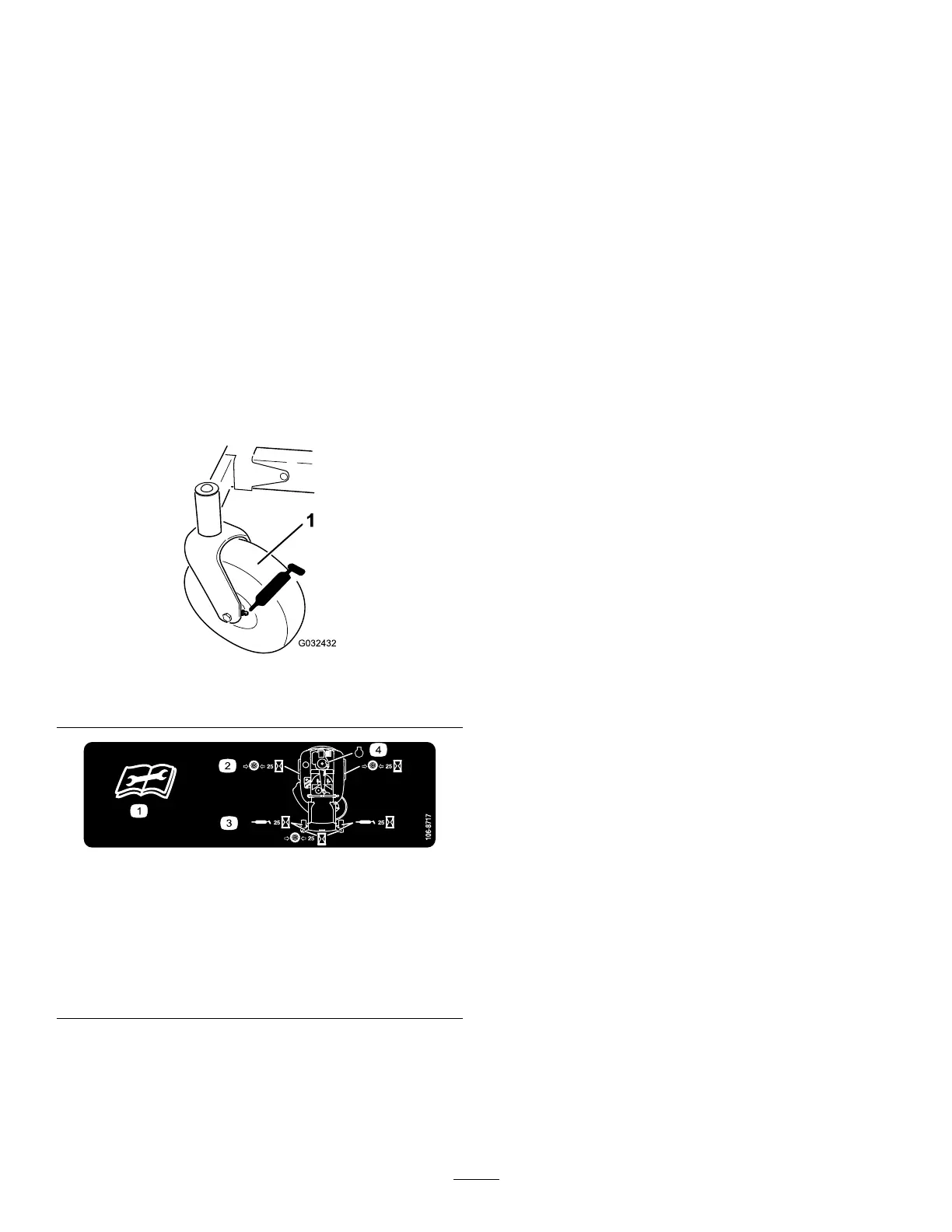

g032432
Figure39
1.Frontcastertire
decal106-8717
Figure40
Locatedontheseat-panunderside
1.Readtheinstructions
beforeservicingor
performingmaintenance
3.Greaseevery25operating
hours
2.Checkthetirepressure
every25operatinghours
4.Engine
4.Connectagreaseguntoeachtting(Figure39
andFigure40).
5.Pumpgreaseintothettingsuntilgreasebegins
tooozeoutofthebearings.
6.Wipeupanyexcessgrease.
EngineMaintenance
EngineSafety
•Shutofftheenginebeforecheckingtheoilor
addingoiltothecrankcase.
•Keepyourhands,feet,face,clothing,andother
bodypartsawaythemuferandotherhotsurfaces.
ServicingtheAirCleaner
ServiceInterval:Beforeeachuseordaily
Note:Servicetheaircleanermorefrequently(every
fewhours)ifoperatingconditionsareextremelydusty
orsandy.
RemovingtheFoamandPaper
Elements
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Cleanaroundtheair-cleanercovertoprevent
dirtfromgettingintotheengineandcausing
damage.
4.Liftthecoverandrotatetheair-cleanerassembly
outoftheengine(Figure41).
