Toro 74830 - Product Overview

ProductOverview
G010001
1
2
3
4
5
6
7
8
9
10

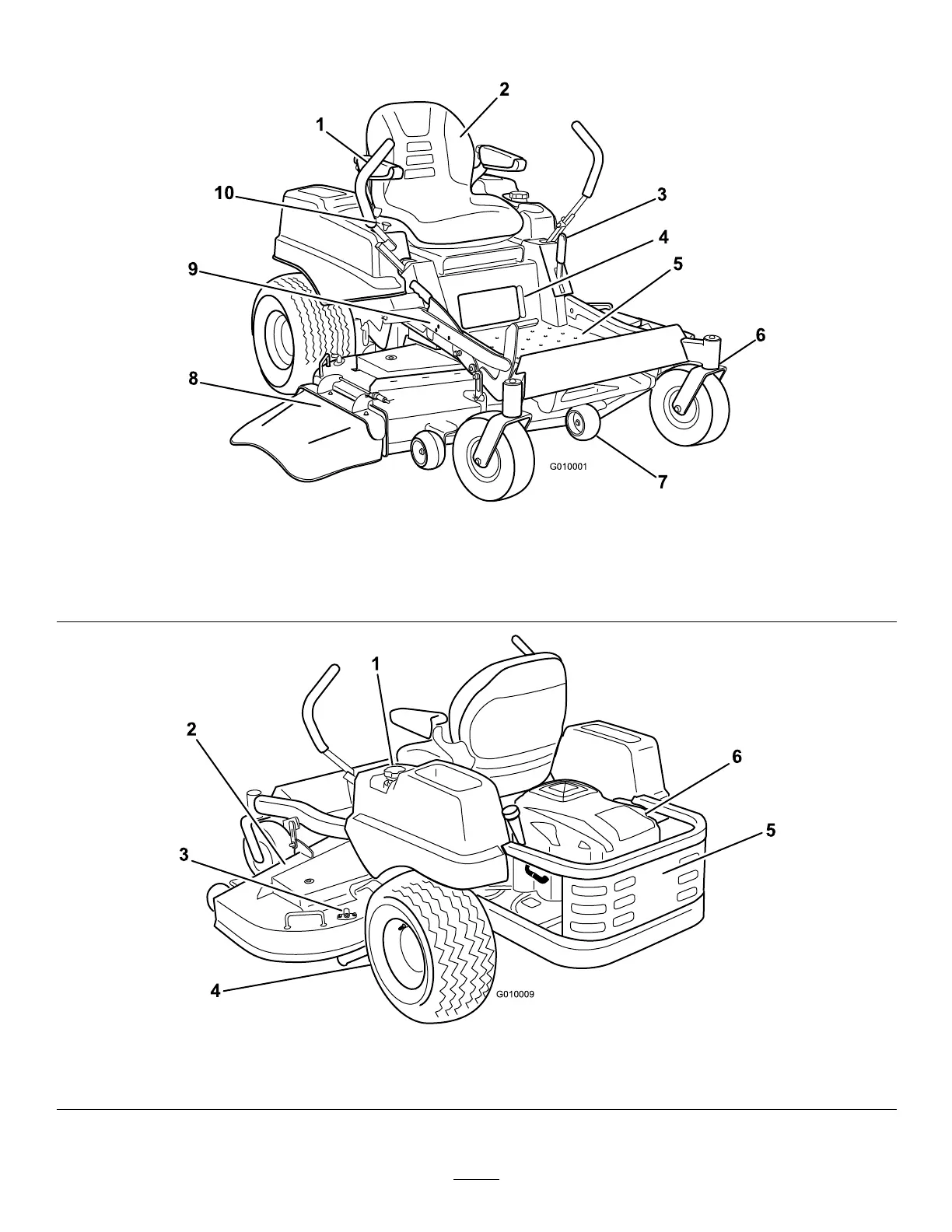

Figure4
1.Motioncontrollevers4.Fuelgauge7.Anti-scalproller
10.Controlpanel
2.Operatorseat
5.Footrest
8.Deector
3.Parkingbrake6.Frontcasterwheel
9.Footpedaldeckliftand
height-of-cut
G010009
1
2
3
4
5
6
Figure5
1.Gastankcap
3.Washoutport5.Engineguard
2.MowerDeck4.Drivewheel6.Engine
