LevelingtheMowerDeck
1.Settheanti-scalprollerstothetopholesor
removethemcompletelyforthisprocedure;refer
toAdjustingtheAnti-ScalpRollers(page23).
2.Settheheight-of-cutlevertothe76mm(3inch)
position;refertoAdjustingtheHeightofCut
(page22).
3.Place2blocks,eachhavingathicknessof6.6
cm(2-5/8inches),undereachsideofthefront
edgeofthedeckbutnotundertheanti-scalp
rollerbrackets(Figure62).
4.Place2blocks,eachhavingathicknessof7.3
cm(2-7/8inches),undertherearedgeofthe
cuttingdeckskirt,1oneachsideofthecutting
deck(Figure62).

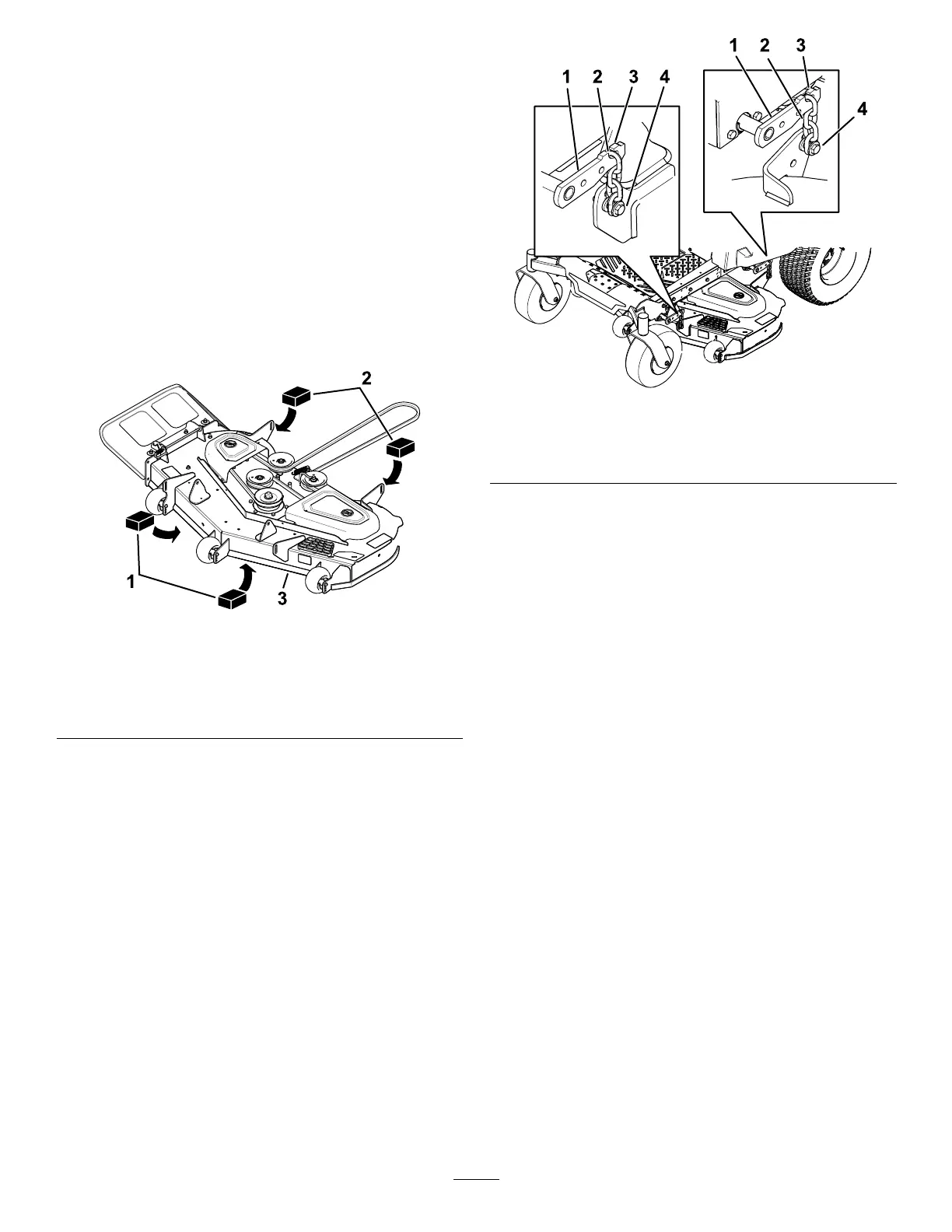

g297501
Figure62
1.Woodblock—6.6cm
(2-5/8inches)thick
3.Frontedge
2.Woodblock—7.3cm
(2-7/8inches)thick
5.Loosentheadjustmentboltsonall4cornersso
thatthedeckissittingsecurelyonall4blocks
(Figure63).
g297515
Figure63
1.Deck-liftarm
3.Hook
2.Chain
4.Adjustmentbolt
6.Ensurethatthereistensiononall4chains
(Figure63).
7.Tightenthe4adjustmentbolts(Figure63).
8.Ensurethattheblockstsnuglyunderthedeck
skirtandthatallboltsaretight.
9.Verifythatthedeckislevelbycheckingthe
side-to-sidelevelandfront-to-rearbladeslope;
repeatthedecklevelingprocedureifnecessary.
