g294044

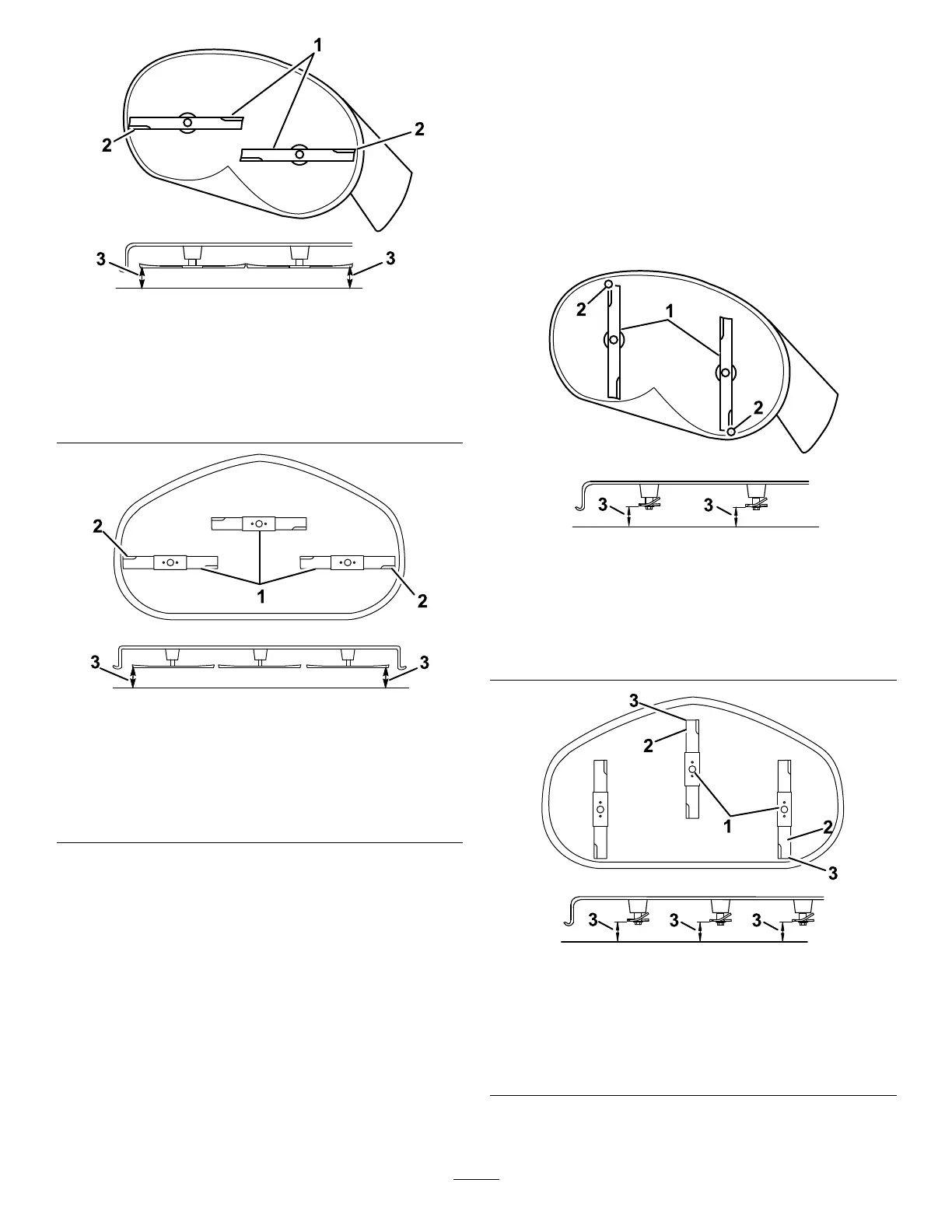

Figure62
MowerDeckswith2Blades
1.Bladessidetoside
3.Measurefromthetipofthe
bladetotheatsurface
here.
2.Outsidecuttingedges
g296913
Figure63
MowerDeckswith3Blades
1.Bladessidetoside
3.Measurefromthetipofthe
bladetotheatsurface
here.
2.Outsidecuttingedges
CheckingtheFront-to-RearBlade
Slope
Checkthefront-to-rearbladelevelanytimeyouinstall
themower.Ifthefrontofthemowerismorethan
7.9mm(5/16inch)lowerthantherearofthemower,
adjustthebladelevel.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andmovethe
motion-controlleversoutwardtothePARK
position.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Settheheightofcutto76mm(3inches).
4.Carefullyrotatethebladessotheyarefacing
fronttorear(Figure64).
5.Measurefromthetipofthefrontbladetotheat
surfaceandthetipoftherearbladetotheat
surface(Figure64orFigure65).
Note:Ifthefrontbladetipisnot1.6to7.9mm
(1/16to5/16inch)lowerthantherearbladetip,
continuetotheLevelingfromSidetoSide(page
46)procedure.
g294046
Figure64
MowerDeckswith2Blades
1.Bladesfronttorear3.Measurefromthetipofthe
bladetotheatsurface
here.
2.Outsidecuttingedges
g296914
Figure65
MowerDeckswith3Blades
1.Bladesfronttorear3.Measurefromthetipofthe
bladetotheatsurface
here.
2.Outsidecuttingedges
