CV

FormNo.3433-938RevA

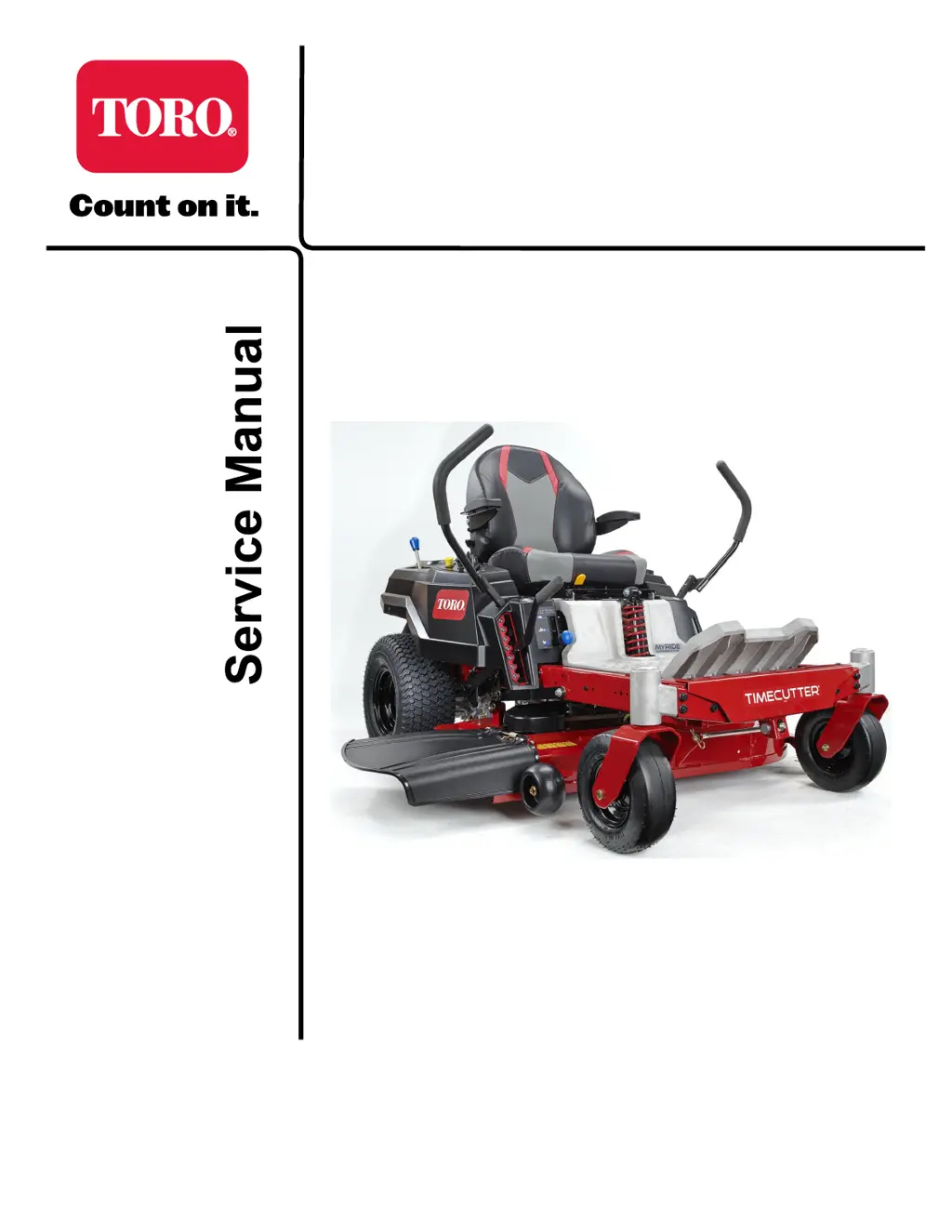

TIMECUTTER®ServiceManual

Published:June2020

©2020—TheToro®Company

8111LyndaleAvenueSouth

Bloomington,MN55420

OriginalInstructions(EN)

Contactusatwww.Toro.com.

AllRightsReserved

Table of Contents

Questions and Answers:

S
Steven KnightAug 15, 2025
Why Toro Lawn Mower engine does not start?
- A
  alexjonesAug 15, 2025
  Several factors can cause your Toro Lawn Mower engine to not start, start hard, or fail to keep running. These include an empty fuel tank (fill the fuel tank), incorrect throttle position (ensure the throttle control is in the fast position), a dirty fuel filter (replace the fuel filter), dirt, water, or stale fuel in the fuel system (clean and flush the fuel system), a dirty air cleaner (clean or replace the air cleaner element), or a malfunctioning seat switch (check and replace if faulty). Additionally, check for corroded, loose, or damaged electrical connections (clean and apply dielectric grease), a fouled or improperly gapped spark plug (adjust or replace the spark plug), a disconnected spark plug wire (check the connection), or a worn or damaged switch (test and replace).
K
Kimberly RamosAug 19, 2025
Why Toro Lawn Mower engine loses power?
- P
  Peter McgeeAug 19, 2025
  If your Toro Lawn Mower engine loses power, consider these potential causes: excessive engine load (reduce ground speed or raise the height-of-cut), a dirty air cleaner (clean or replace the air cleaner element), low oil level in the crankcase (add oil), plugged cooling fins and air passages (clean them), a plugged fuel tank vent system (inspect and repair), a dirty fuel filter (replace it), or dirt, water, or stale fuel in the fuel system (clean and flush the system).
R
Rachael PhillipsAug 21, 2025
How to fix uneven cutting height on Toro TIMECUTTER 75755TA?
- E
  Eileen WhiteAug 21, 2025
  An uneven cutting height with your Toro Lawn Mower may be due to dull blades (sharpen them), bent cutting blades (install new ones), an unlevel mower deck (level it from side-to-side and front-to-rear), a dirty mower underside (clean it), incorrect tire pressure (adjust it), or a bent blade spindle (replace it).
D
Derek StewartAug 25, 2025
What to do if Toro TIMECUTTER 75755TA Lawn Mower blades do not rotate?
- M
  Maria SmithAug 26, 2025
  If the blades on your Toro Lawn Mower do not rotate, check for a damaged, worn, loose, or broken mower deck belt (install a new one), a mower deck belt off the pulley (reinstall and check the idler pulley, arm, and spring), or a broken or missing idler spring (replace it).
S
Savannah SmithAug 27, 2025
What to do if my Toro TIMECUTTER 75755TA Lawn Mower does not drive?
- J
  John ArroyoAug 27, 2025
  If your Toro Lawn Mower isn't driving, check if the bypass rods are in the manual move position (place them in the drive position), if the drive belt is worn, loose, off a pulley, or broken (replace it), if the tensioner spring is broken or missing (replace the spring), or if the hydraulic oil level is low in the transaxle (add hydraulic oil).
A
Amy BautistaAug 31, 2025
What to do if my Toro TIMECUTTER 75755TA starter does not crank?
- H
  Heather LeeAug 31, 2025
  If the starter on your Toro Lawn Mower doesn't crank, it could be due to several reasons: the blade control switch (PTO) is engaged (move it to the disengaged position), the parking brake isn't engaged (move the motion control levers to the neutral lock/park position), the battery is dead (charge the battery), the electrical connections are corroded or loose (check for good contact), a switch is worn or damaged (test and replace), or the fuse is blown (replace the fuse).
T
tammiejamesSep 2, 2025
Why Toro TIMECUTTER 75755TA Lawn Mower vibrates abnormally?
- J
  Jeffrey CamposSep 2, 2025
  Abnormal vibration in your Toro Lawn Mower can be caused by several factors: bent or unbalanced cutting blade(s) (install new ones), a loose blade mounting bolt (tighten it), loose engine mounting bolts (tighten them), a loose engine pulley, idler pulley, or blade pulley (tighten the appropriate pulley and check idler springs), a damaged engine pulley (replace it), a bent blade spindle (replace it), or a loose or worn motor mount (check the mounting bolts).
K
Kimberly BeckerSep 5, 2025
Why Toro TIMECUTTER 75755TA Lawn Mower engine overheats?
- E
  emosleySep 6, 2025
  Your Toro Lawn Mower engine may overheat due to: excessive engine load (reduce ground speed or raise the height-of-cut), a low oil level in the crankcase (add oil), or plugged cooling fins and air passages (remove obstructions and clean).
C
cruzaliciaSep 8, 2025
Why Toro TIMECUTTER 75755TA Lawn Mower pulls to the left or right?
- M
  Michael MclaughlinSep 8, 2025
  If your Toro Lawn Mower pulls to the left or right (with levers fully forward), the tracking may need adjustment, the smart speed shift forks may not be correctly aligned on the motion control linkage (realign and install), or the tire pressure in the drive tires may be incorrect (adjust the tire pressure).

Toro TIMECUTTER 75755TA Specifications

General

Cutting Width	54 inches
Deck Material	10-gauge steel
Transmission	Hydrostatic
Spindle Material	Cast aluminum
Warranty	3 years
Blade Tip Speed	18, 500 fpm
Cutting Height	1.5 - 5 inches
Seat	18-inch high back

Summary

Chapter 1: Safety

Safety Instructions

General safety guidelines and warnings for operating and servicing the equipment.

Think Safety First

Emphasizes crucial safety precautions to prevent accidents and injuries.

Chapter 2: Specifications and Maintenance

Specifications

Lists technical specifications for various mower models, including engine, deck, and capacity.

Torque Specifications

Provides recommended torque values for fasteners based on size and grade.

Chapter 3: Troubleshooting

General Troubleshooting

Common problems and their possible causes and corrective actions for the mower.

Chapter 4: Engine

Engine Replacement

Step-by-step instructions for removing and installing the engine.

Chapter 5: Chassis

Chapter 6: Hydrostatic Drive System

Hydro Transaxle Drive Belt Replacement

Instructions for replacing the hydro transaxle drive belt.

Neutral Adjustment

Procedure for adjusting the neutral position of the motion control levers.

Hydro Transaxle Replacement

Instructions for removing and installing the hydro transaxle.

Chapter 7: Mower Deck System

42 inch Stamped and 42/50/54/60 Inch Fabricated Deck Replacement

Instructions for replacing different types of mower decks.

Chapter 8: Electrical System

General Information

Overview of the 12VDC electrical system and its components.

Service and Repairs

Provides exploded view diagrams for electrical assemblies.

PTO Clutch Replacement

Motion Control and Seat Switch Replacement
