CV
FormNo.3433-938RevA

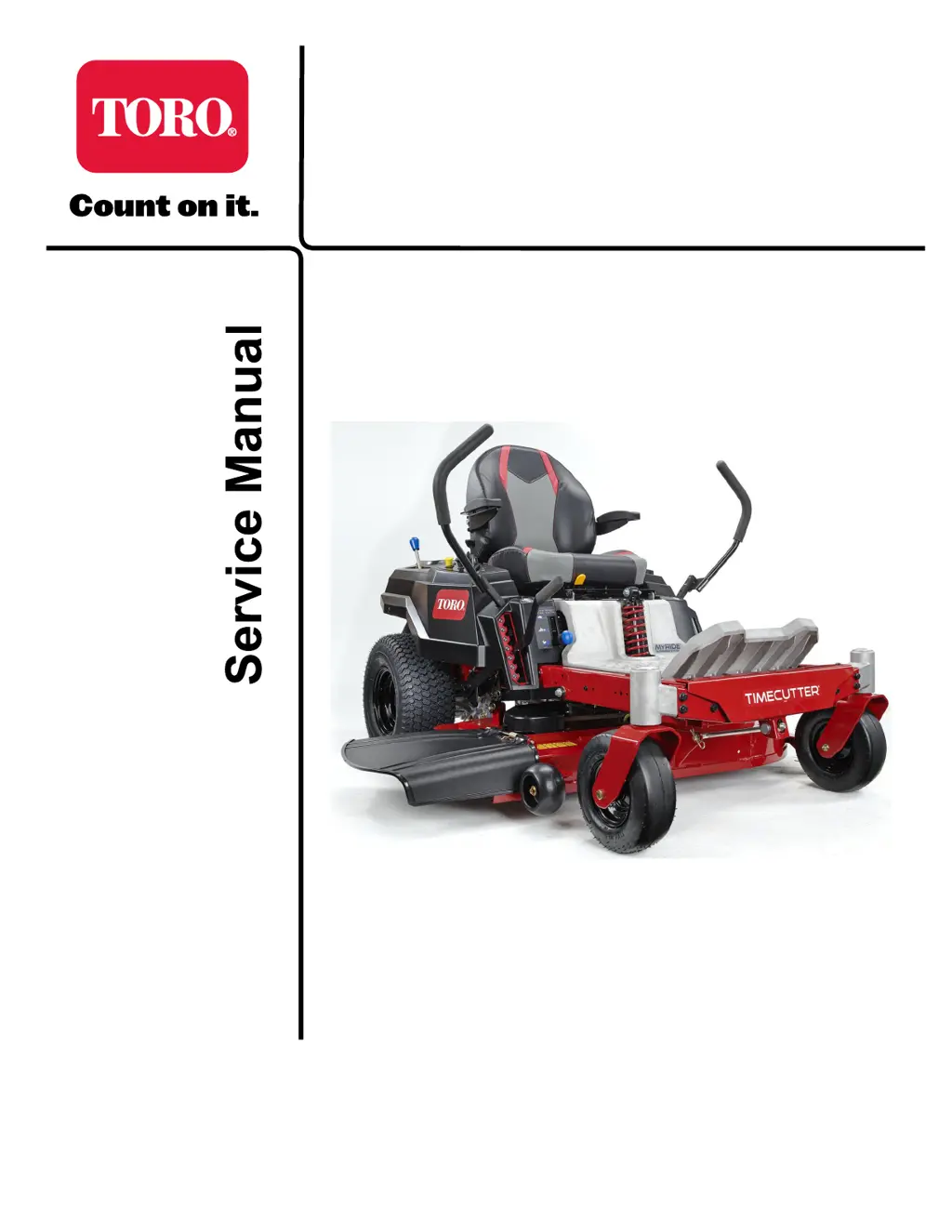

TIMECUTTER®ServiceManual
Published:June2020
©2020—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
OriginalInstructions(EN)
Contactusatwww.Toro.com.
AllRightsReserved

Table of Contents

Questions and Answers

  • A
    Anne WhiteAug 16, 2025
    Why Toro TIMECUTTER 75745TA engine does not start?
    • J
      Joshua CampbellAug 16, 2025
      Several factors can cause your Toro Lawn Mower engine to not start, start hard, or fail to keep running. These include an empty fuel tank (fill the fuel tank), incorrect throttle position (ensure the throttle control is in the fast position), a dirty fuel filter (replace the fuel filter), dirt, water, or stale fuel in the fuel system (clean and flush the fuel system), a dirty air cleaner (clean or replace the air cleaner element), or a malfunctioning seat switch (check and replace if faulty). Additionally, check for corroded, loose, or damaged electrical connections (clean and apply dielectric grease), a fouled or improperly gapped spark plug (adjust or replace the spark plug), a disconnected spark plug wire (check the connection), or a worn or damaged switch (test and replace).
  • S
    Steven WebbAug 19, 2025
    Why Toro TIMECUTTER 75745TA engine loses power?
    • G
      Gabriela AndrewsAug 19, 2025
      If your Toro Lawn Mower engine loses power, consider these potential causes: excessive engine load (reduce ground speed or raise the height-of-cut), a dirty air cleaner (clean or replace the air cleaner element), low oil level in the crankcase (add oil), plugged cooling fins and air passages (clean them), a plugged fuel tank vent system (inspect and repair), a dirty fuel filter (replace it), or dirt, water, or stale fuel in the fuel system (clean and flush the system).
  • R
    Rebecca BarnesAug 21, 2025
    How to fix uneven cutting height on Toro TIMECUTTER 75745TA?
    • C
      Christina BeardAug 21, 2025
      An uneven cutting height with your Toro Lawn Mower may be due to dull blades (sharpen them), bent cutting blades (install new ones), an unlevel mower deck (level it from side-to-side and front-to-rear), a dirty mower underside (clean it), incorrect tire pressure (adjust it), or a bent blade spindle (replace it).
  • B
    Bryan KnightAug 25, 2025
    What to do if Toro TIMECUTTER 75745TA Lawn Mower blades do not rotate?
    • M
      mjenkinsAug 25, 2025
      If the blades on your Toro Lawn Mower do not rotate, check for a damaged, worn, loose, or broken mower deck belt (install a new one), a mower deck belt off the pulley (reinstall and check the idler pulley, arm, and spring), or a broken or missing idler spring (replace it).
  • T
    Thomas RamosAug 27, 2025
    What to do if my Toro TIMECUTTER 75745TA does not drive?
    • J
      James GomezAug 27, 2025
      If your Toro Lawn Mower isn't driving, check if the bypass rods are in the manual move position (place them in the drive position), if the drive belt is worn, loose, off a pulley, or broken (replace it), if the tensioner spring is broken or missing (replace the spring), or if the hydraulic oil level is low in the transaxle (add hydraulic oil).
  • T
    tammyhendersonAug 31, 2025
    What to do if my Toro TIMECUTTER 75745TA Lawn Mower starter does not crank?
    • D
      Diana ThompsonAug 31, 2025
      If the starter on your Toro Lawn Mower doesn't crank, it could be due to several reasons: the blade control switch (PTO) is engaged (move it to the disengaged position), the parking brake isn't engaged (move the motion control levers to the neutral lock/park position), the battery is dead (charge the battery), the electrical connections are corroded or loose (check for good contact), a switch is worn or damaged (test and replace), or the fuse is blown (replace the fuse).
  • R
    Randy ThomasSep 3, 2025
    Why Toro TIMECUTTER 75745TA Lawn Mower vibrates abnormally?
    • A
      Anthony CookSep 3, 2025
      Abnormal vibration in your Toro Lawn Mower can be caused by several factors: bent or unbalanced cutting blade(s) (install new ones), a loose blade mounting bolt (tighten it), loose engine mounting bolts (tighten them), a loose engine pulley, idler pulley, or blade pulley (tighten the appropriate pulley and check idler springs), a damaged engine pulley (replace it), a bent blade spindle (replace it), or a loose or worn motor mount (check the mounting bolts).
  • M
    Monica FrenchSep 5, 2025
    Why Toro Lawn Mower engine overheats?
    • M
      Michael MitchellSep 5, 2025
      Your Toro Lawn Mower engine may overheat due to: excessive engine load (reduce ground speed or raise the height-of-cut), a low oil level in the crankcase (add oil), or plugged cooling fins and air passages (remove obstructions and clean).
  • X
    xsmithSep 9, 2025
    Why Toro TIMECUTTER 75745TA Lawn Mower pulls to the left or right?
    • W
      williamskendraSep 9, 2025
      If your Toro Lawn Mower pulls to the left or right (with levers fully forward), the tracking may need adjustment, the smart speed shift forks may not be correctly aligned on the motion control linkage (realign and install), or the tire pressure in the drive tires may be incorrect (adjust the tire pressure).
  • M
    Mrs. Christina JohnsonSep 12, 2025
    Why Toro Lawn Mower clutch does not engage?
    • S
      sanchezbarbaraSep 12, 2025
      If the clutch on your Toro Lawn Mower doesn't engage, it could be due to: low voltage supply at the clutch (check coil resistance, battery charge, charging system, and wiring; replace parts if needed), a damaged coil (replace the clutch), inadequate current supply (repair or replace the clutch lead wire or electrical system and clean connector contacts), an excessively large rotor/armature air gap (replace the clutch), or a faulty blade control switch (PTO) (replace the switch).

Summary

Chapter 1 Safety

Safety Instructions

Explains DANGER, WARNING, CAUTION symbols and basic safety rules.

Think Safety First

Provides safety guidelines for engine operation, fire prevention, and general work practices.

Chapter 2 Specifications and Maintenance

Specifications

Torque Specifications

Lists recommended torque values for various fastener types and sizes.

Chapter 3 Troubleshooting

General Troubleshooting

Offers solutions for common problems like engine not starting, loss of power, and vibration.

Chapter 4 Engine

Engine Replacement

Provides step-by-step instructions for removing and installing the engine.

Chapter 5 Chassis

MYRIDE Seat;Platform Replacement

Steering Control Box Replacement

Step-by-step guide for replacing the steering control box.

Motion Control Actuator Replacement

Instructions for removing and installing the motion control actuator.

Smart Speed Assembly Replacement

Deck Lift Assembly 3 Point Replacement

Chapter 6 Hydrostatic Drive System

Hydro Transaxle Drive Belt Replacement

Neutral Adjustment

Hydro Transaxle Replacement

Provides instructions for removing and installing the hydro transaxle.

Chapter 8 Electrical System

PTO Clutch Replacement

Step-by-step guide for replacing the PTO clutch.

Motion Control and Seat Switch Replacement

Ignition Switch Replacement

Starter Solenoid Replacement
