Operation
29
Fuel
T
anks

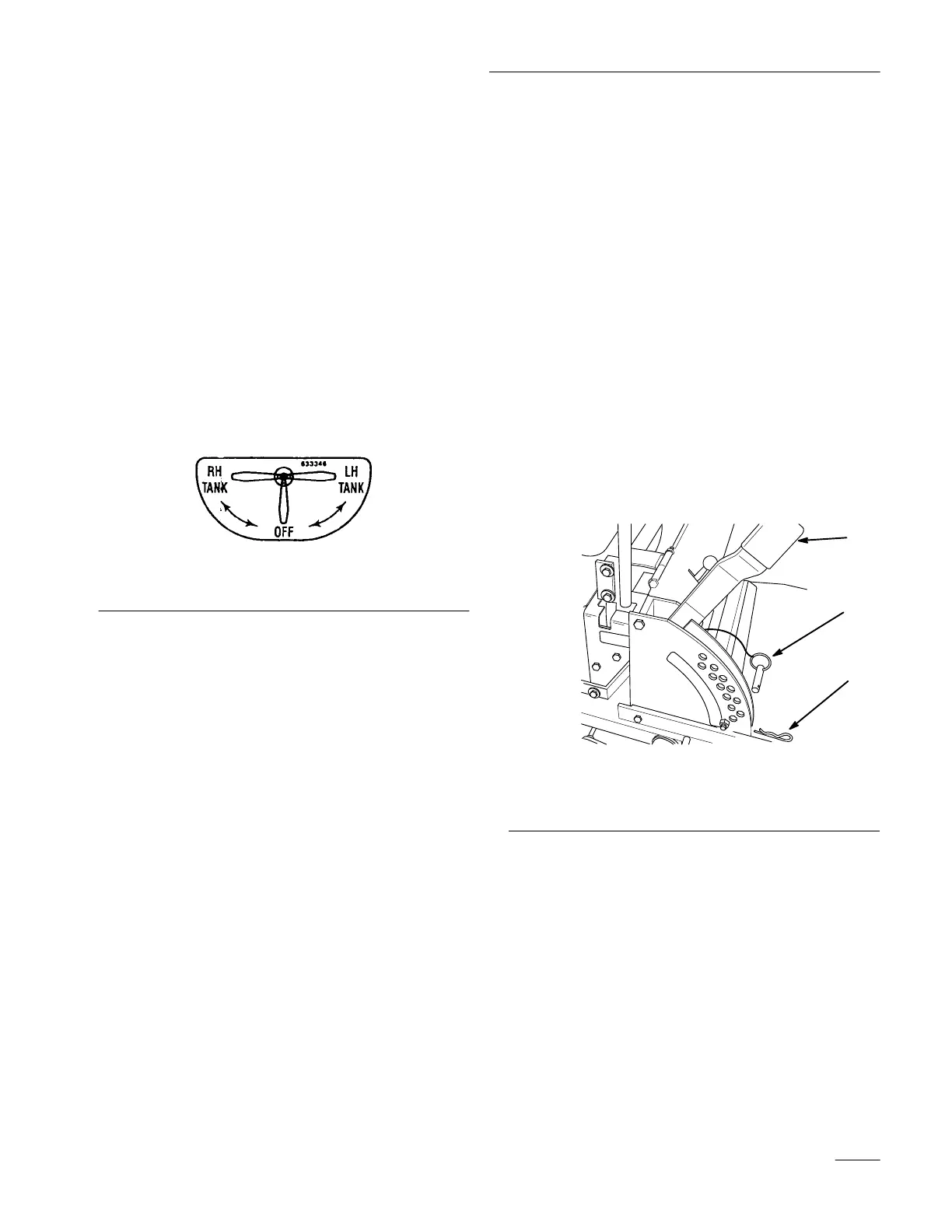

The unit has two fuel tanks, one located on the left
side and one on the right side. Each tank connects to
the fuel shut off valve in the control panel. From
there a common fuel line leads to the engine
(Fig. 10).
To use the right side fuel tank rotate the fuel shut off
valve 1/4 turn to the right from the off location. This
uses fuel from the right side tank only. When the right
fuel tank is empty, move the fuel shut off valve 1/4
turn to the left from the off position.
Close fuel shut off valve, on front panel before
transporting or storing machine.
Figure 10
1. Shut
of
f valve
Adjusting
Height-of-Cut
The height-of-cut is adjusted from 1-1/2” to 4-1/2”
(38 to 114 mm) in 1/4” (6 mm) increments by
relocating clevis pin in different hole locations.
1. Raise the height-of-cut lever to the transport
position (also the 4-1/2” (114 mm) cutting height
position) (Fig. 11).
2. To adjust, remove hairpin cotter and clevis pin
from height-of-cut bracket (Fig. 11).
3. Select hole in height-of-cut bracket
corresponding to the height-of-cut desired.
(Fig. 11).
4. Secure clevis pin with hairpin cotter (Fig. 11).
5. Lower height-of-cut lever onto pin (Fig. 11).
1
3
2
Figure 1
1
1. Height
of cut lever
2.
Clevis Pin
3.
Hairpin Cotter
