Removing the Cutting Unit (continued)
G404931

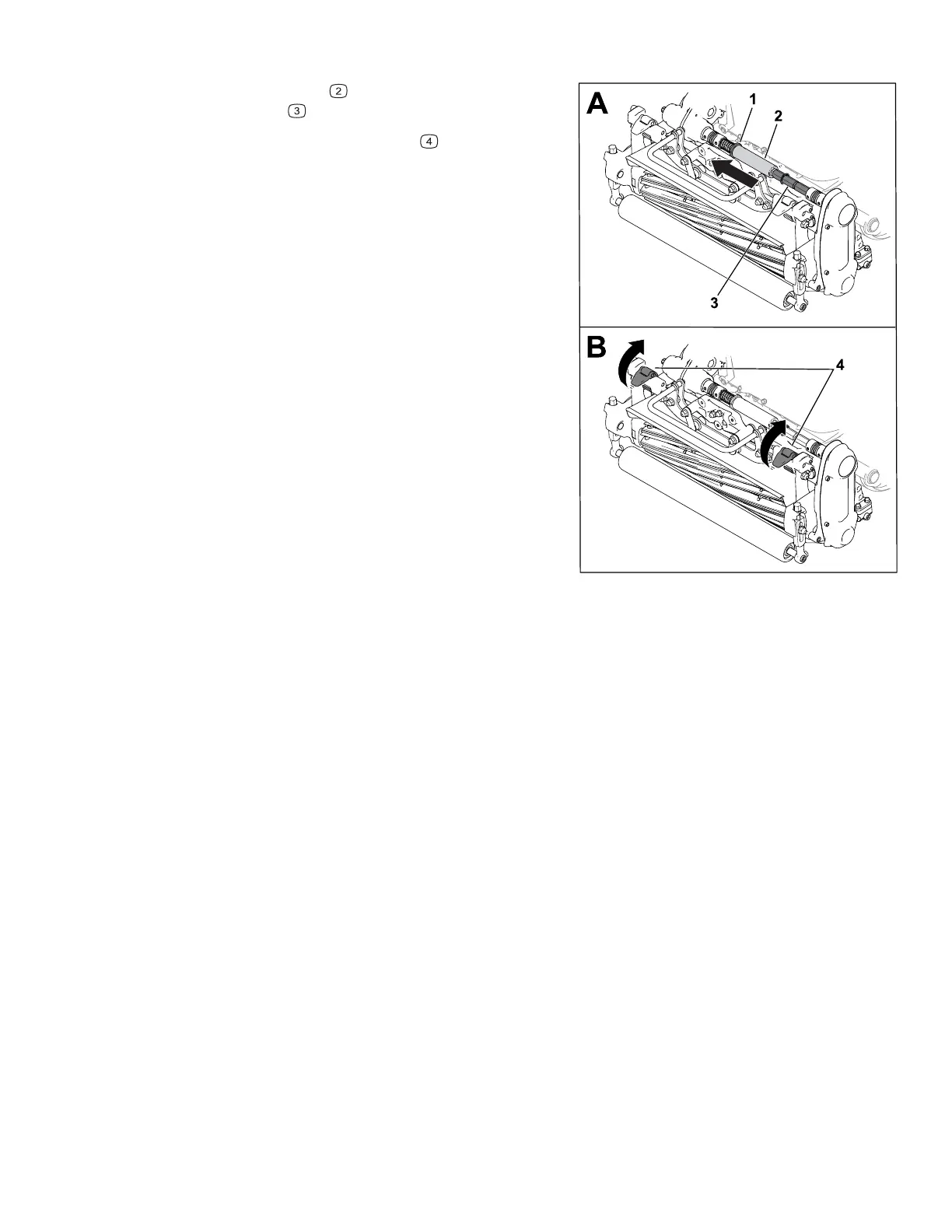

4. Slide the hex tube off of the cutting-unit
coupler shaft
.
5. Move the suspension latches
up to release
the cutting unit from the machine.
6. Remove the cutting unit from the frame.
Backlapping Information
To backlap the cutting unit, use the Access Backlap Kit (Model 139-4342); refer to the
operating instructions in the kit Installation Instructions. Contact your authorized Toro
distributor to acquire this kit.
