Operator Platform (continued)

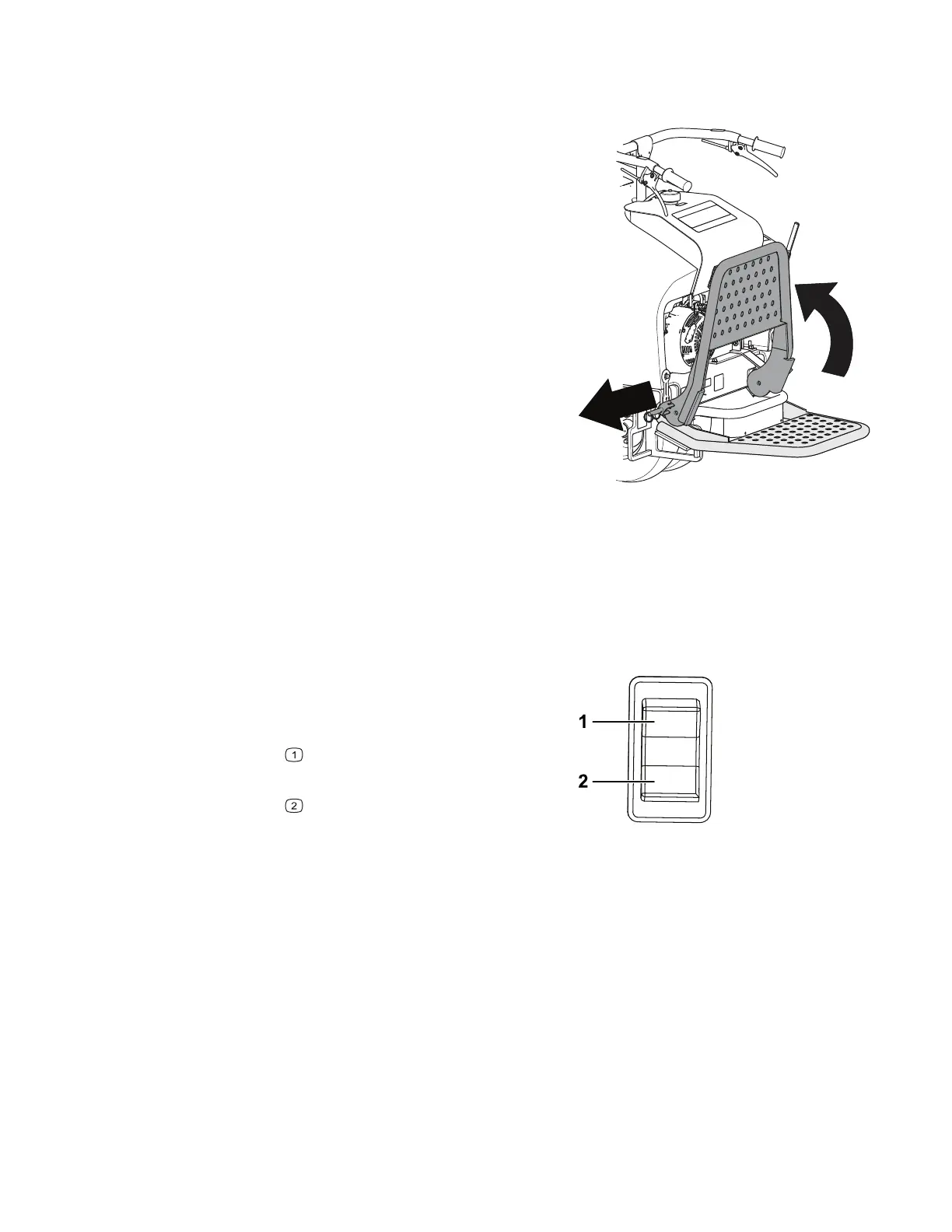

Raising the Platform
G384423
1. Pull out the latch pin and raise the platform.
2. Release the latch pin to lock the platform in
place.
Operating the Hopper
Hopper capacity: 1134 kg (2,500 lb)
Do not exceed the load capacity of the machine. This machine normally operates on
uneven, unpaved, bumpy, and/or inclined surfaces—adjust the load accordingly.
G375674
1. Position the machine where you intend to
dump the load.
2. Dump the hopper by pushing the top of the
dump switch
.
3. Lower the hopper by pushing the bottom of the
dump switch
.
Note: If you hold the bottom of the switch for 1
second, the hopper fully lowers automatically.
After Operation
After Operation Safety
General Safety
• Engage the parking brake, shut off the engine, remove the key (if applicable), and wait
for all movement to stop before adjusting, cleaning, or repairing the machine.
