Using the Cylinder Lock
Installing the Cylinder Lock

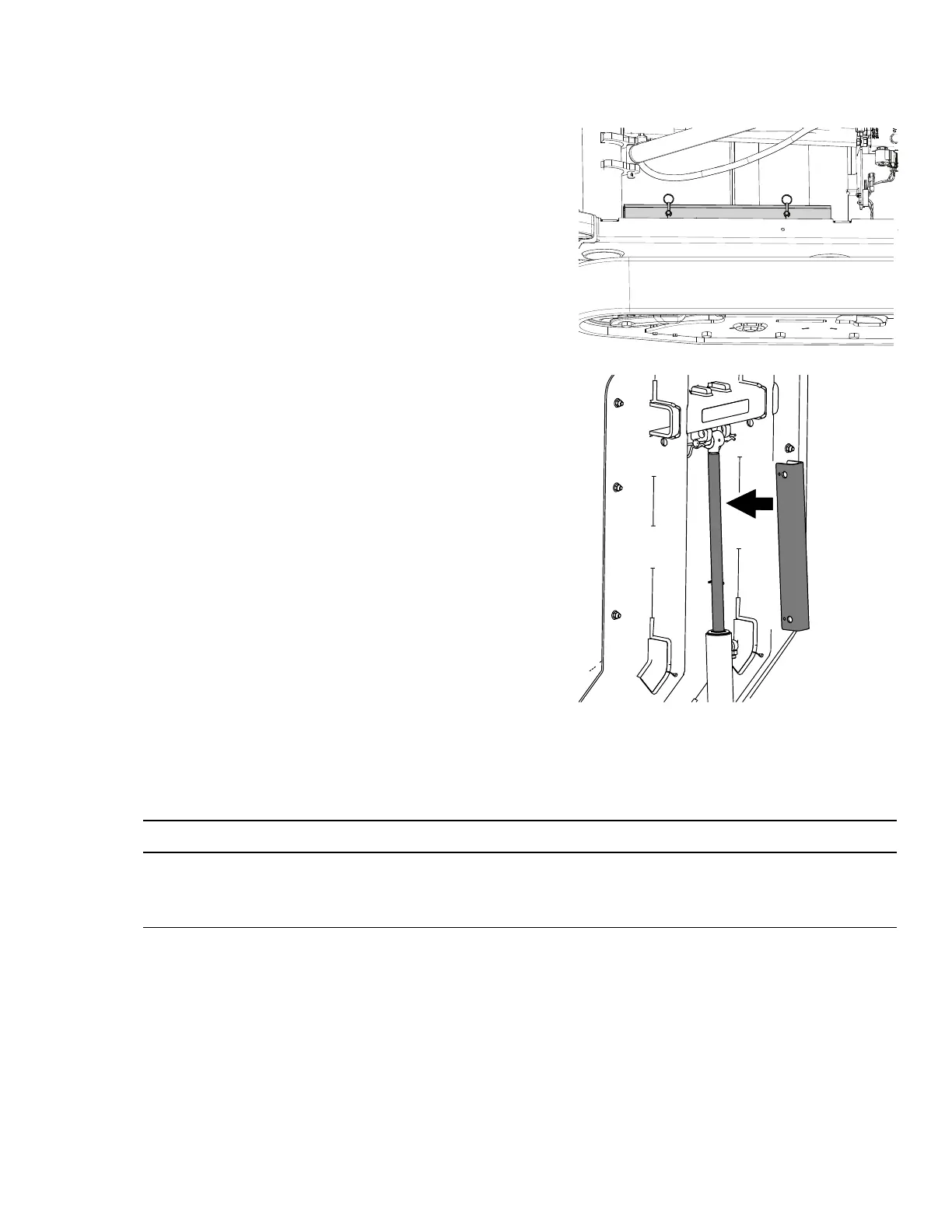

G375954
1. Park the machine on a level surface, move the
motion-control levers to the N
EUTRAL-LOCK
position, engage the parking brake, and fully
raise the hopper.
2. Remove the 2 cotterless pins securing the
cylinder lock to the machine.
G324856
3. Slide the cylinder lock over the lift-cylinder rod
and secure with the cotterless pins.
Removing and Storing the Cylinder Lock
IMPORTANT
Remove the cylinder lock from the lift-cylinder rod and fully secure it in the storage
position before operating the machine.
Maintenance: Pre-Maintenance Procedures Page 5–5 3451-705A
