Drive Belt (continued)
7. Remove the 2 bolts and 2 nuts and loosen the 2 set screws on the coupler. Remove the
gear pump from the pump mount.
Note: You do not need to remove the fittings from the pump.

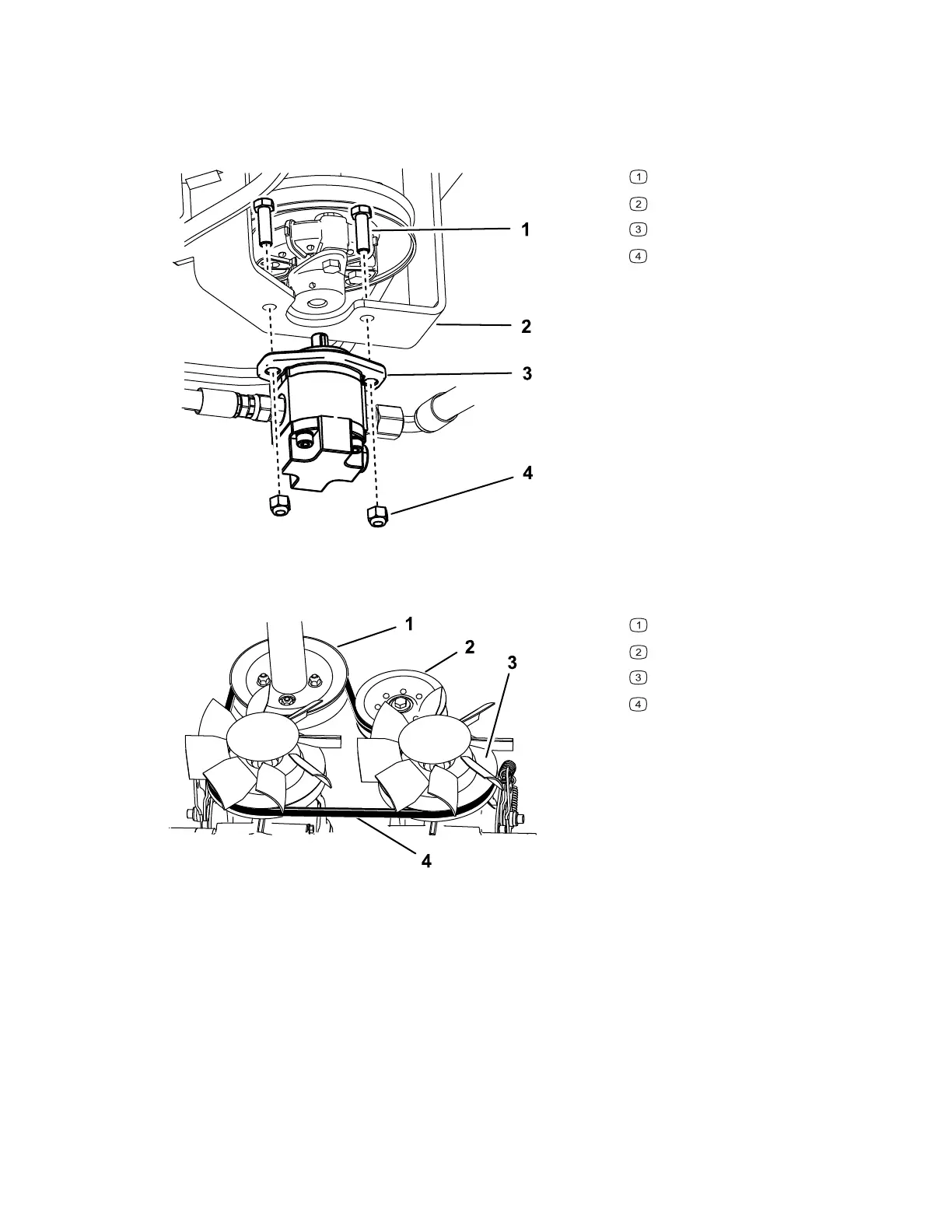

G189559
Bolt (2)
Pump mount
Gear pump
Nut (2)
8. Remove the drive belt from the engine pulley and 2 transmission pulleys.
G189571
Engine pulley
Idler pulley
Transmission pulley (2)
Belt
9. Route the new belt around the engine pulley and 2 transmission pulleys.
10. Install the gear pump.
11. Install the extension spring.
12. Install the fuel tank.
13. Raise the cushion.
3451-705A Page 5–20 Maintenance: Drive System Maintenance
